To remove

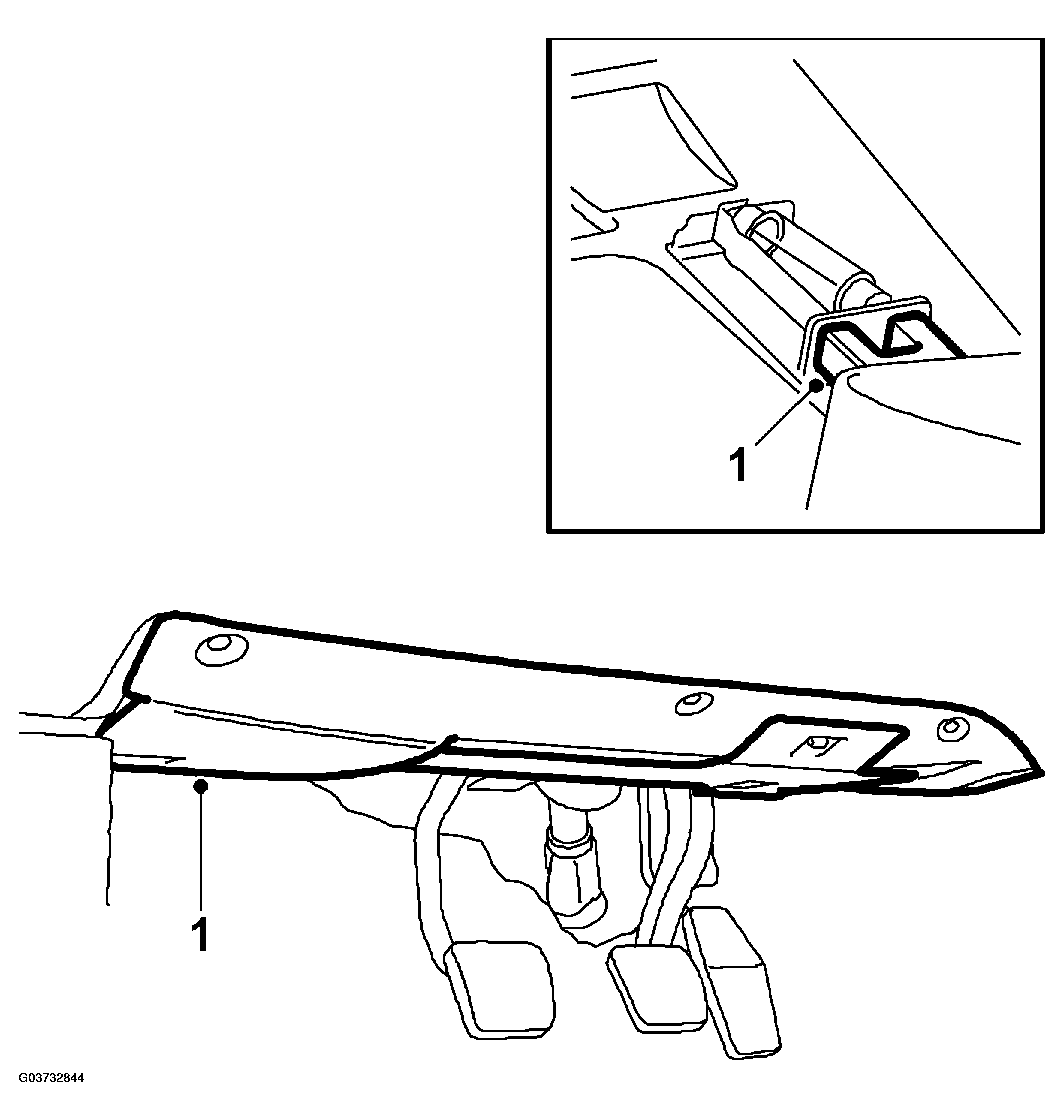

  1. Remove the pedal bracket cover by undoing the 3 screws. Tilt down the cover and carefully pull it out. Pay attention to the cable for the diagnostic tool data link connector and the lighting.
    Fig 1: Illustration For Step 1
    G03732844Courtesy of SAAB-SCANIA OF AMERICA, INC.

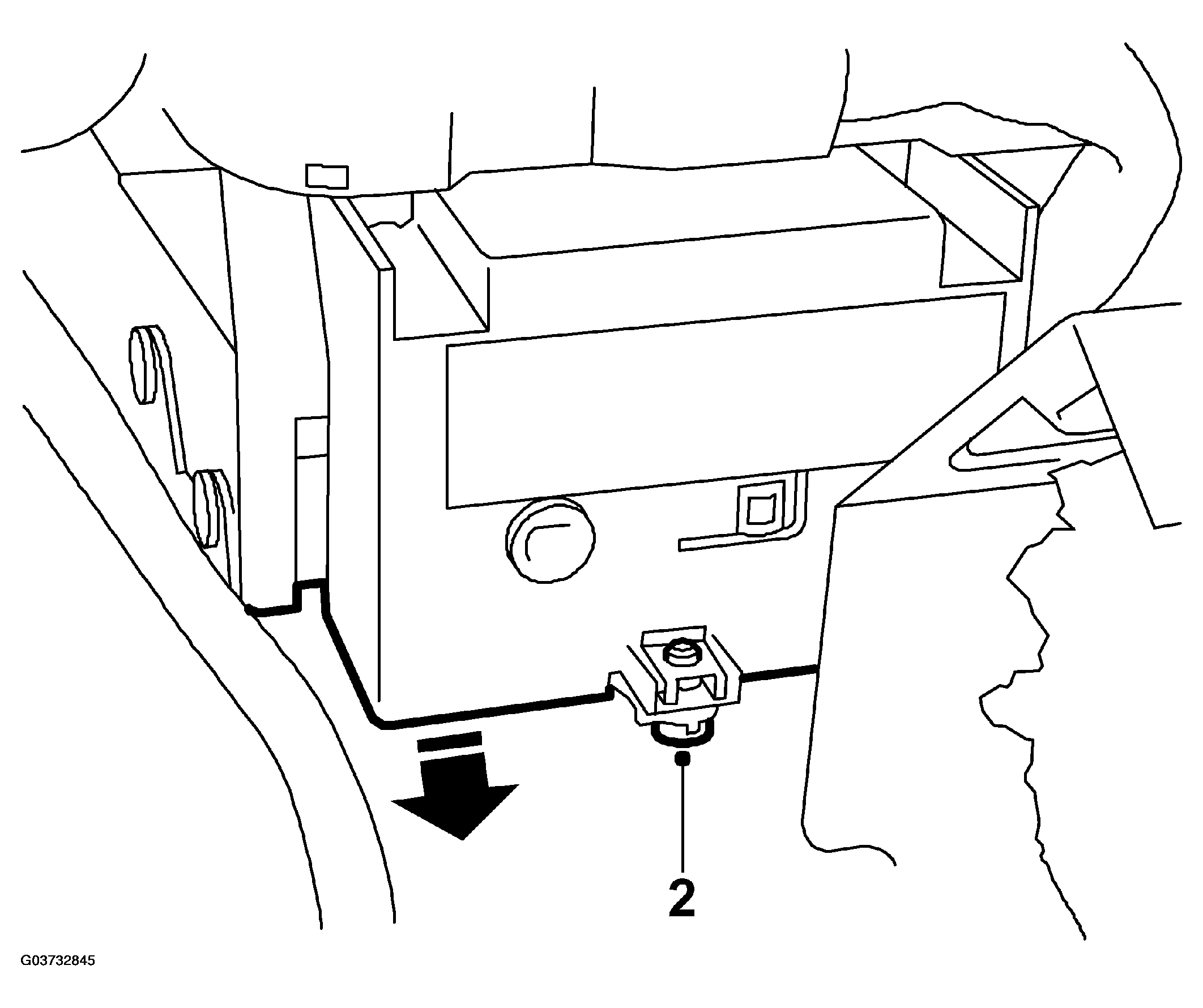

  2. Undo the screw on the relay box.
    Fig 2: Illustration For Step 2
    G03732845Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Tilt down the relay holder.

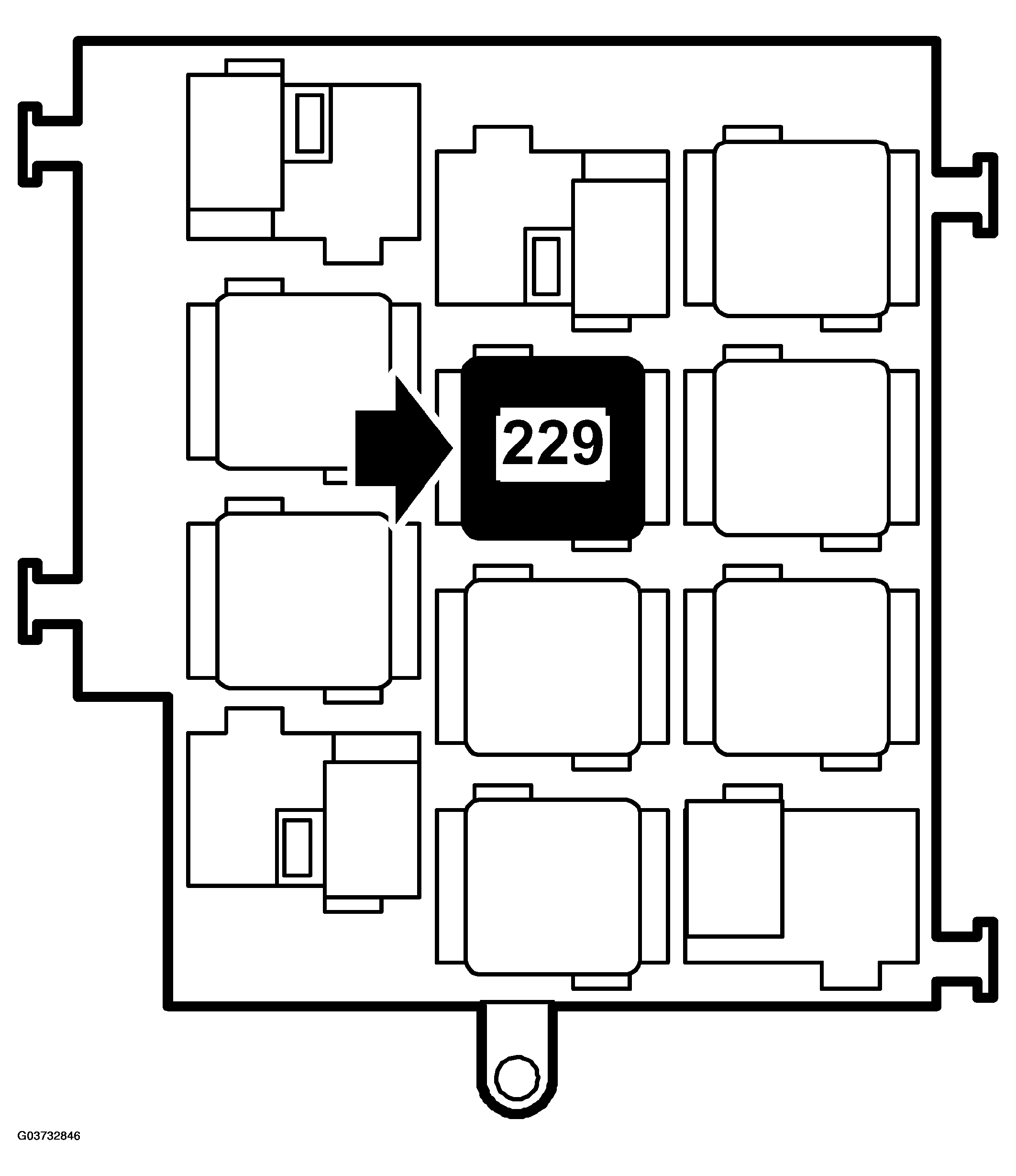

  4. Carefully open the catch and remove the relay.
    Fig 3: Removing Relay
    G03732846Courtesy of SAAB-SCANIA OF AMERICA, INC.
