Fuel pressure regulator

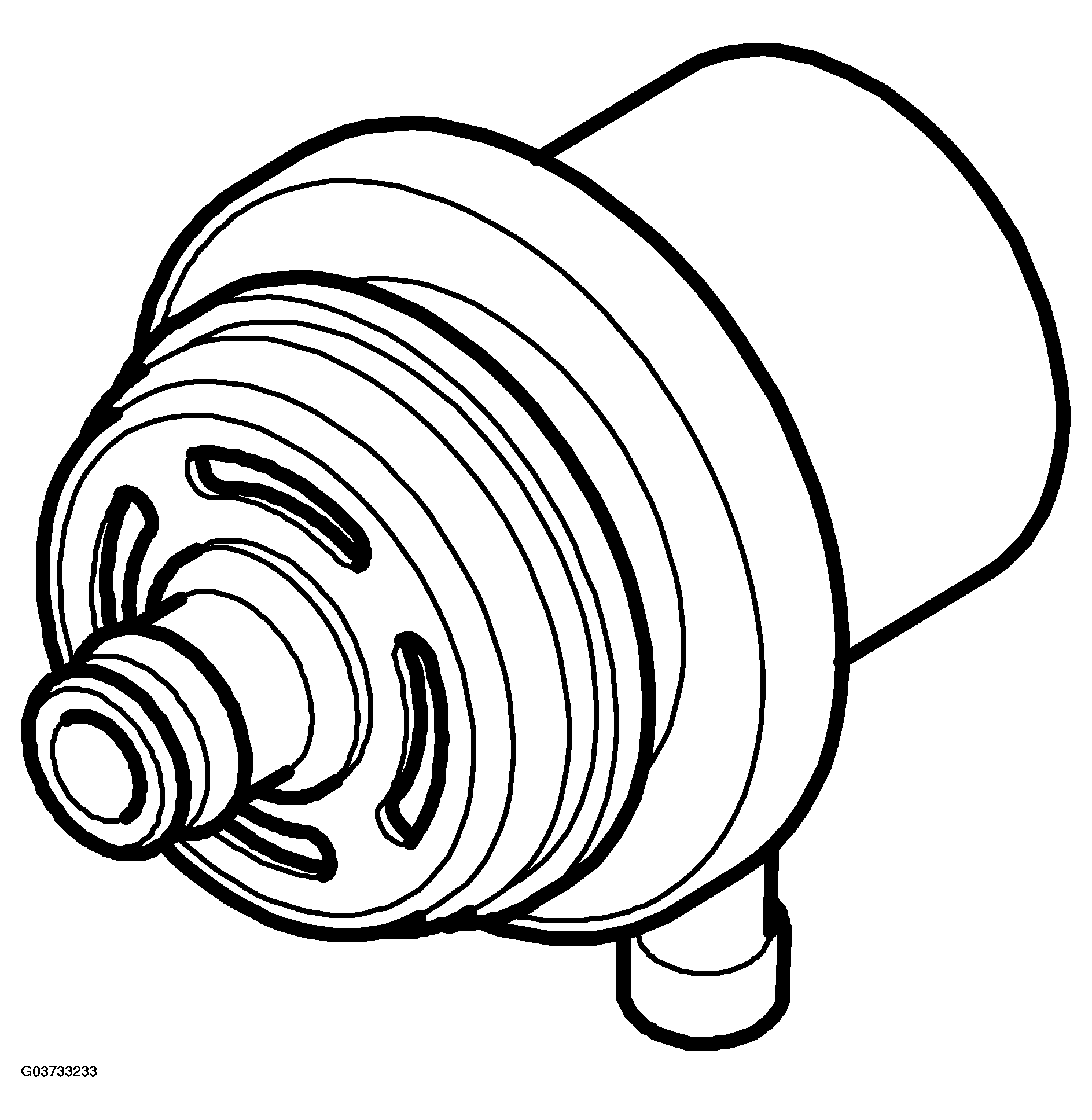

Fig 1: Identifying Fuel Pressure Regulator
G03733233Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE REGULATOR DESCRIPTION

Fuel pressure bar 3.0+/-0.1
Pressure, air side   Connected to intake manifold
