DTC P1445: Canister Close Valve Circuit. Short to B+.: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

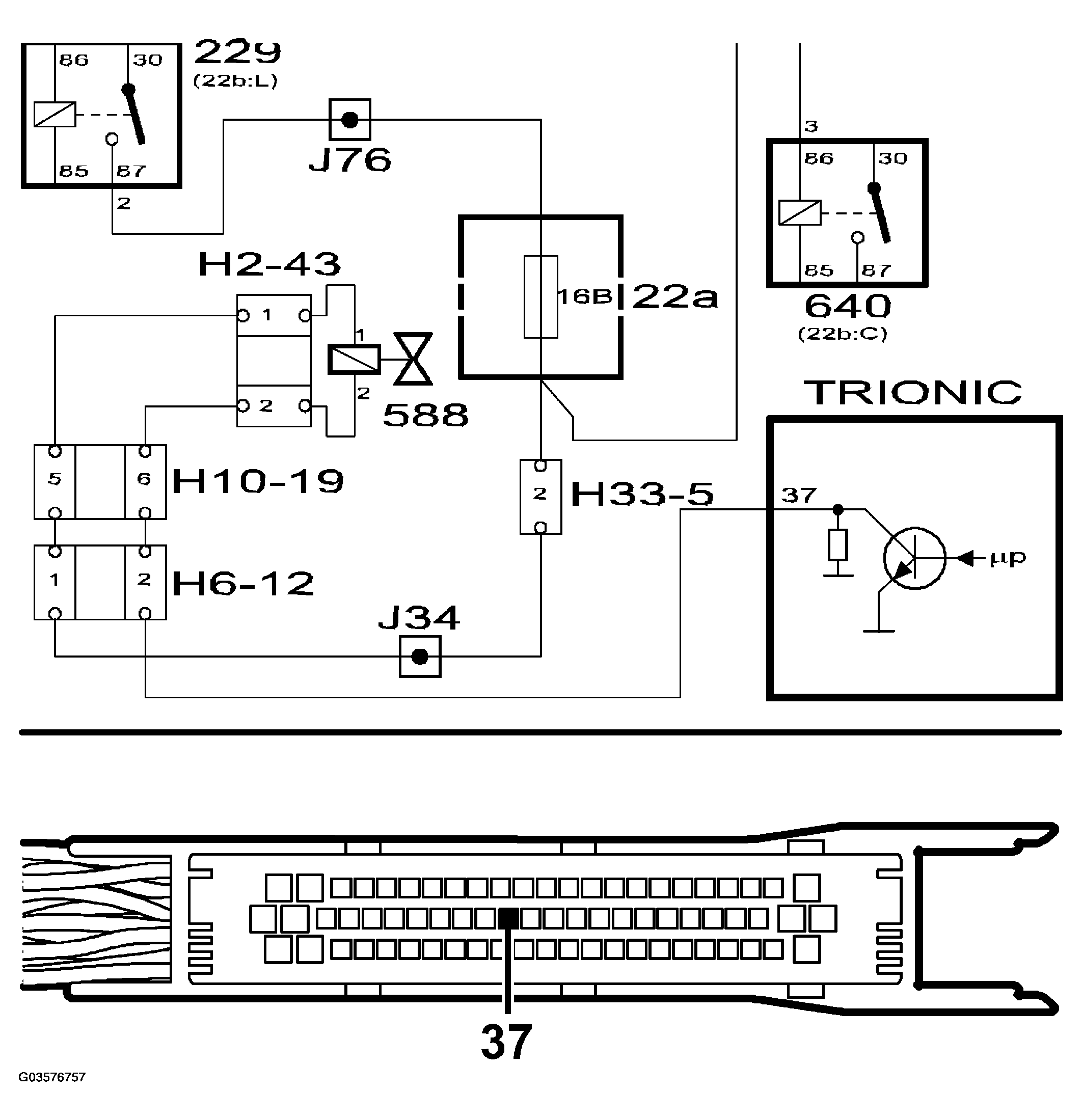

Fig 1: Canister Close Valve Circuit Diagram - Short To B+
G03576757Courtesy of SAAB-SCANIA OF AMERICA, INC.
