DTC P1670: Relay of limp-home function, open circuit/short circuit to ground: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

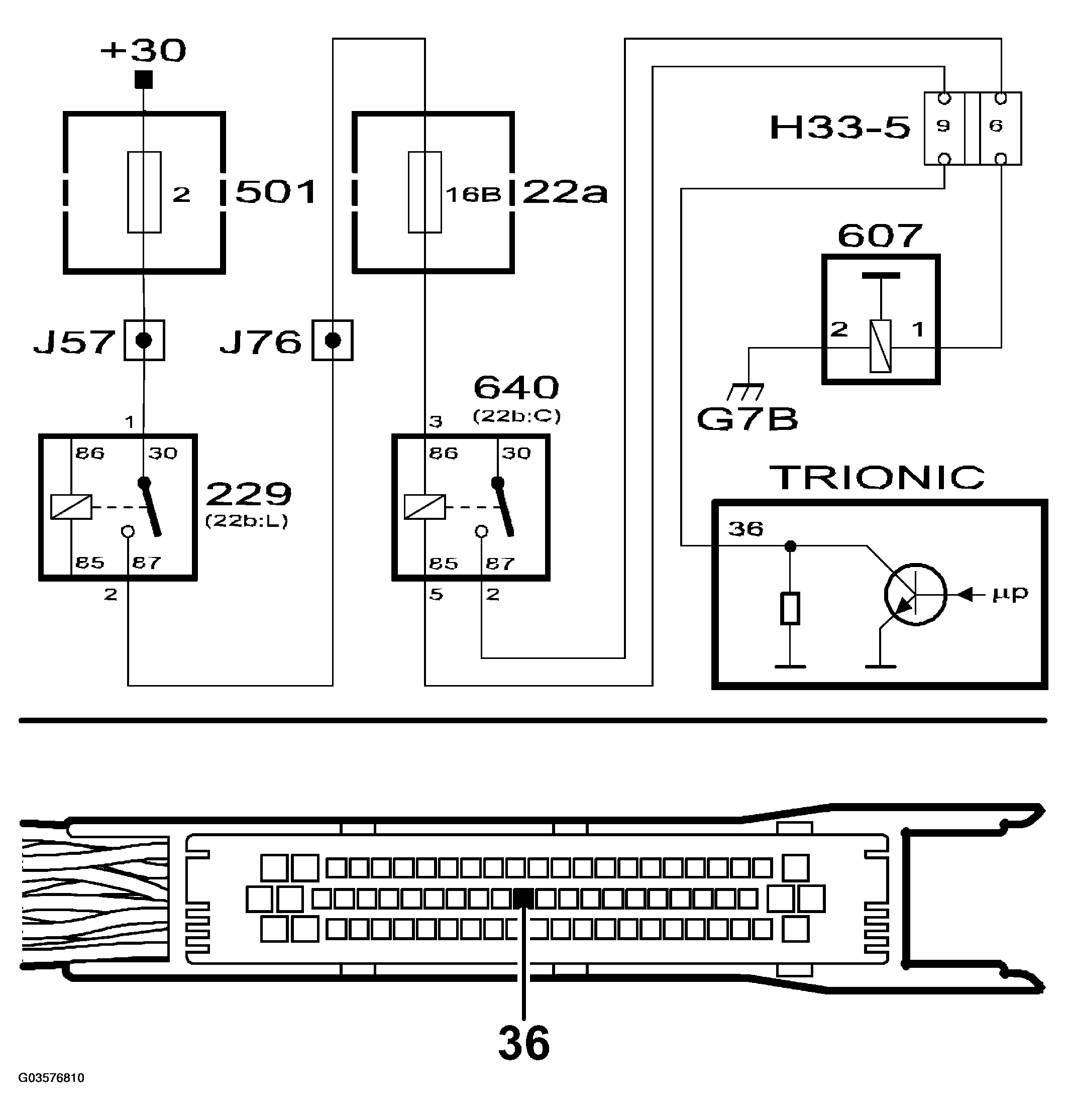

Fig 1: Circuit Diagram - Relay Of Limp-Home Function, Open Circuit/Short Circuit To Ground

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The relay/electrical circuit that activates the throttle's limp-home function is faulty.
