TCS/ESP function lamp: Notes

Fig 1: Identifying TCS/ESP Function Lamp Communication Line
G03745597Courtesy of SAAB-SCANIA OF AMERICA, INC.

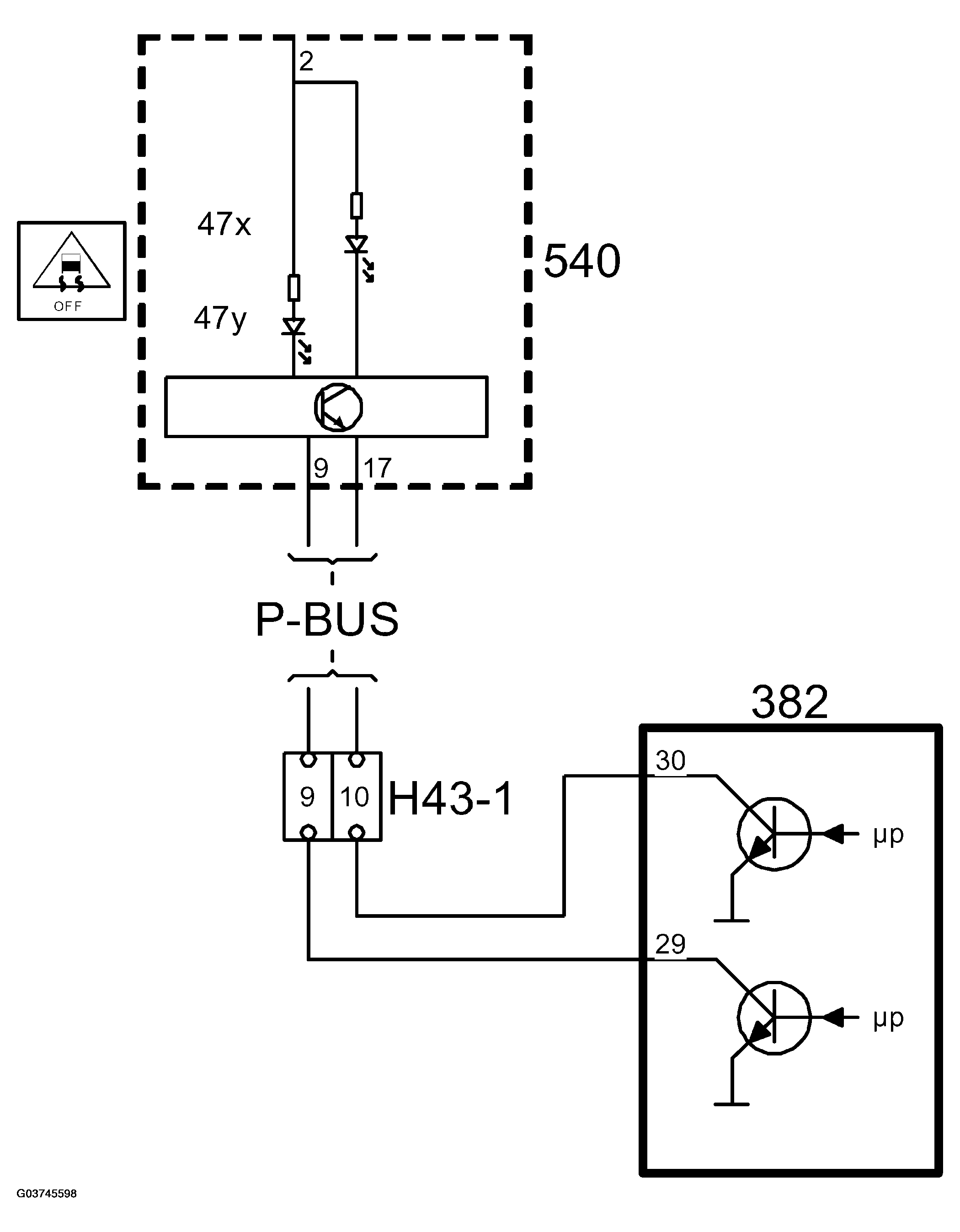

Fig 2: TCS/ESP Function Lamp - Circuit Diagram
G03745598Courtesy of SAAB-SCANIA OF AMERICA, INC.

The TCS lamp is situated on the left-hand side of the main instrument unit (in the tachometer). It comes on when the TCS function is active.
