DTC P0453: EVAP Tank Pressure Sensor Circuit - Open/Short To B+: Notes

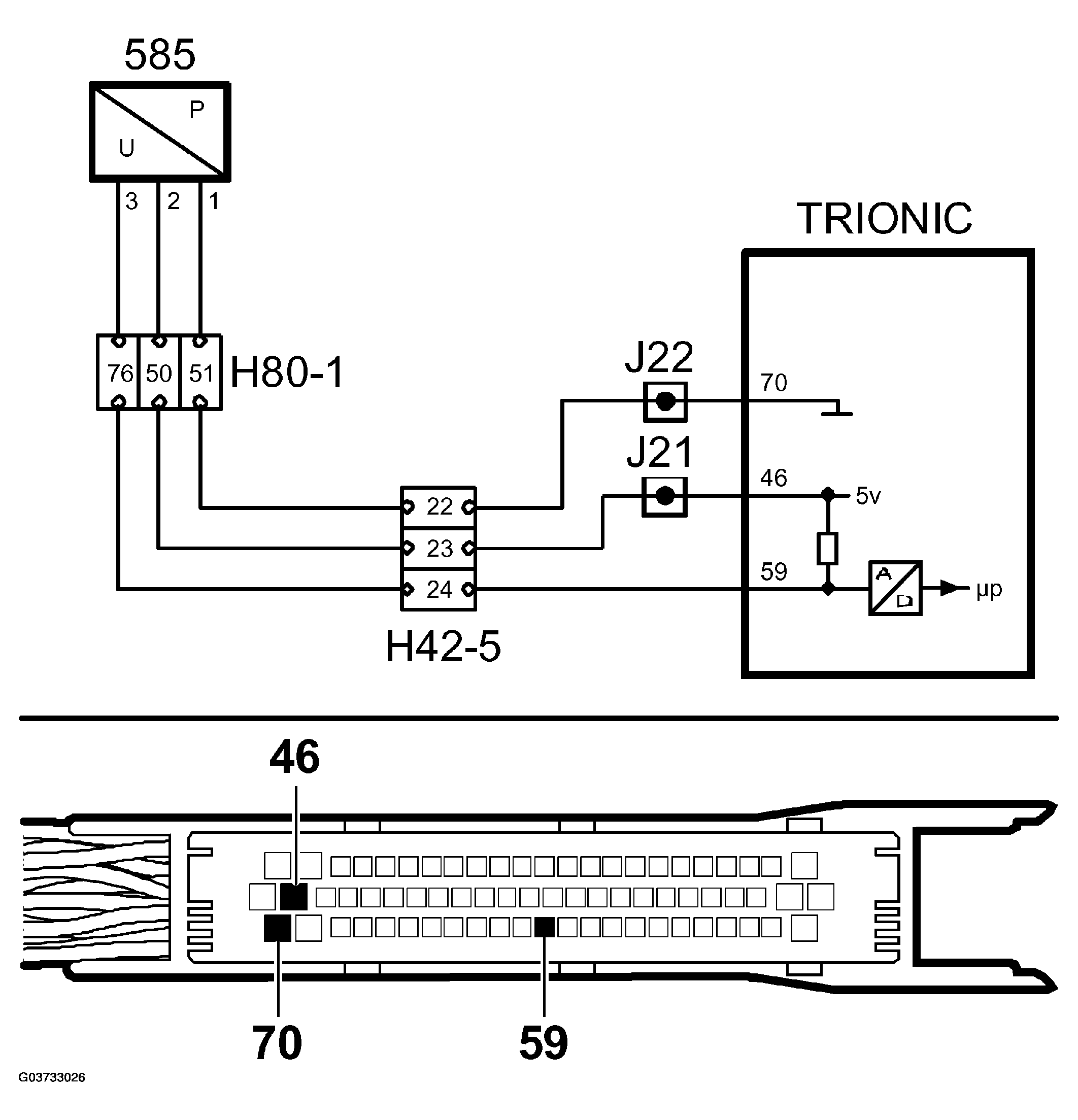

Fig 1: P0453 EVAP Tank Pressure Sensor - Circuit Diagram
G03733026Courtesy of SAAB-SCANIA OF AMERICA, INC.
