DTC P1141: O2S Heater Circuit Current Too Low - Sensor 2: Notes

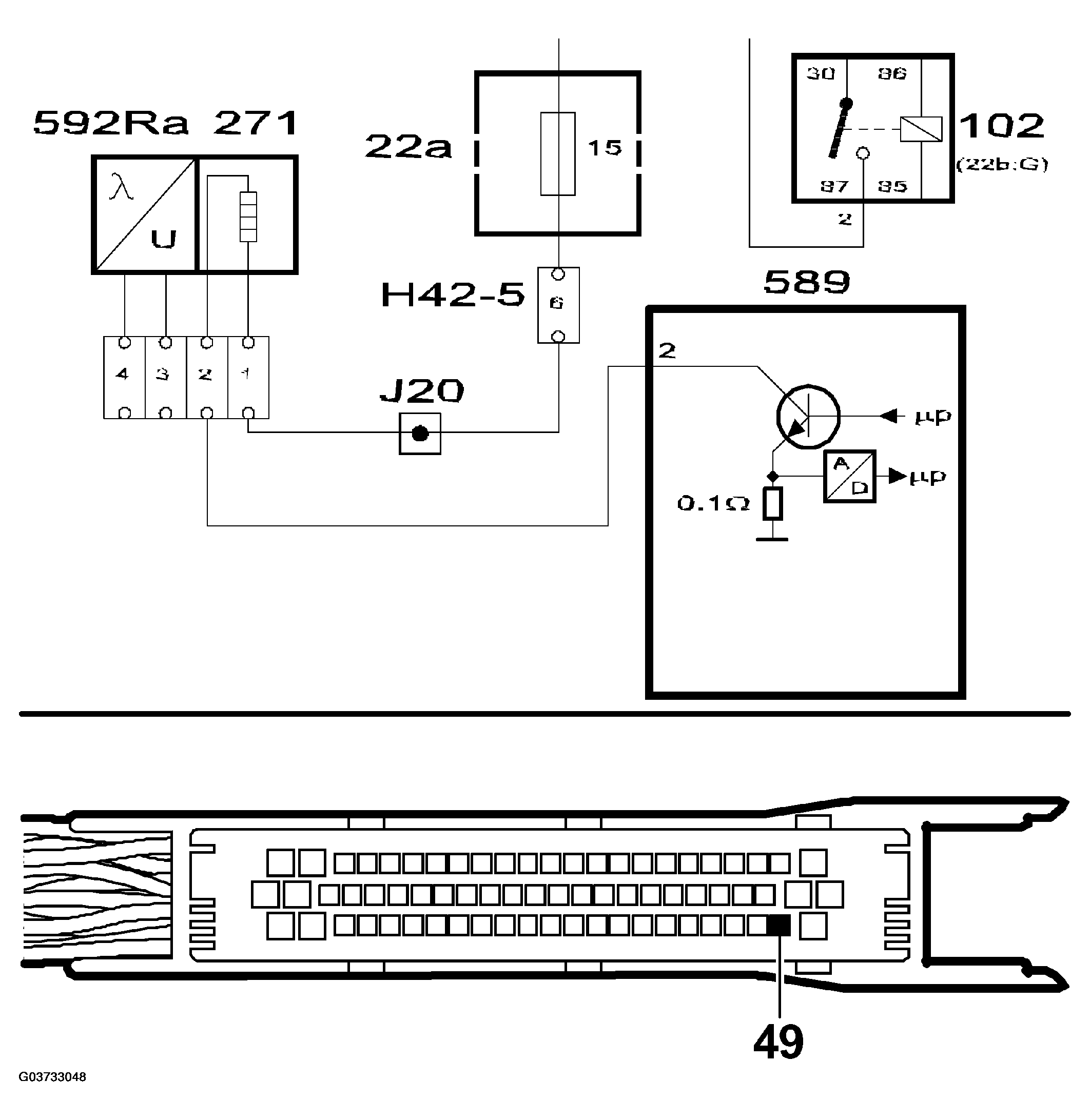

Fig 1: O2S Heater Circuit Current Too Low Sensor 2 Circuit Diagram
G03733048Courtesy of SAAB-SCANIA OF AMERICA, INC.
