DTC P1261: Throttle Binding.: Notes

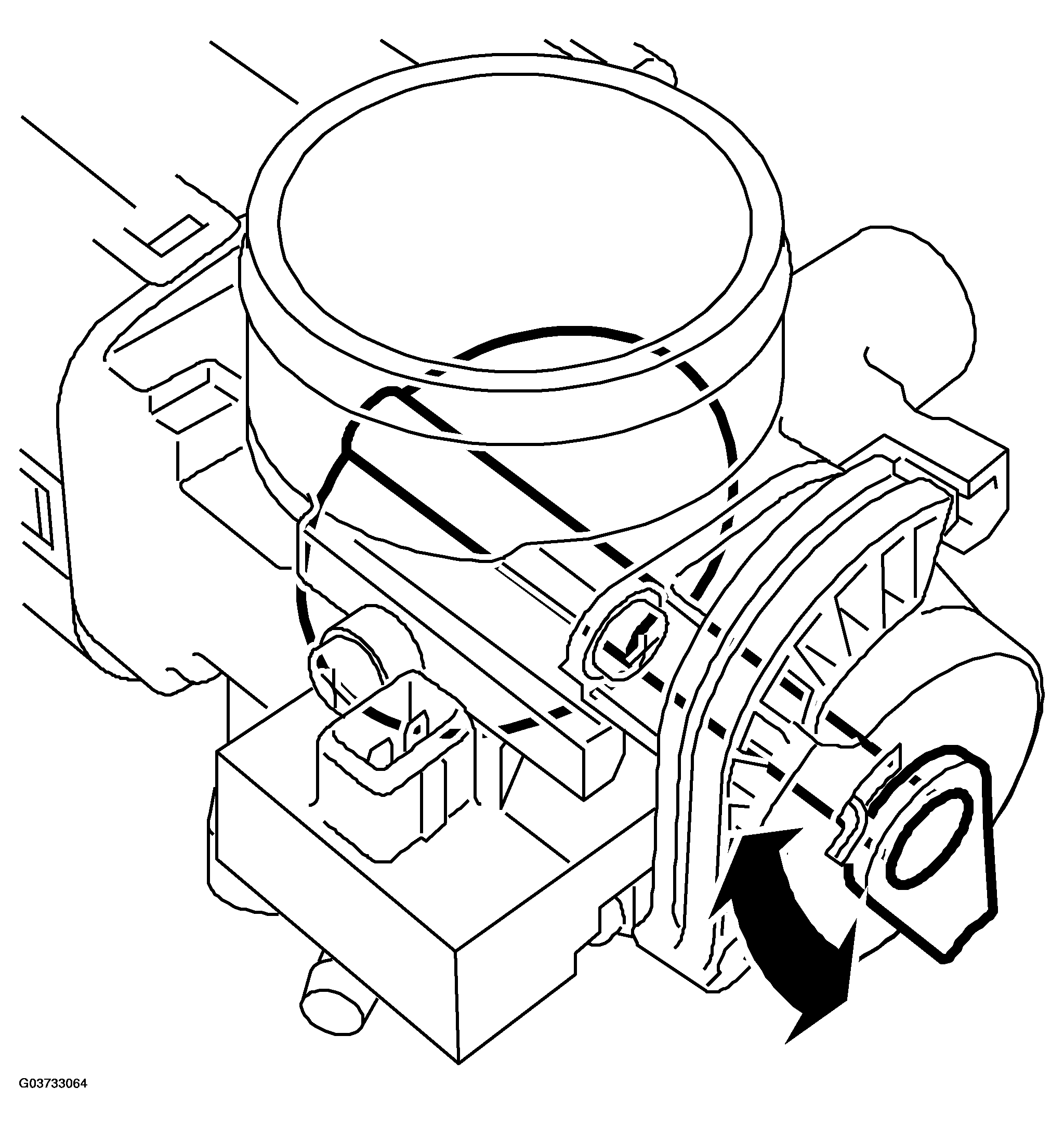

Fig 1: Identifying P1261 Throttle Binding
G03733064Courtesy of SAAB-SCANIA OF AMERICA, INC.

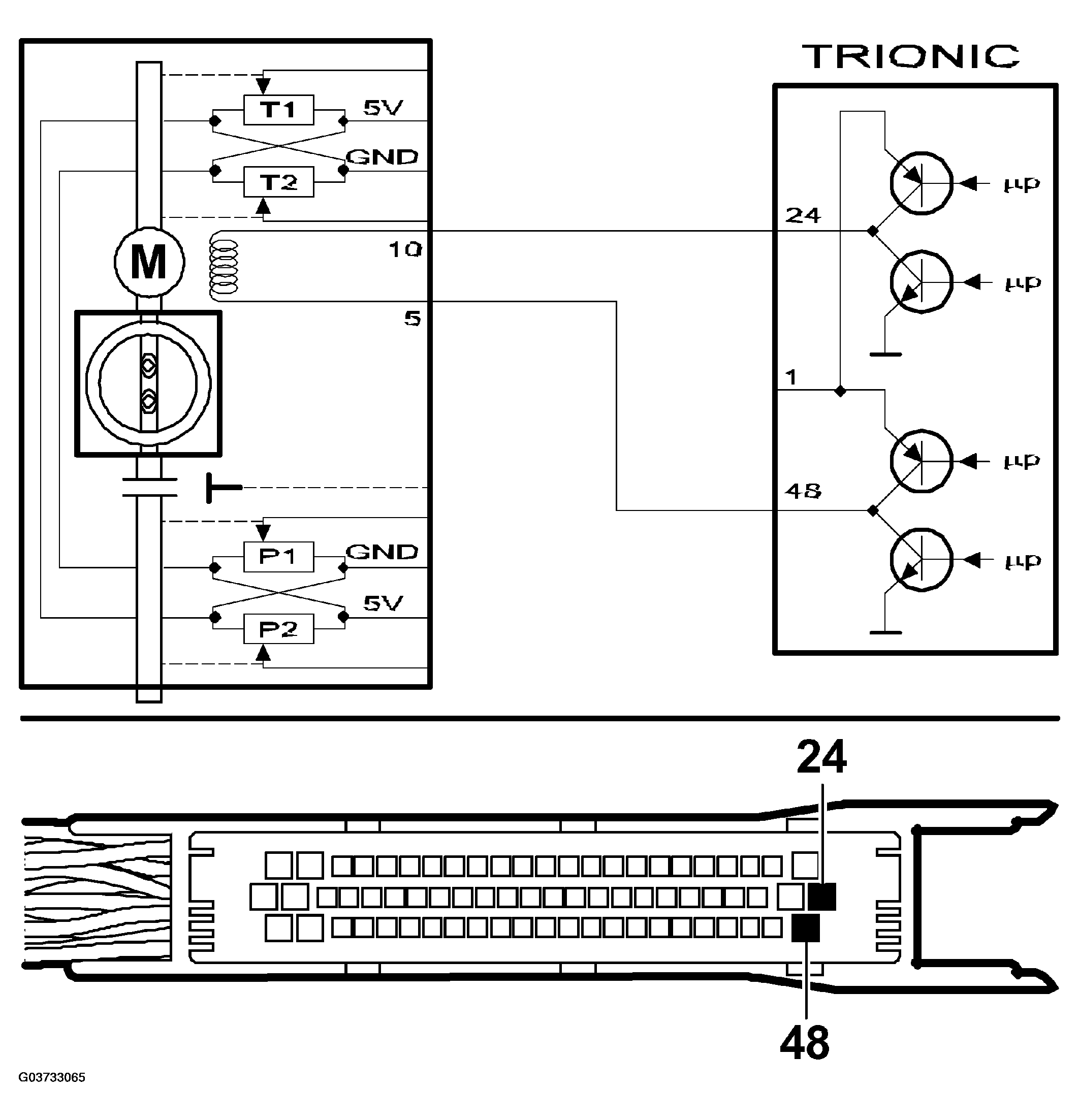

Fig 2: P1261 Throttle Binding Circuit Diagram
G03733065Courtesy of SAAB-SCANIA OF AMERICA, INC.
NOTE: Throttle is in limp-home mode due to other DTC.
