To fit

  1. Fit the engine pad.

    Tightening torque: 47 Nm (35 lbf ft)  .

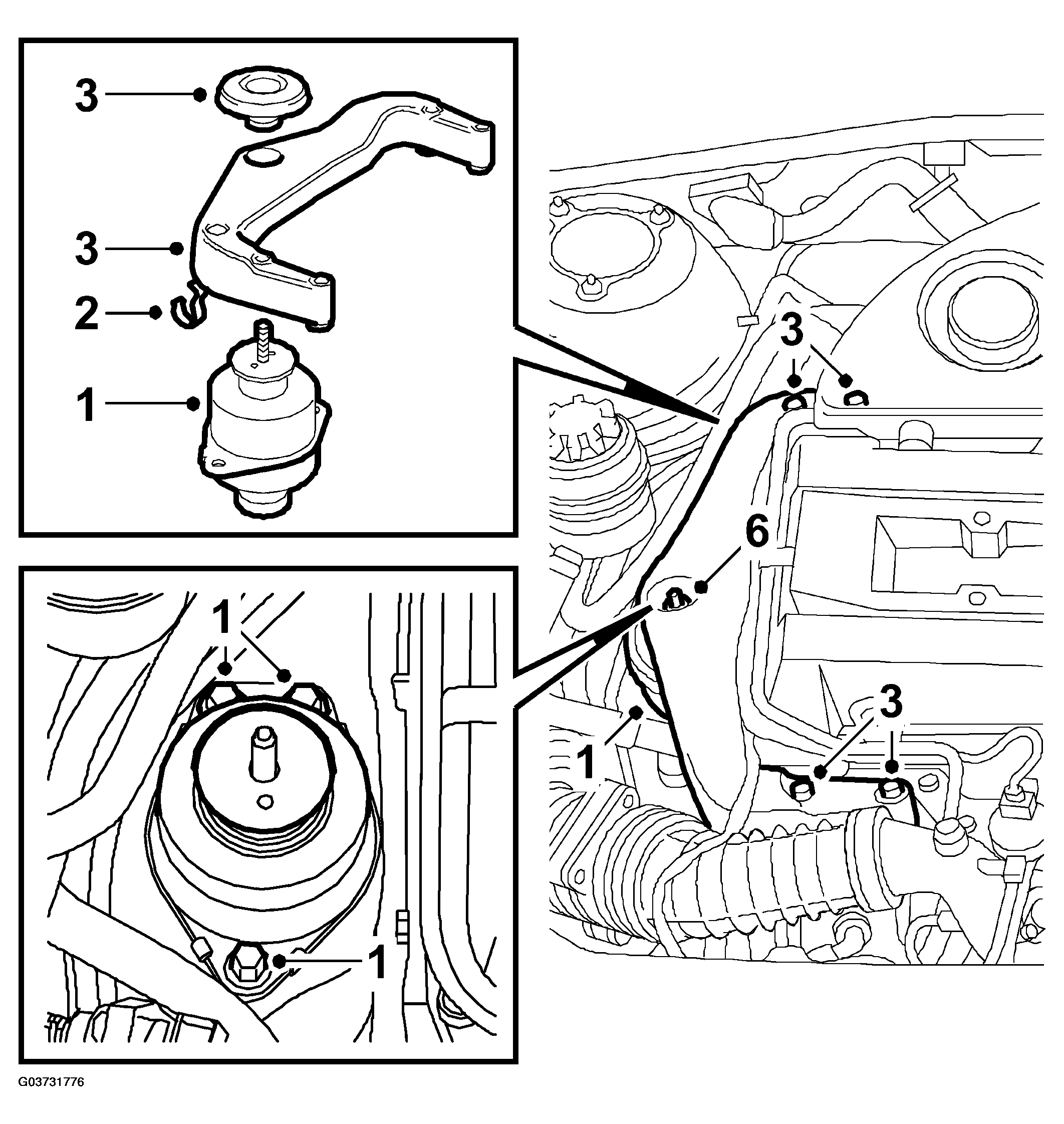

    Fig 1: Illustration For Steps 1, 2, 3 & 6
    G03731776Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Secure the power steering hose with the clip
  3. Tighten the bolts and nuts on the engine mounting to torque

    Tightening torque 47 Nm (36 lbf ft)  .

  4. Lower the engine and remove the lifting beam
  5. Move the engine back and forth sideways until it is balanced and not under strain.
  6. Tighten the engine mounting nuts.

    Tightening torque 105 Nm (78 lbf ft)
