DTC P1251: Throttle Motor. Full PWM in Closing Direction. NOTE. May set if Mechanism is not Reseted.: Notes

WARNING: This page is about a different car, the 2003 Saab 9-3 and 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

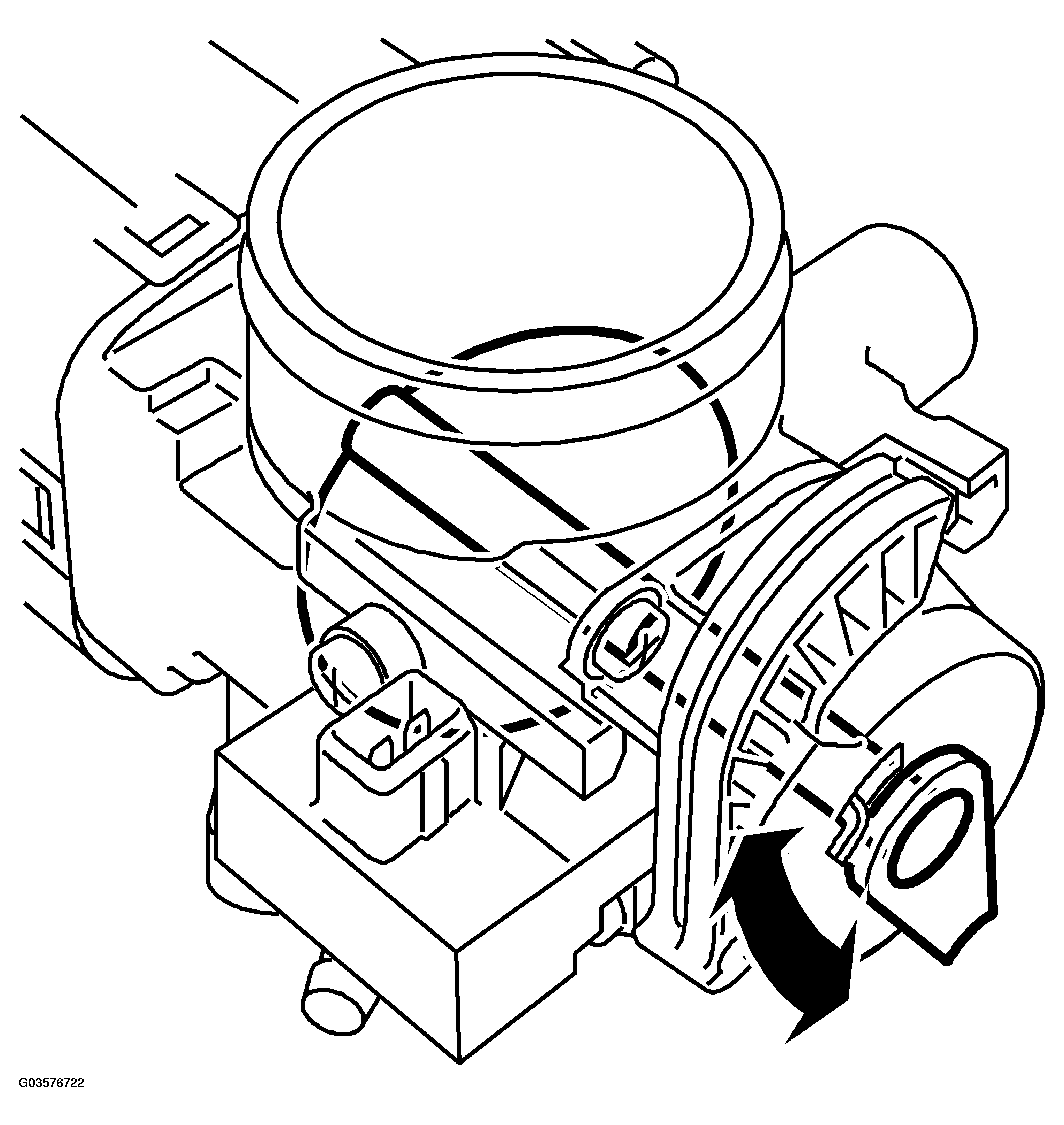

Fig 1: Identifying Throttle Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

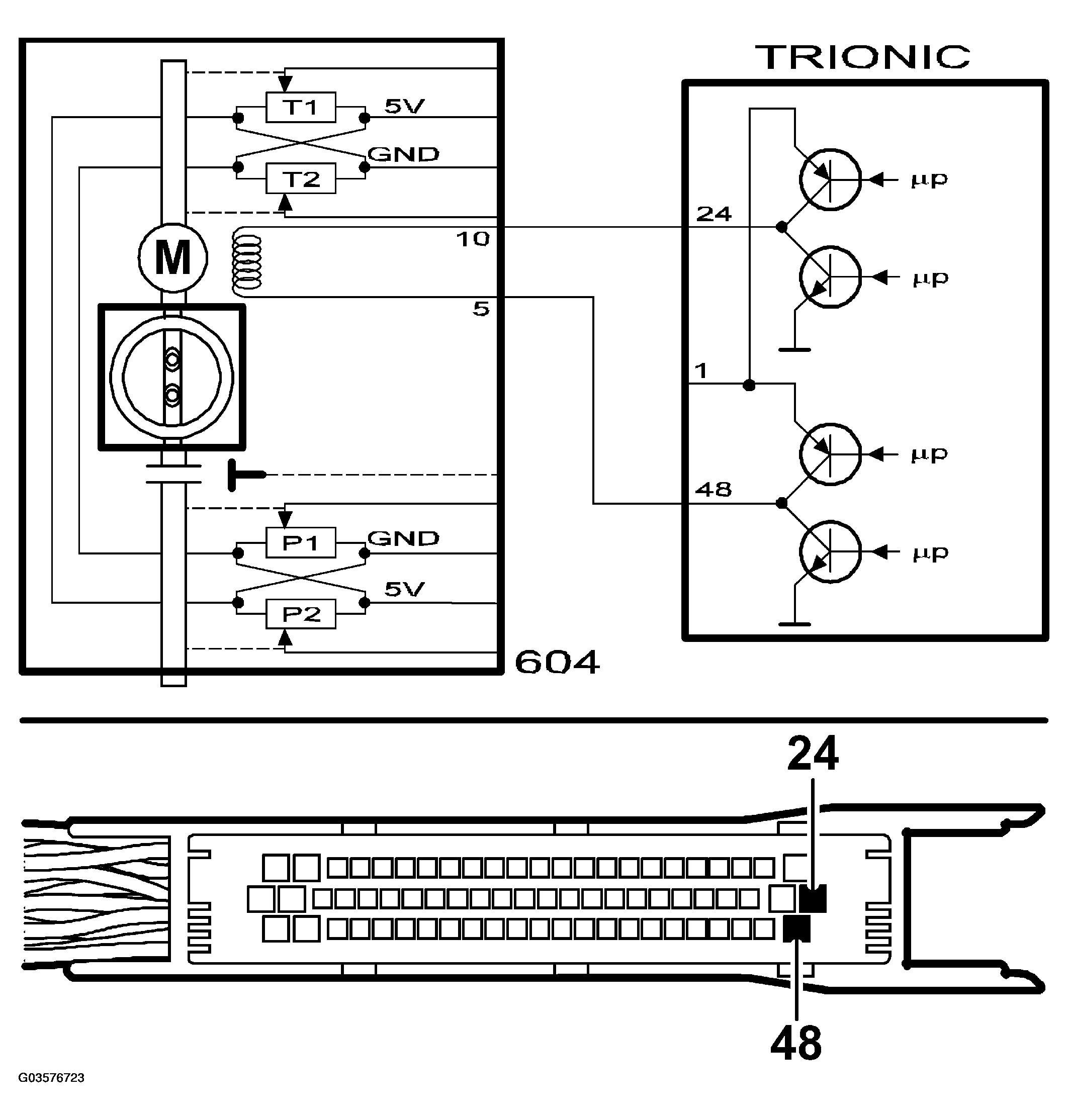

Fig 2: Circuit Diagram - Full PWM in Closing Direction

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: The system cannot close the throttle disc.
