Throttle Position Sensor: Service and Repair
Throttle Position SensorREMOVAL

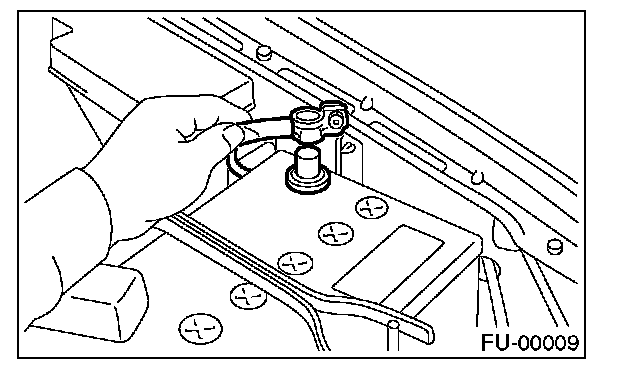

1. Disconnect the ground cable from battery.
2. Remove the intercooler.

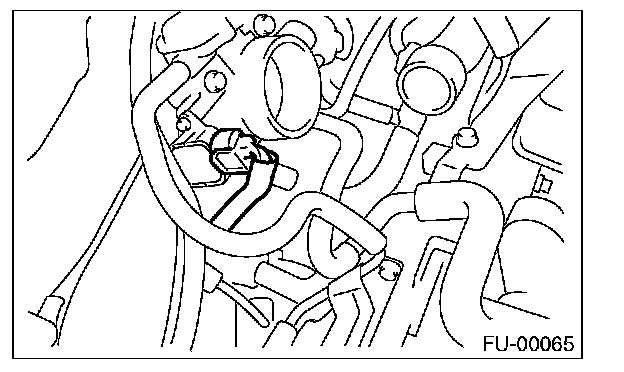

3. Disconnect the connector from the throttle position sensor.

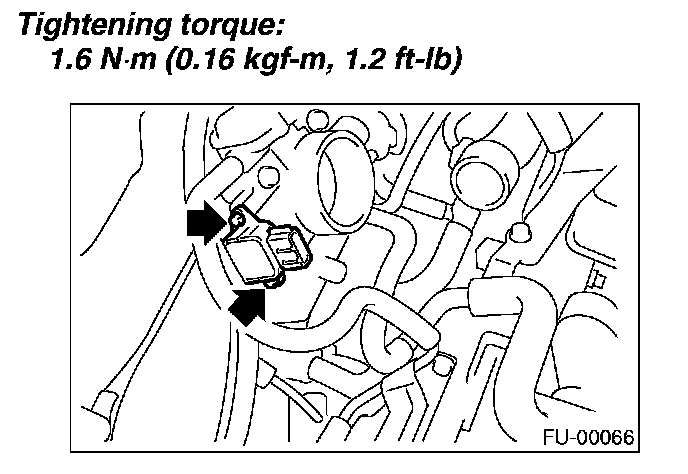

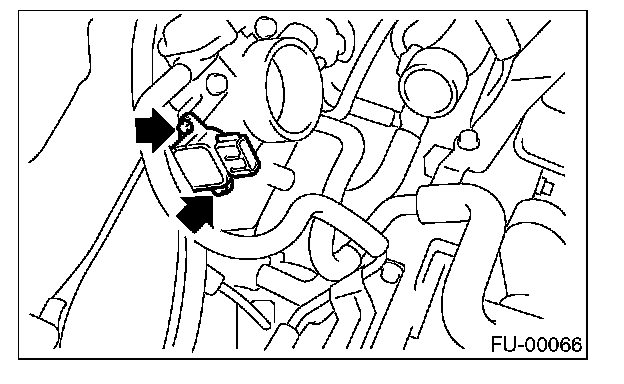

4. Remove the throttle position sensor holding screws, and remove the throttle position sensor.
INSTALLATION
Install in the reverse order of removal.
