Security Control Unit

Security Control Unit

Removal
Disconnect the ground cable from battery.
Remove the glove box.
Disconnect the connector from the security control unit.

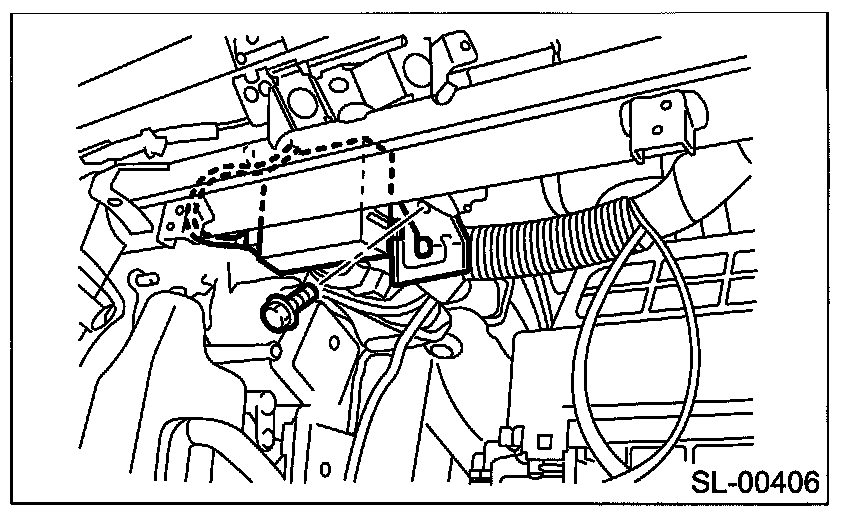

Remove the security control unit.







Installation
Install in the reverse order of removal

Tightening torque:
Security Control Unit Bracket:
10 ± 1.5 Nm (1.0 ± 0.15 kgf-m, 7.5 ± 1 ft-lb)
