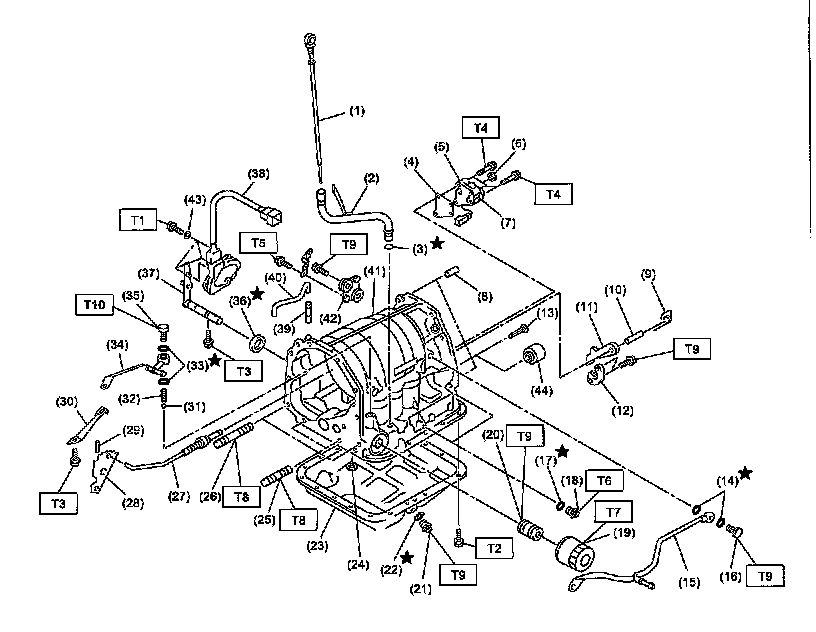

Transmission Case and Control Device

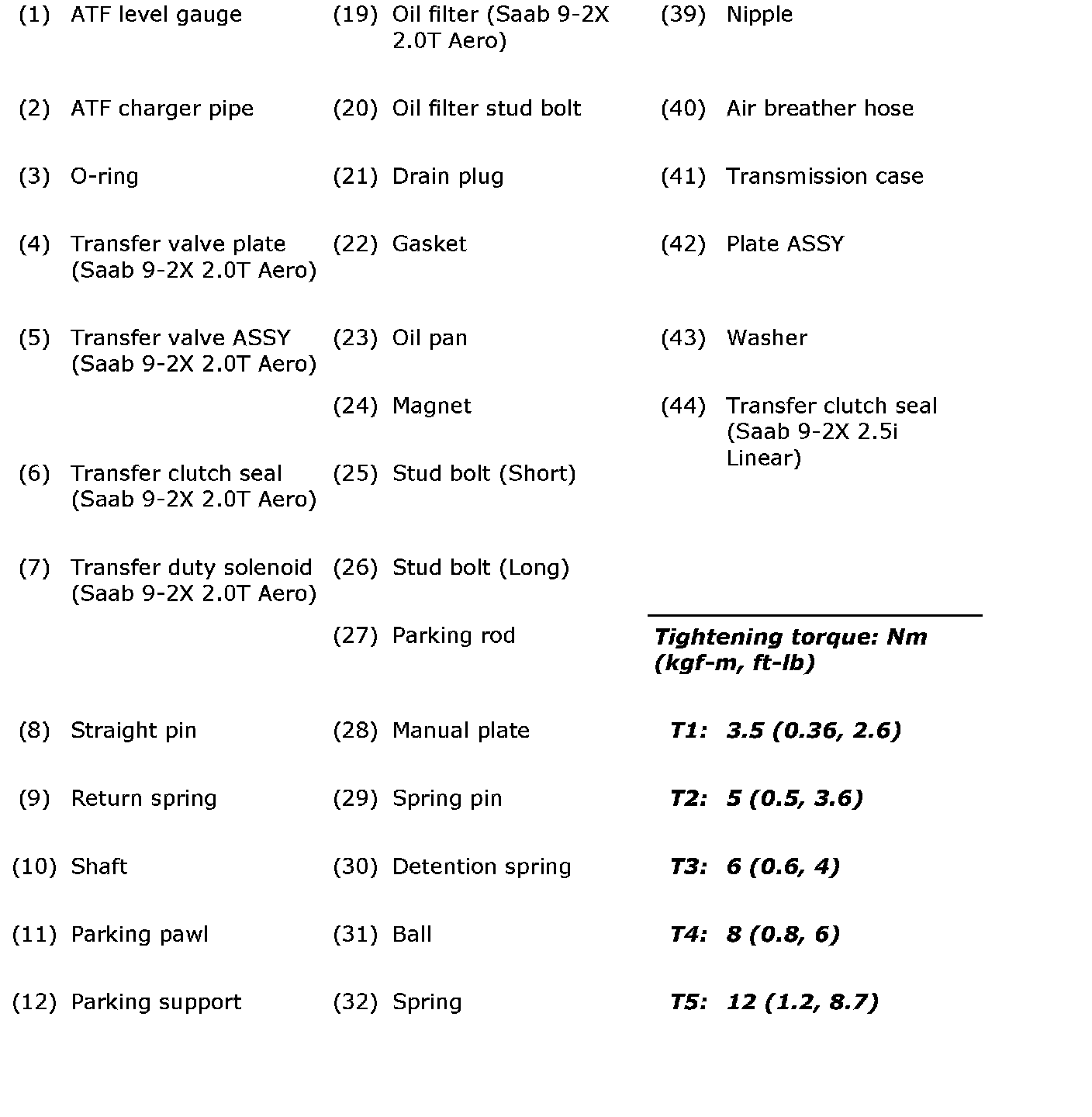

Transmission Case and Control Device (Part 1):



Transmission Case and Control Device (Part 2):



Transmission Case and Control Device (Part 3):
