Control Unit (Manual A/C Model)

Control Unit (Manual A/C Model)

Removal
Disconnect the ground terminal from battery.
Remove the glove box.
Remove the lower panel.

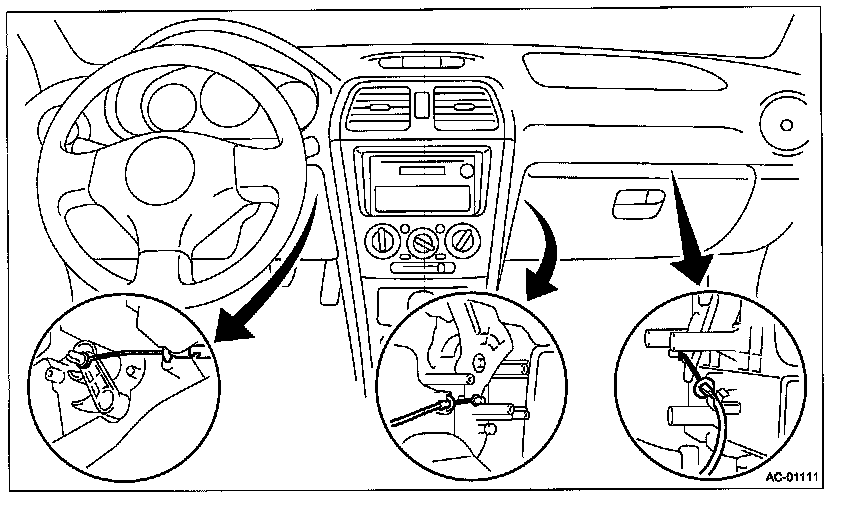

Remove the control wires.

Remove the console front panel.

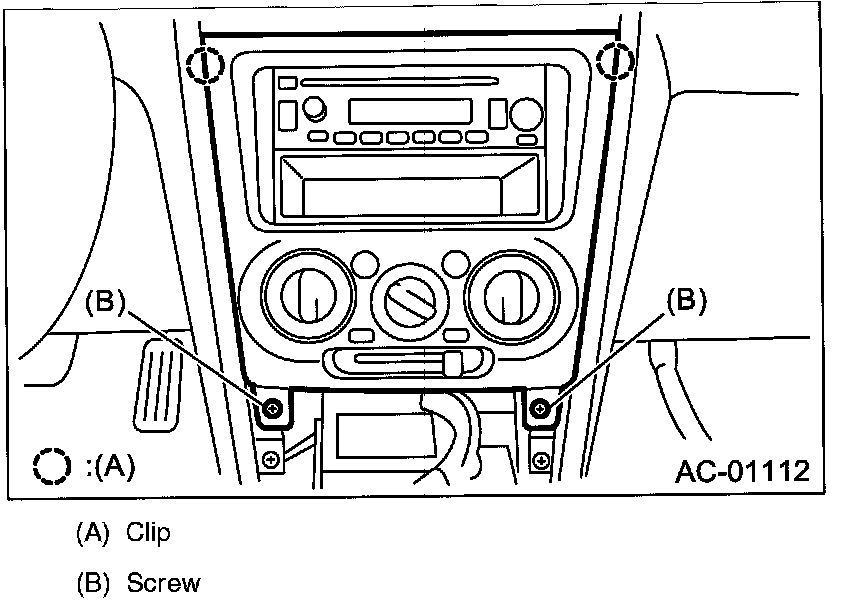

Remove the center console panel.

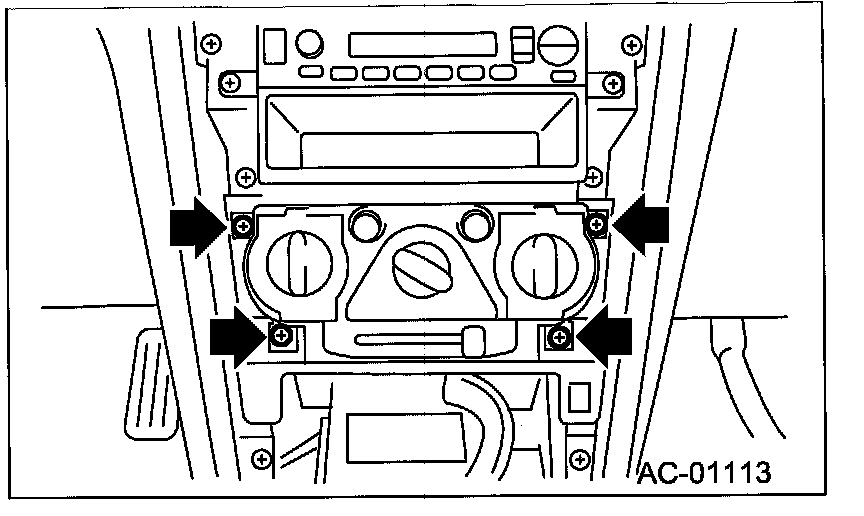

Remove four screws.

Pull out the control unit and disconnect connectors.

Installation
Install in the reverse order of removal.
