Solar Sensor: Service and Repair

Sunload Sensor (auto A/C Model)

Removal
Disconnect the ground cable from battery.
Remove the front defroster grille.

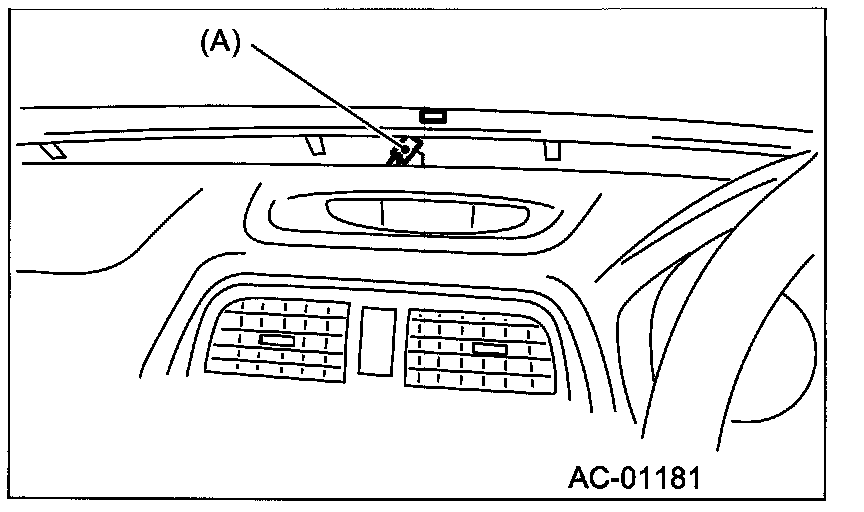

Disconnect the sunload sensor connector (A).







IMPORTANT: Be careful not to damage the sensors and interior trims when removing them.

Installation
Install in the reverse order of removal.
