Fuel Filter: Service and Repair

Fuel Filter

REMOVAL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill the fuel.

NOTE: Fuel filter is built into the fuel pump assembly.

1. Release the fuel pressure.
2. Remove the fuel pump assembly.
3. Remove the fuel pump.

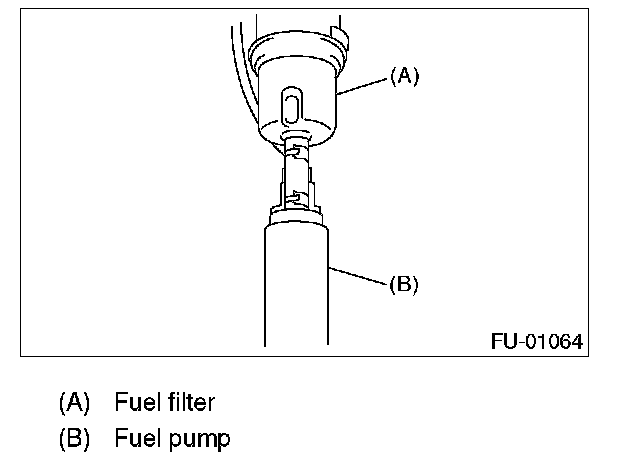

4. Separate the fuel filter from fuel pump.

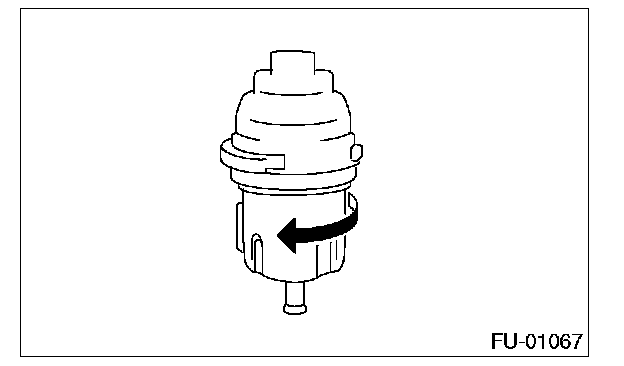

5. Turn the filter holder around to the arrow direction, and then remove the filter.

INSTALLATION

CAUTION:
- If fuel hoses are damaged at the connecting portion, replace them with new ones.
- If clamps are badly damaged, replace them with new ones.

Install in the reverse order of removal.
