Fuel Cut Control Unit: Service and Repair

Fuel Cut Valve

REMOVAL
1. Remove the fuel tank.

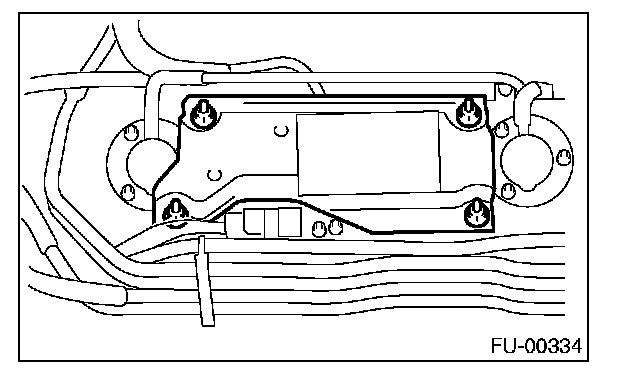

2. Remove the protect cover.

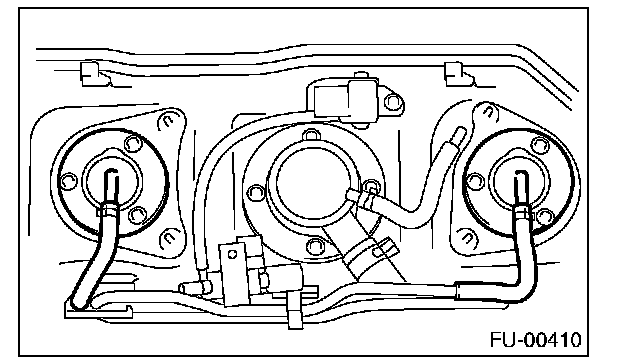

3. Move the clip and disconnect the evaporation hose from fuel cut valve.

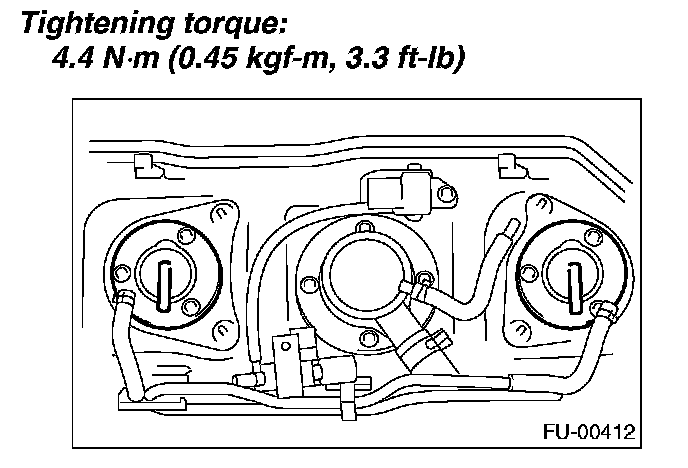

4. Remove the bolts which install the fuel cut valve.

INSTALLATION

Install in the reverse order of removal.
