Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor

REMOVAL

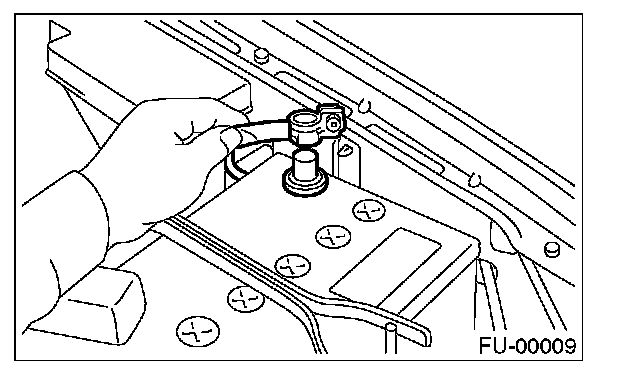

1. Disconnect the ground cable from battery.

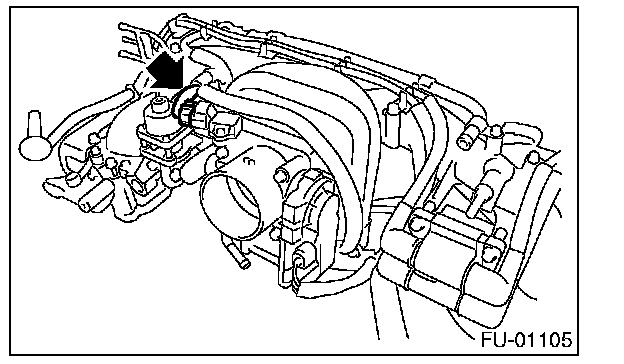

2. Disconnect the connector from manifold absolute pressure sensor.
3. Remove the manifold absolute pressure sensor from throttle body.

INSTALLATION
Install in the reverse order of removal.

NOTE: Use new O-rings.

Tightening torque: 2.0 N.m (0.2 kgf-m, 1.5 ft-lb)
