Power Window Switch: Service and Repair

Power Window Control Switch

Removal

Main Switch
Disconnect the ground cable from battery.

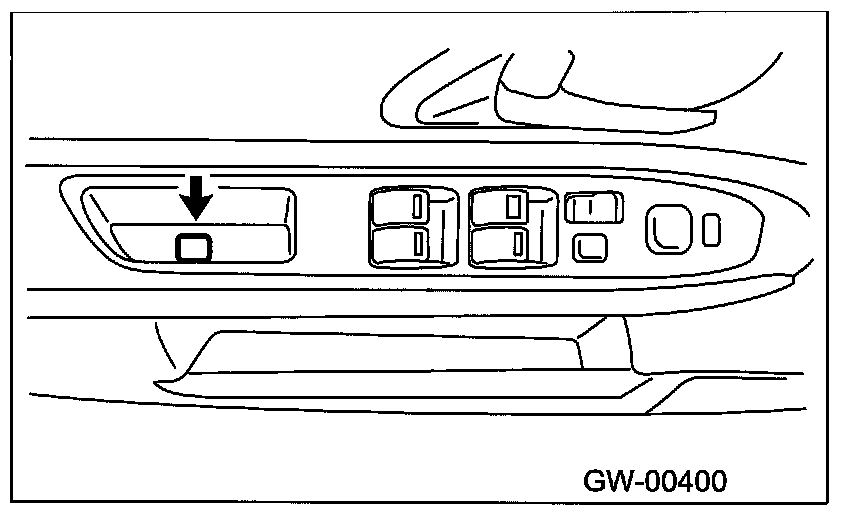

Using a flat tip screwdriver, remove the screw cover.

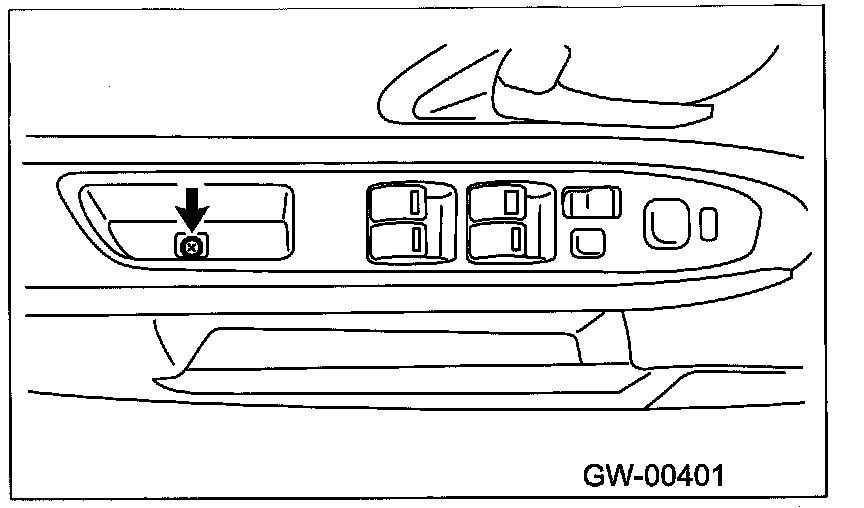

Loosen the screw to remove the power window main switch.







Disconnect the connector.

Sub Switch
Disconnect the ground cable from battery.

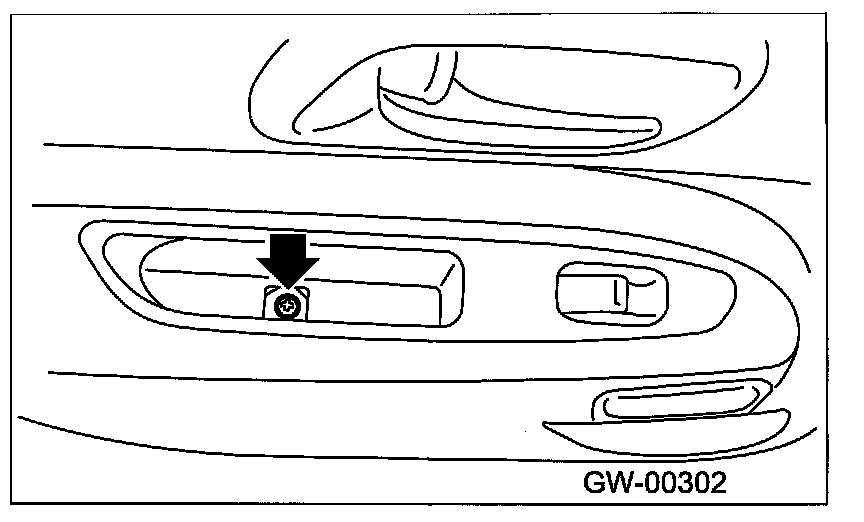

Remove the screw which secures switch panel.







Remove the switch panel.







Disconnect the connector.

Installation

Main Switch
Install in the reverse order of removal.

Sub Switch
Install in the reverse order of removal.
