DTC P0123: Throttle/Pedal Position Sensor/Switch "A" Circuit High Input: Wiring Diagram: Notes

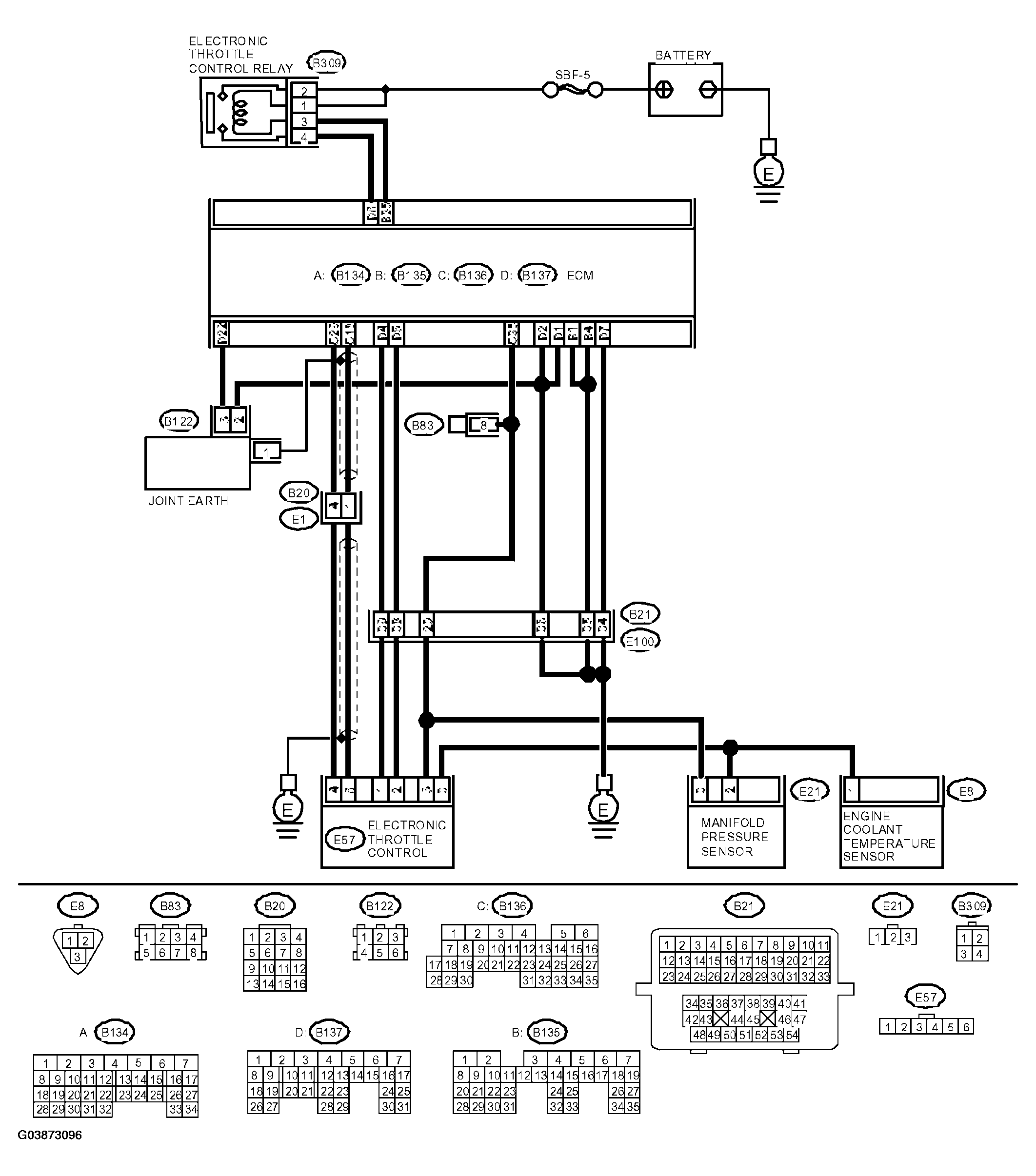

Fig 1: Wiring Diagram - Throttle/Pedal Position Sensor/Switch "A" Circuit High Input
G03873096Courtesy of SAAB-SCANIA OF AMERICA, INC.
