Saab
>>
2005
>>
9-2X Linear, 251, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine (Diagnostics) - 2.5L
>>
Diagnostic Procedure With DTC
>>
DTC P0851: Neutral Switch Input Circuit Low (M/T Model)
>>
Wiring Diagram:
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram:: Notes

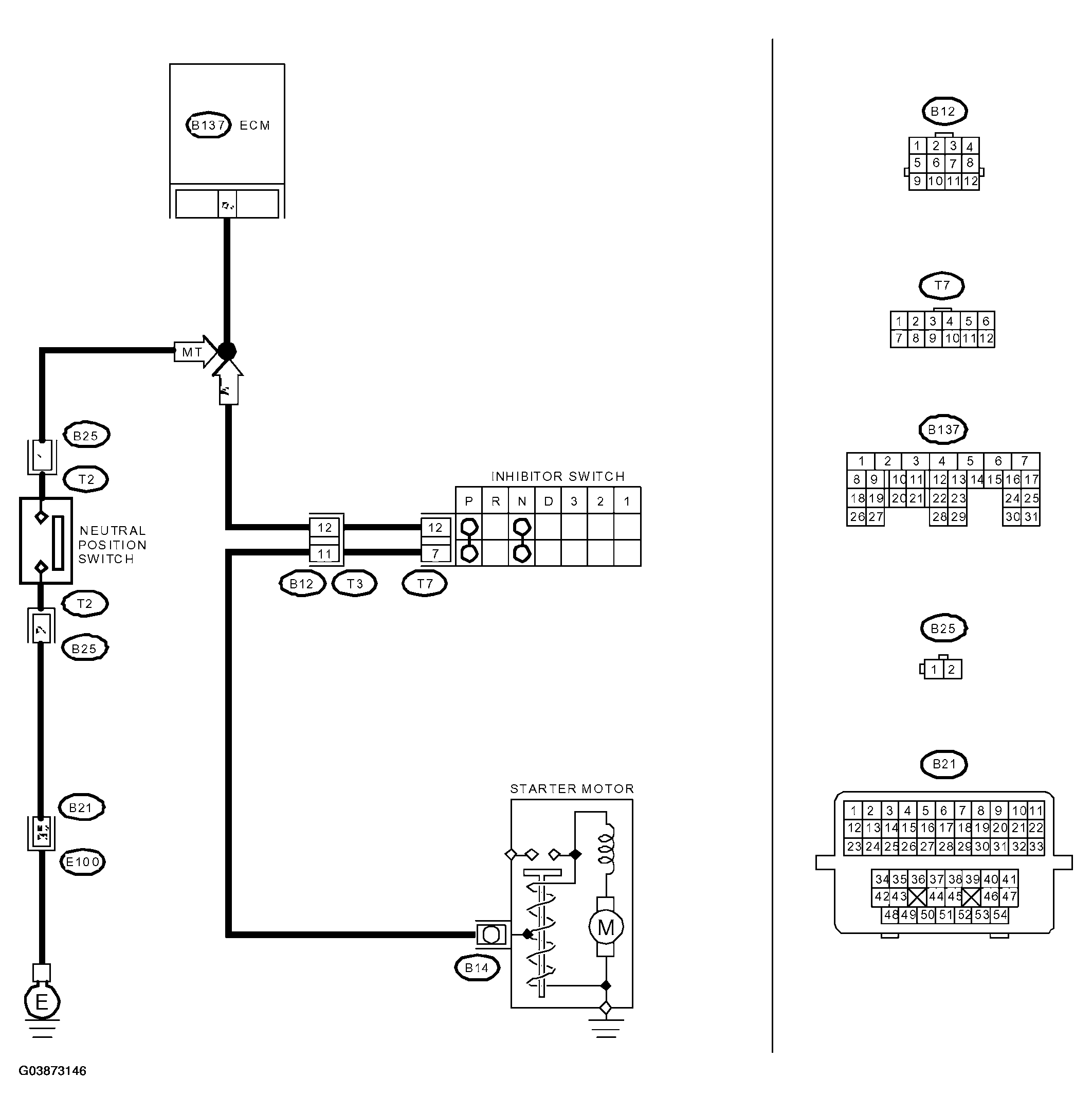

Fig 1: Wiring Diagram - Neutral Switch Input Circuit Low (MT Model)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
