DTC P2123: Throttle/Pedal Position Sensor/Switch "D" Circuit High Input: Wiring Diagram: Notes

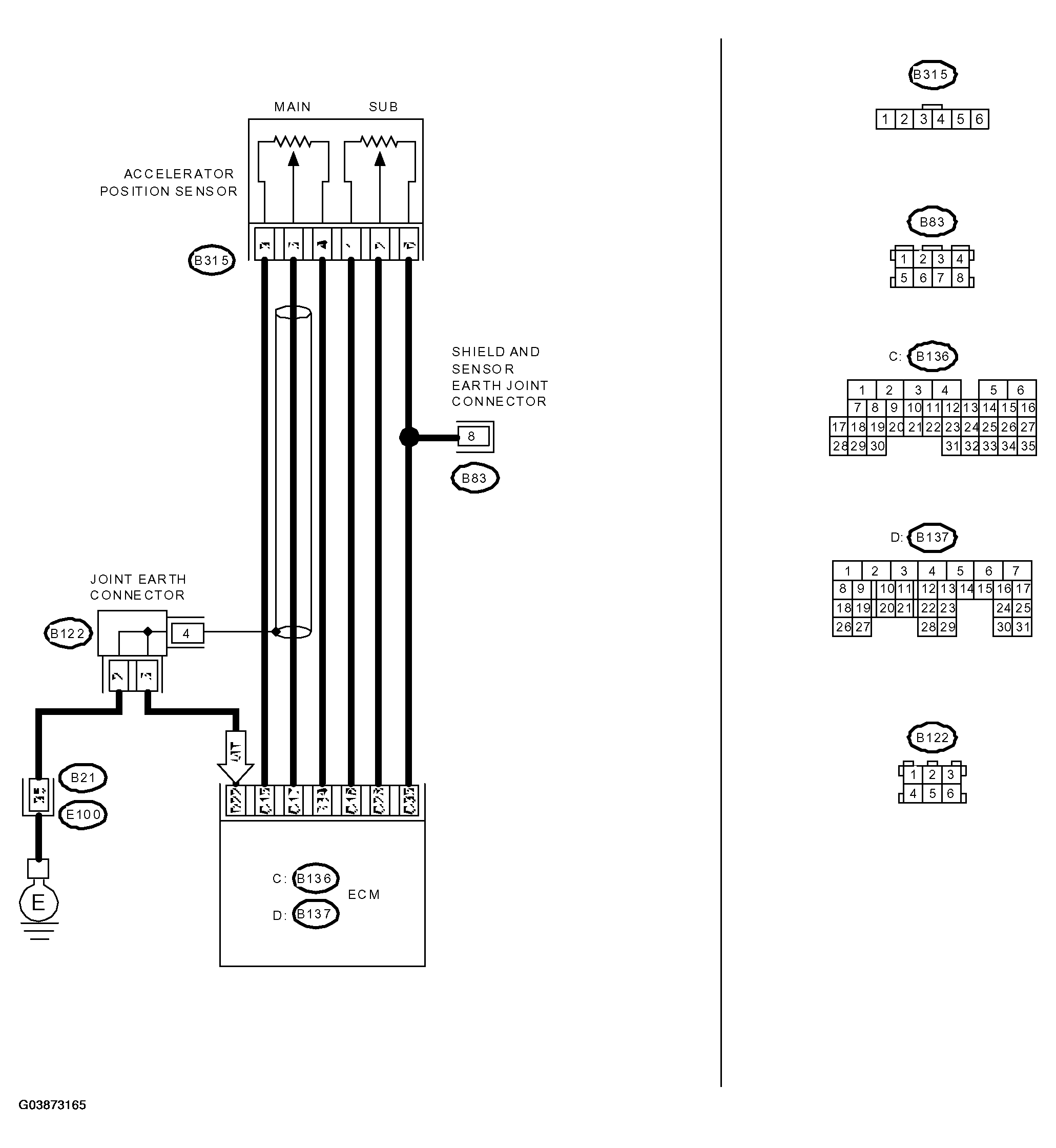

Fig 1: Wiring Diagram - Throttle/Pedal Position Sensor/Switch "D" Circuit High Input
G03873165Courtesy of SAAB-SCANIA OF AMERICA, INC.
