Wiring Diagram:: Notes

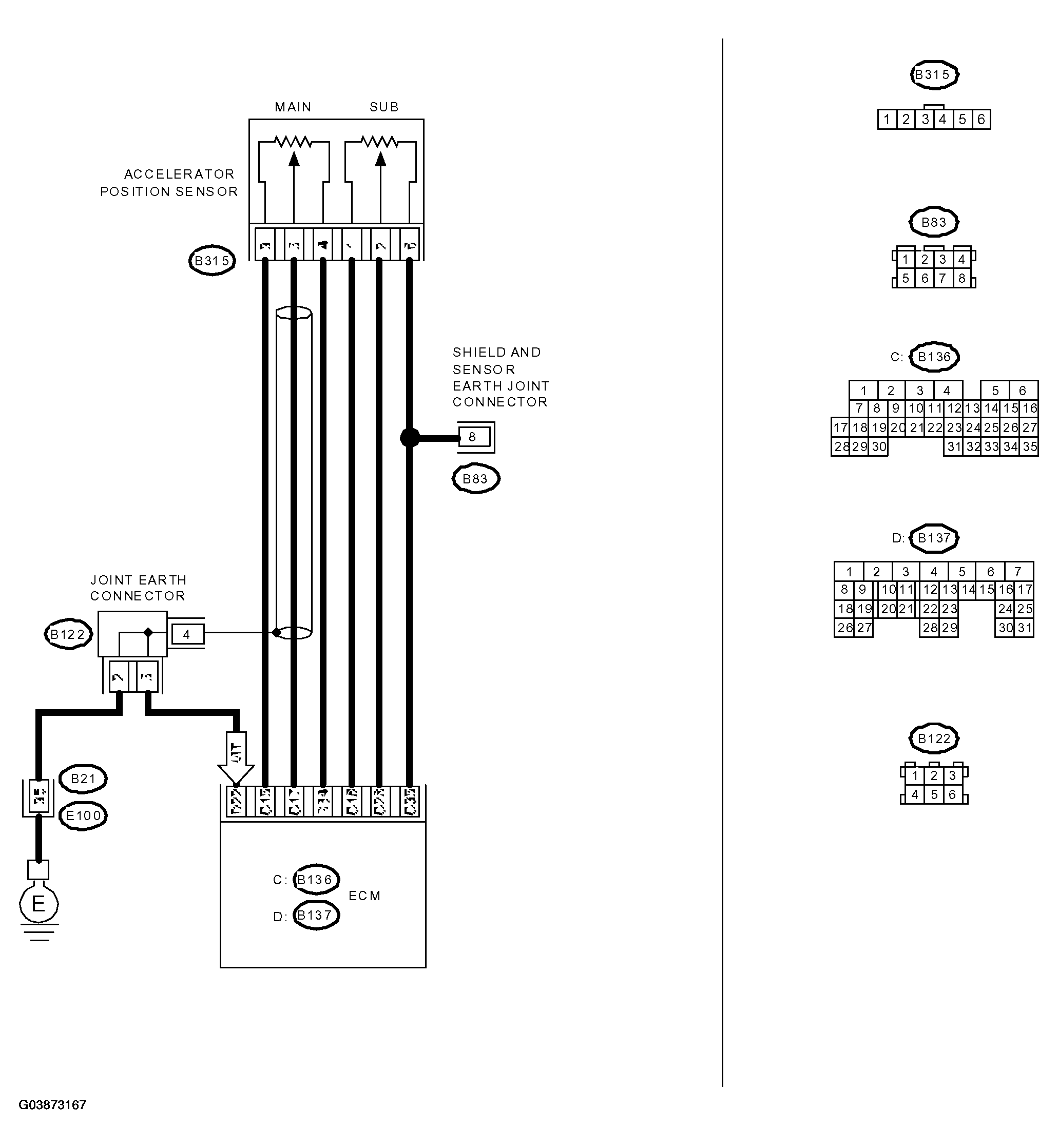

Fig 1: Wiring Diagram - Throttle/Pedal Position Sensor/Switch "E" Circuit High Input
G03873167Courtesy of SAAB-SCANIA OF AMERICA, INC.
