Transmission Control Module (TCM): Removal

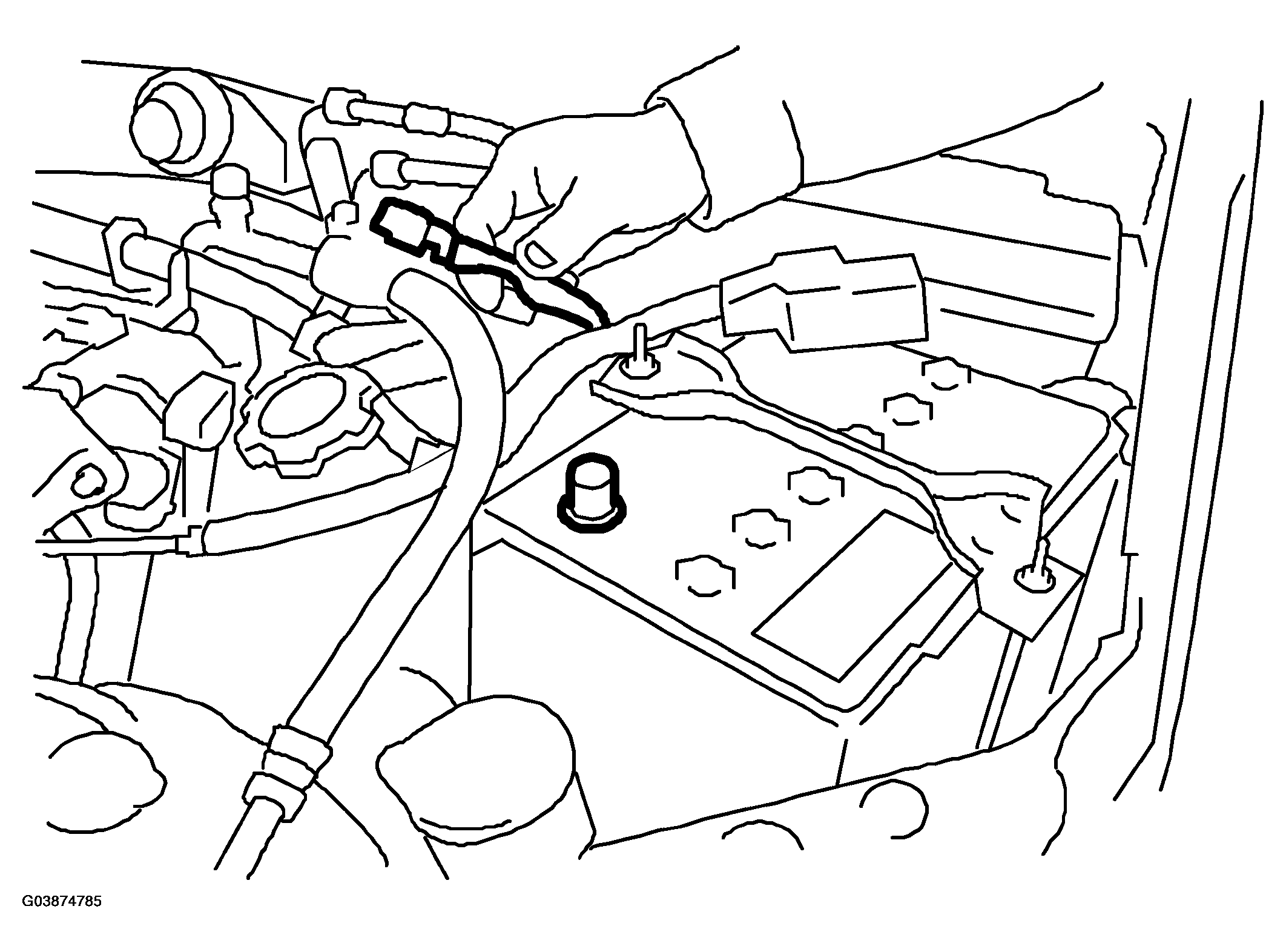

Disconnect the ground cable from battery.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the lower cover and then disconnect the connector.

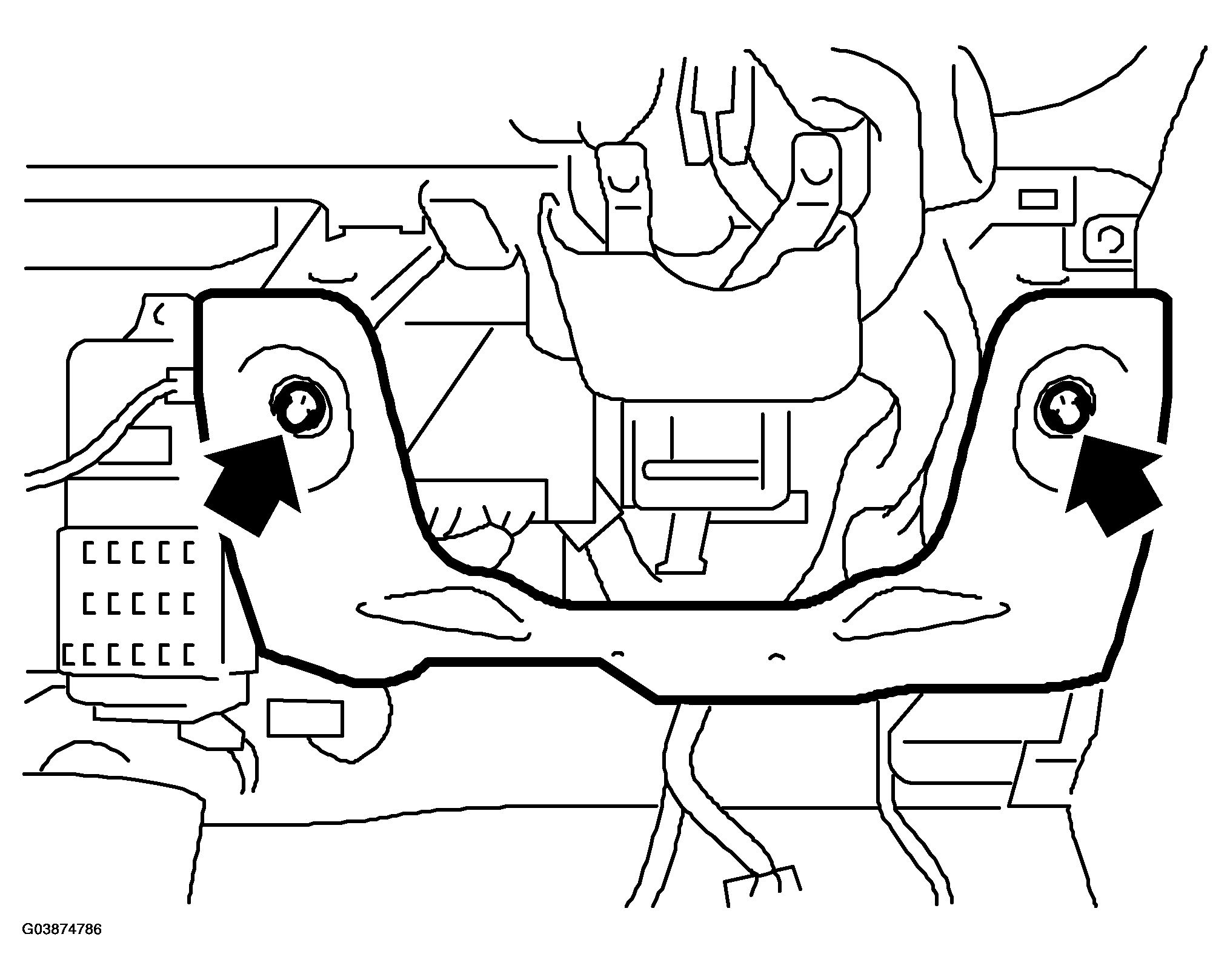

Remove the knee bolster.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

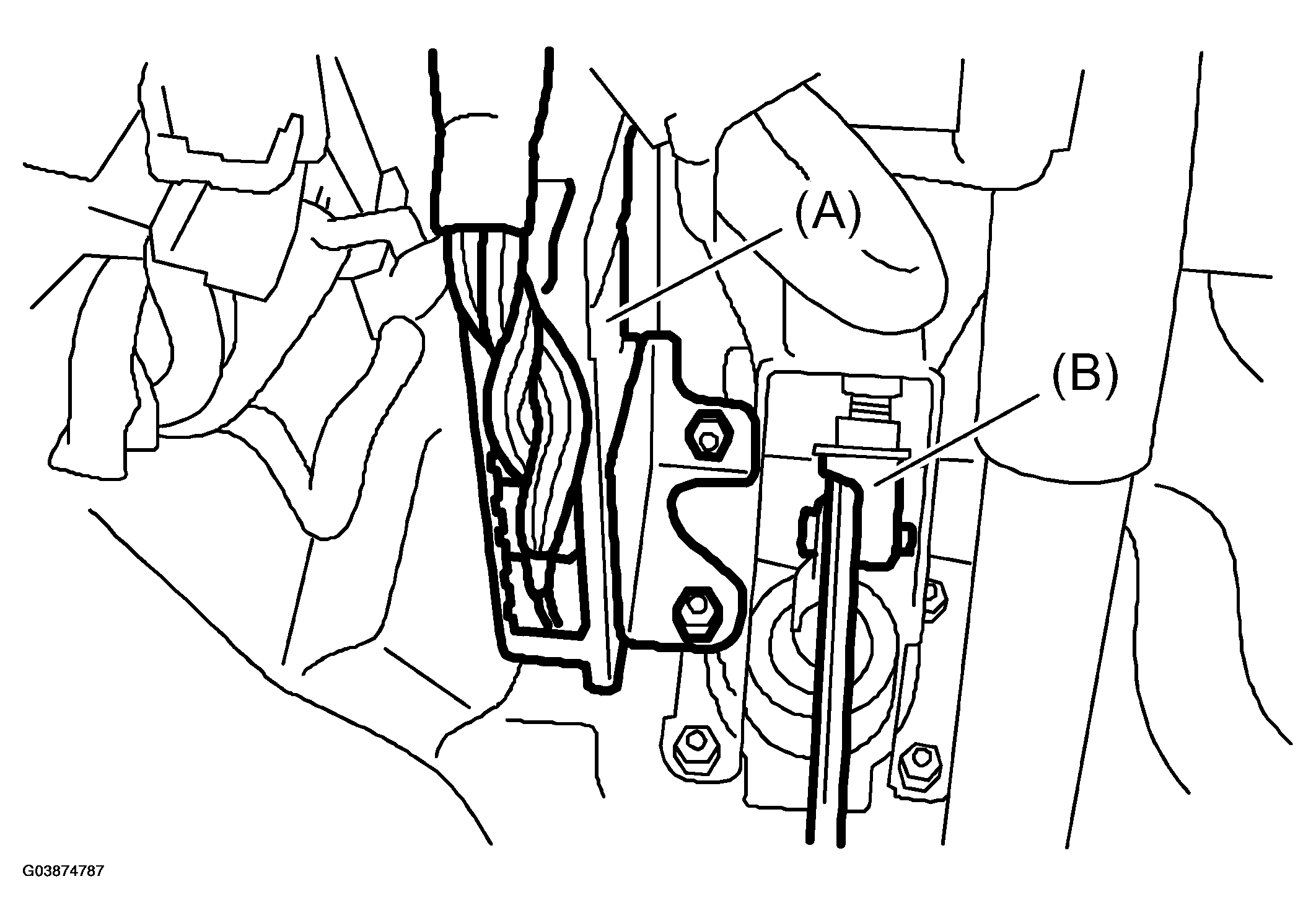

Disconnect the connectors from TCM.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Transmission control module (TCM)
- Brake pedal
Remove the TCM.
