Select Lever: Disassembly

Remove the packing.

Remove the grip.

Remove the indicator light, and then remove the indicator cover.

NOTE: Be careful not to break the indicator light during removal.

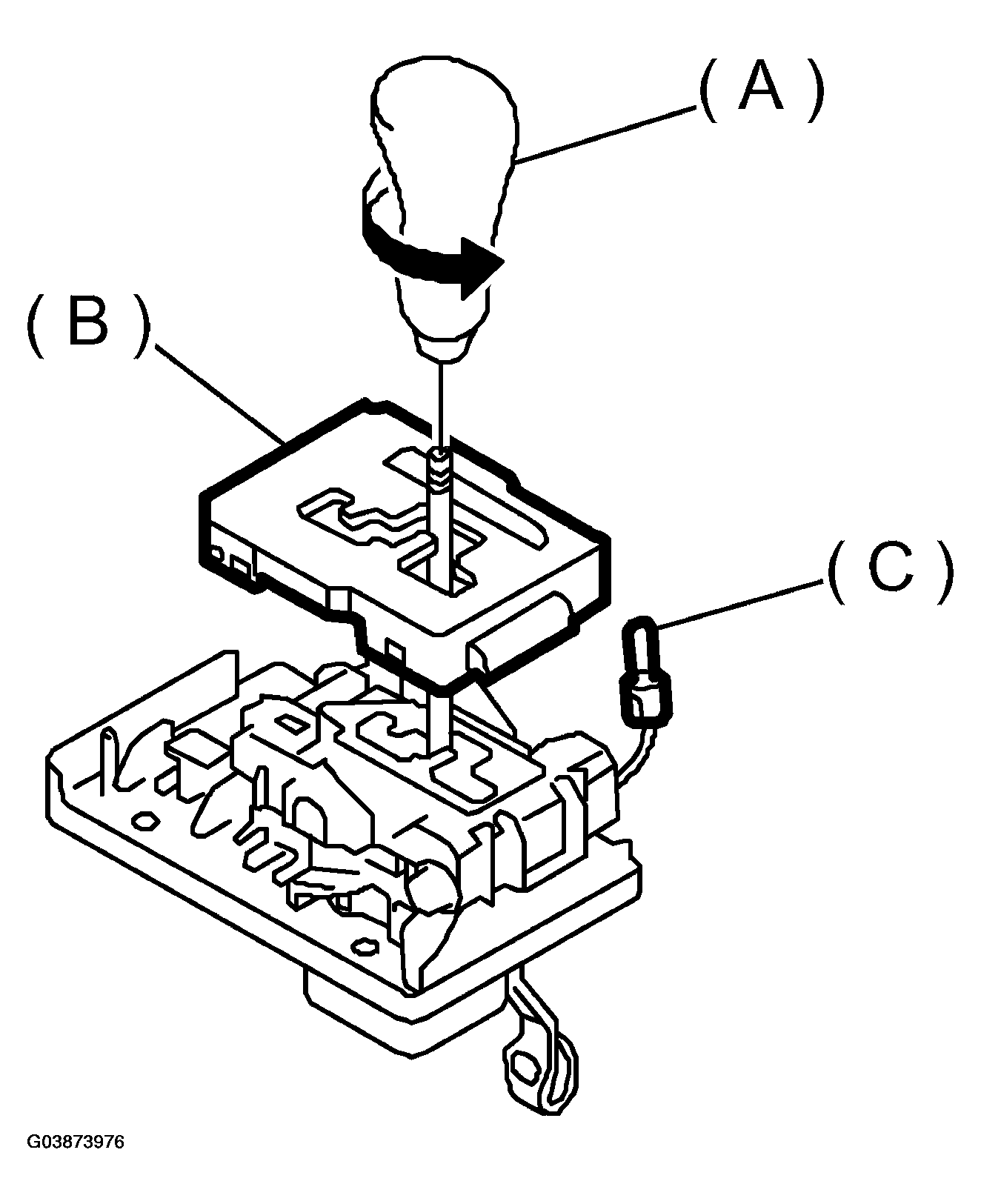

Fig 1: Removing Indicator Cover

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the slider.

Remove the cover.

Remove the clips, and then remove the guide plate.

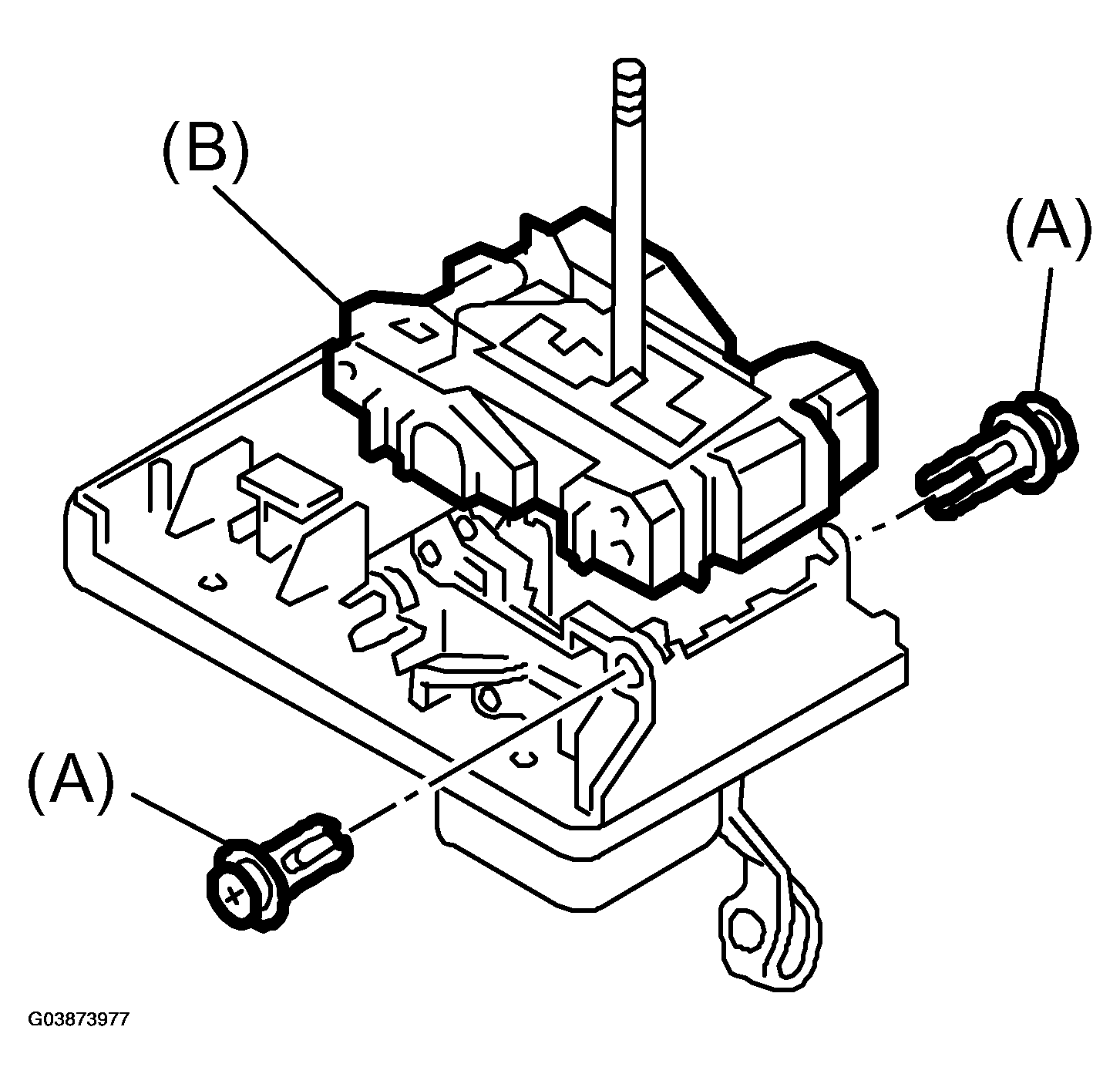

Fig 2: Removing Guide Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the clamp, and the remove the shift lock solenoid.

Remove the bolt.

Remove the lock plate A, B, C and bushing.

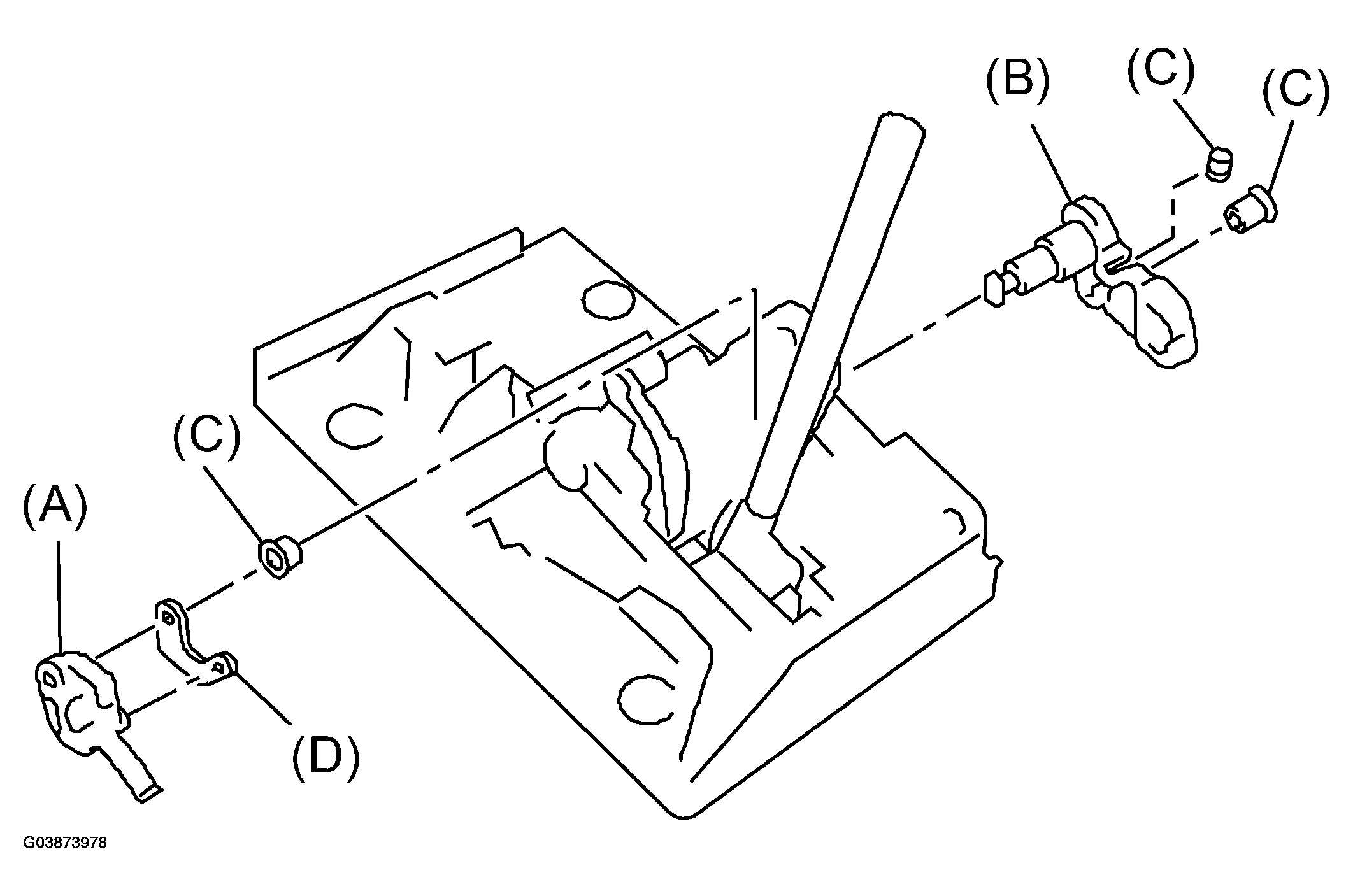

Fig 3: Removing Lock Plate A, B, C And Bushing

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the cushion plate.

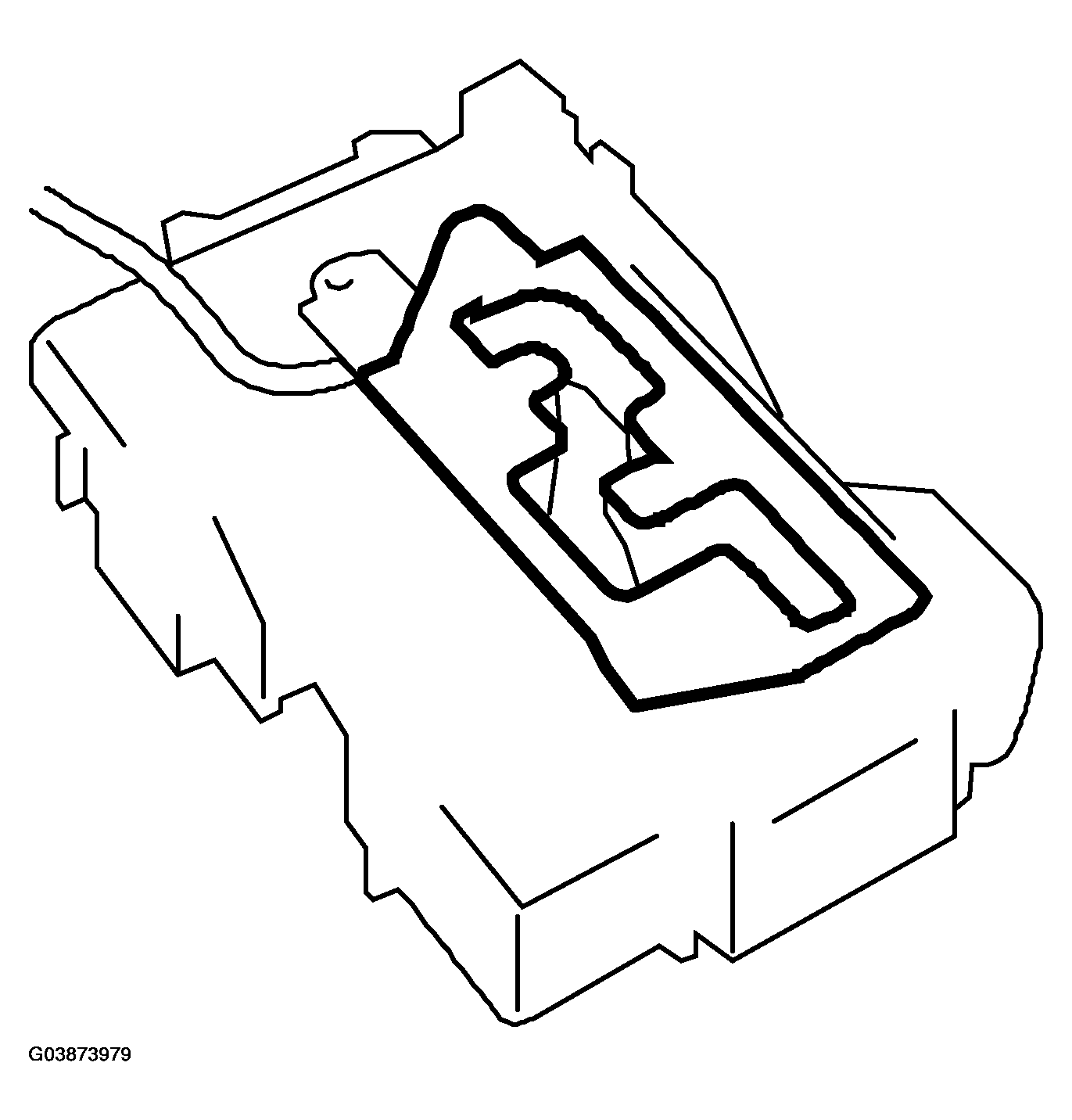

Fig 4: Removing Cushion Plate

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the clip, and then remove the "P" range switch.

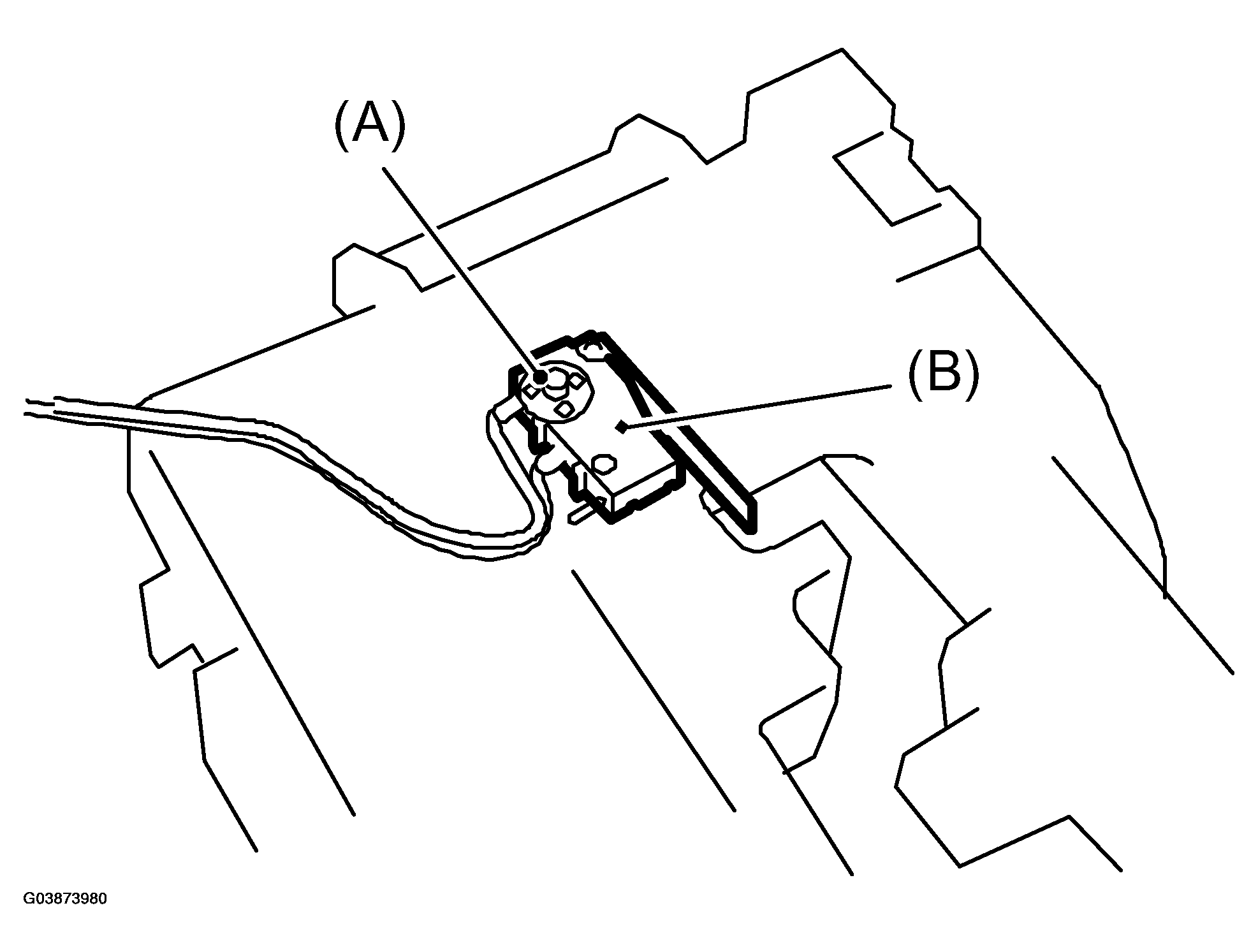

Fig 5: Removing Range Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the grommet, and then extract spring pin.

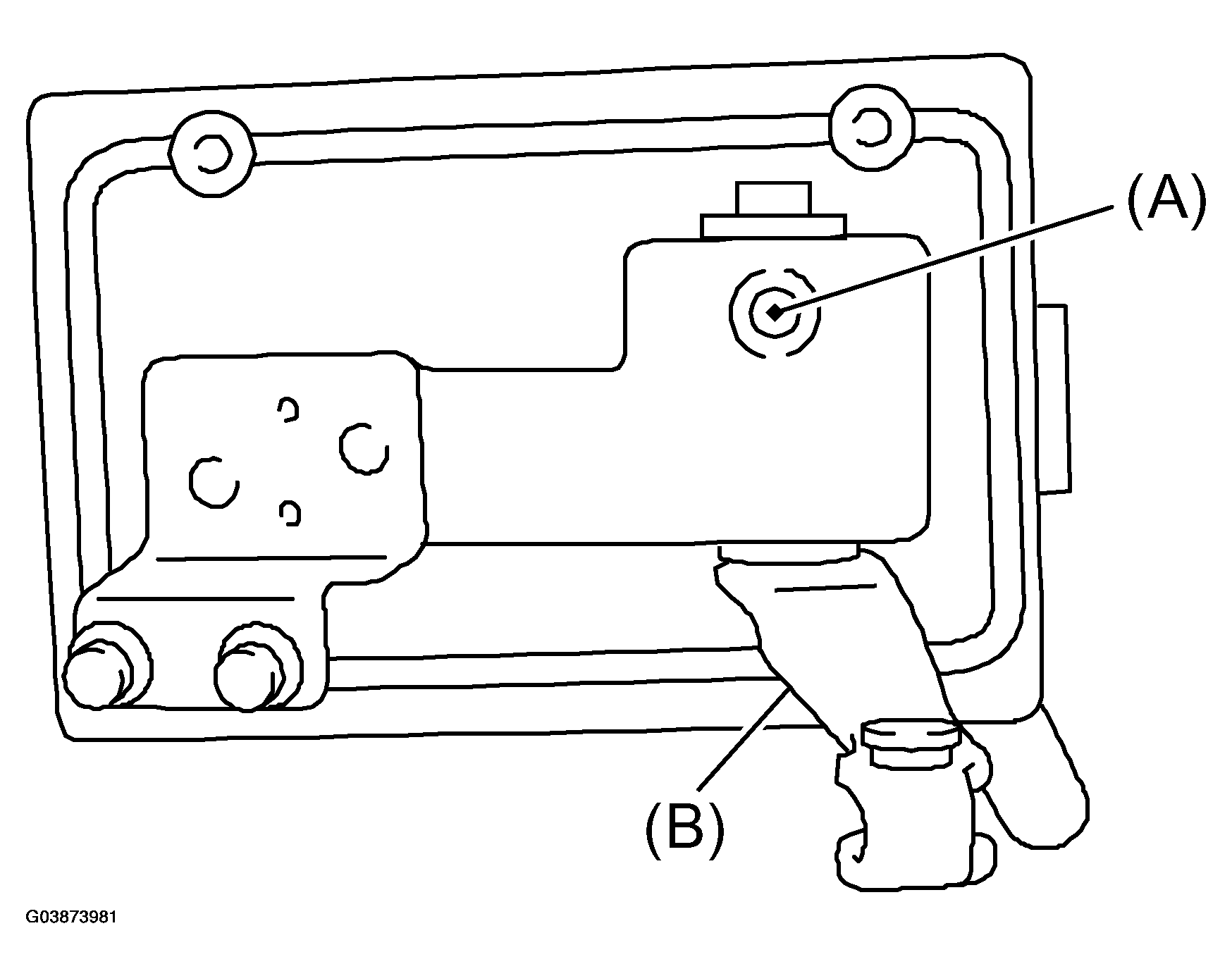

Fig 6: Removing Grommet

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the select lever lower, and then take away the select lever COMPL from plate.

Remove the detent spring, and then remove the detent arm.

Remove the select lever COMPL bushing from bracket.

Remove the bracket from select lever COMPL.

Remove the bushing from bracket.
