Engine (Diagnostics) - 2.5L: Electrical Component Location: Sensor

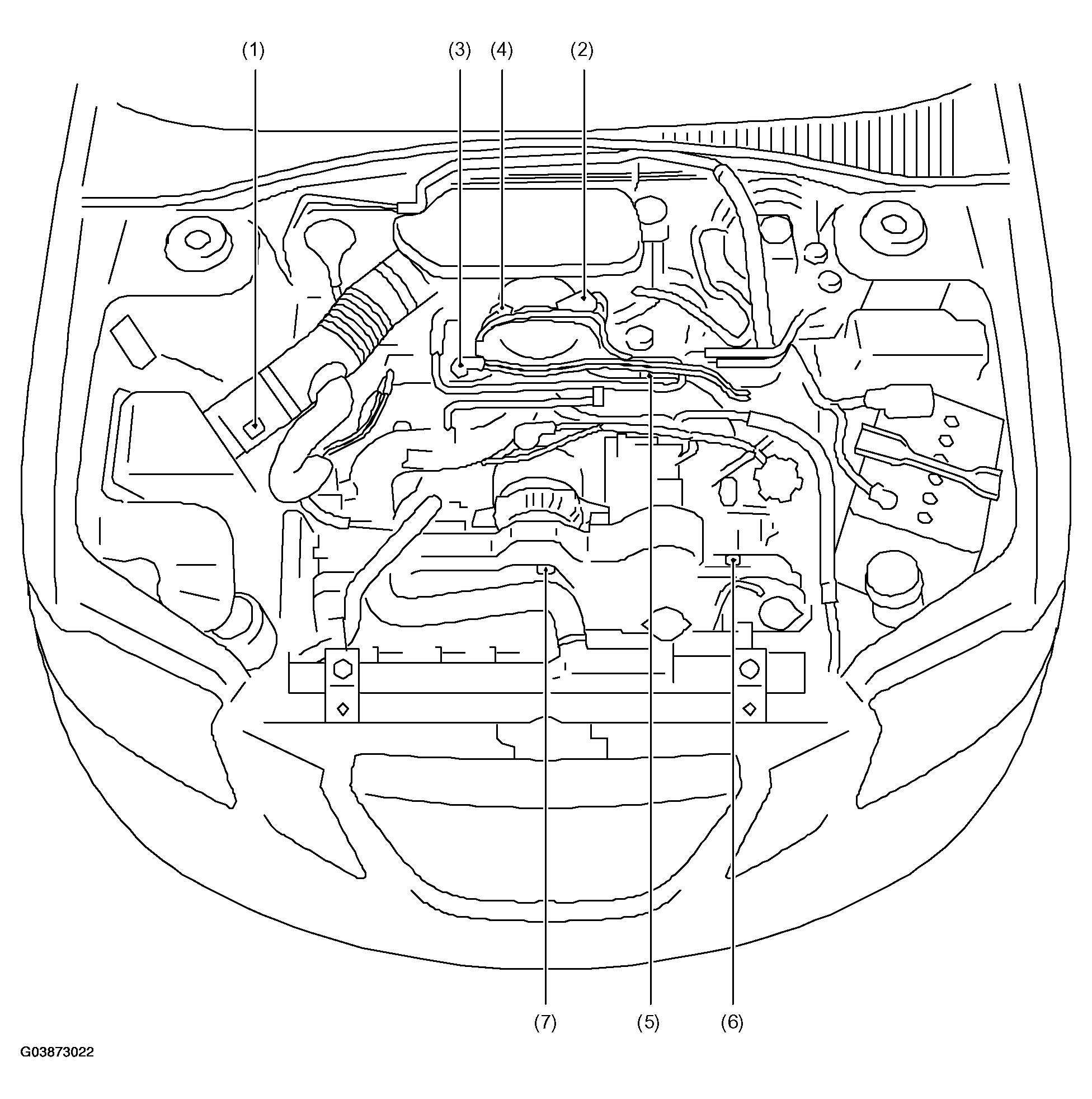

Fig 1: Identifying Engine Sensors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Mass air flow and intake air temperature sensor
2. Manifold absolute pressure sensor
3. Engine coolant temperature sensor
4. Throttle position sensor
5. Knock sensor
6. Camshaft position sensor
7. Crankshaft position sensor

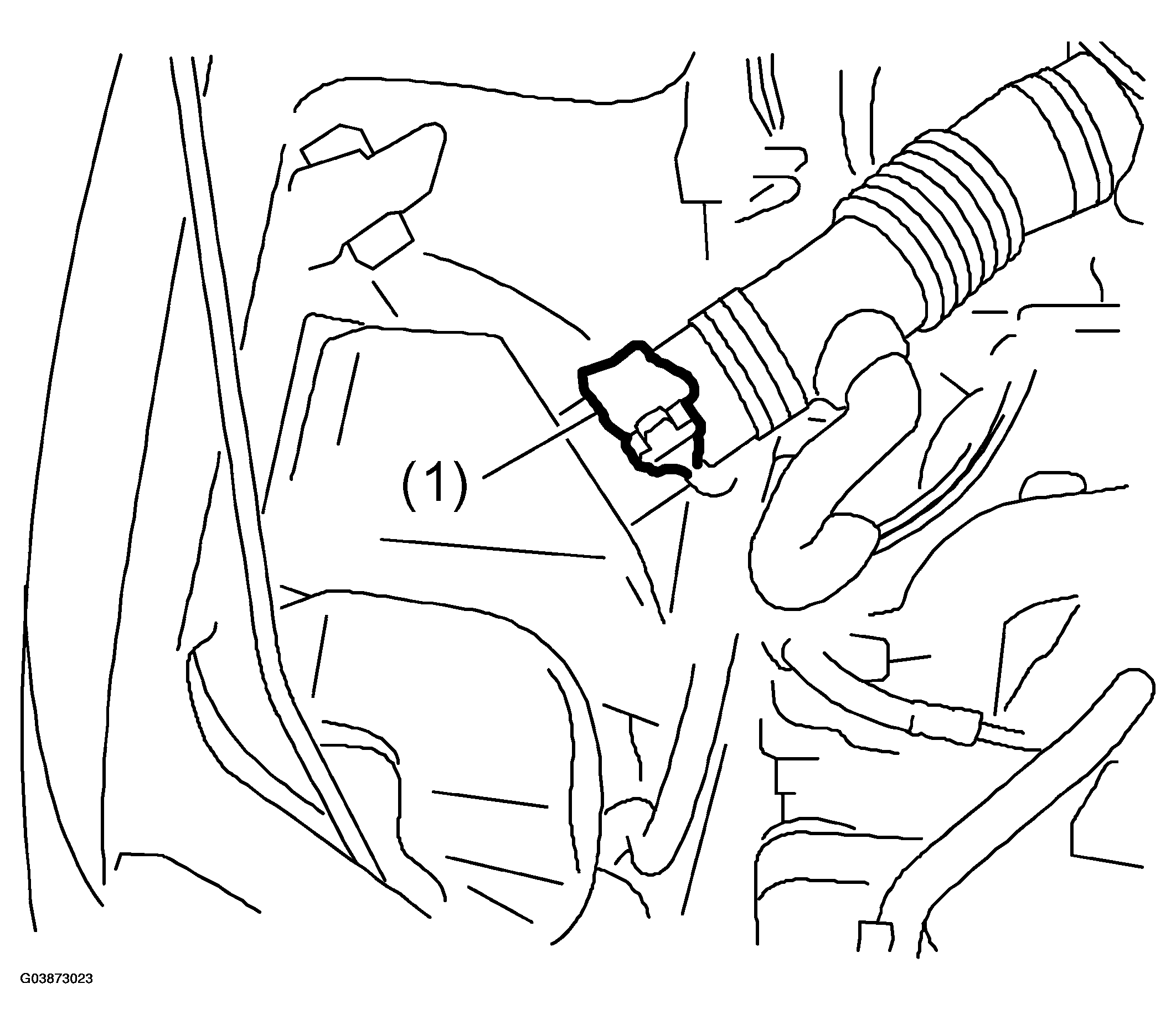

Fig 2: Identifying Mass Air Flow & Intake Air Temperature Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

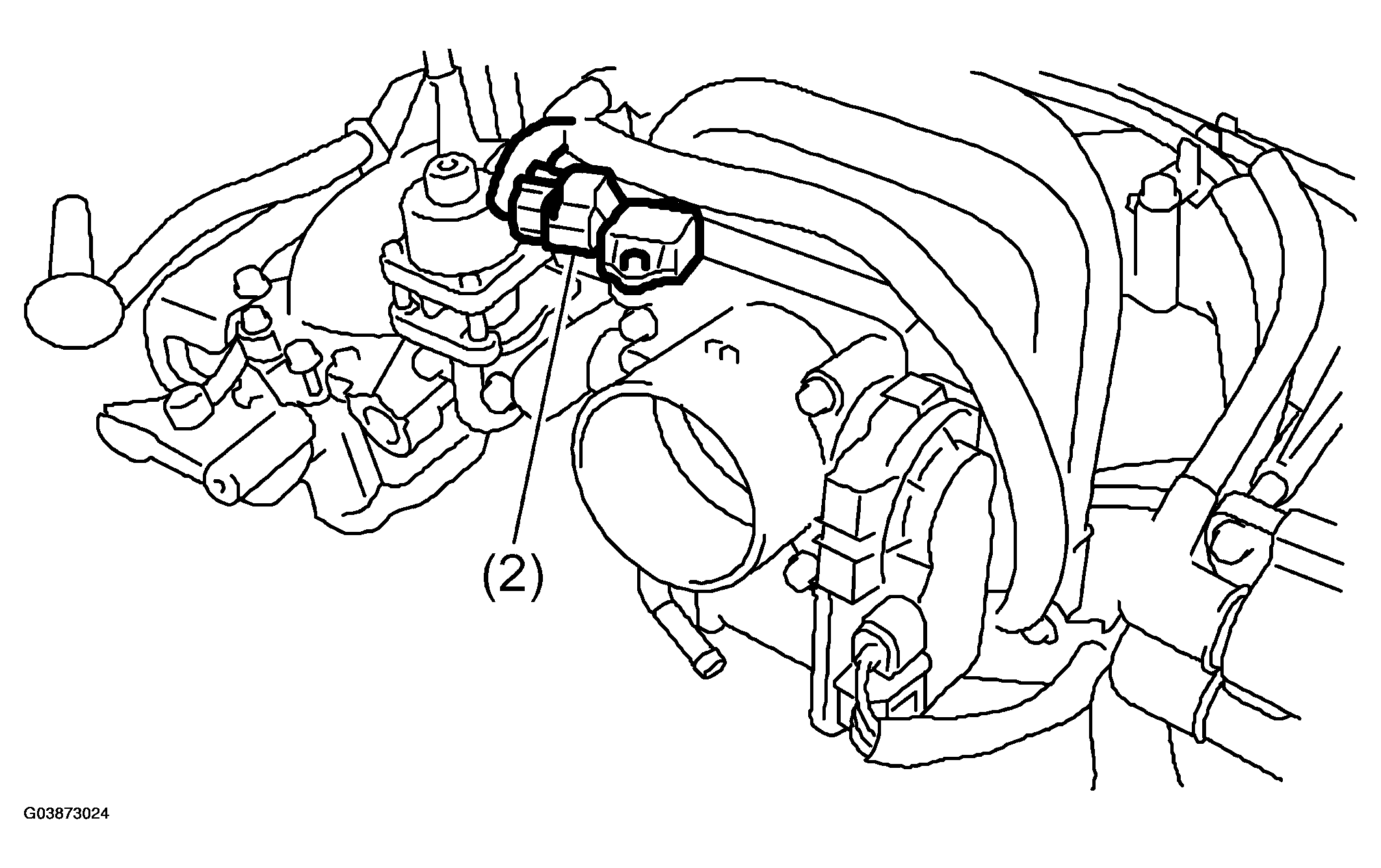

Fig 3: Identifying Manifold Absolute Pressure Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

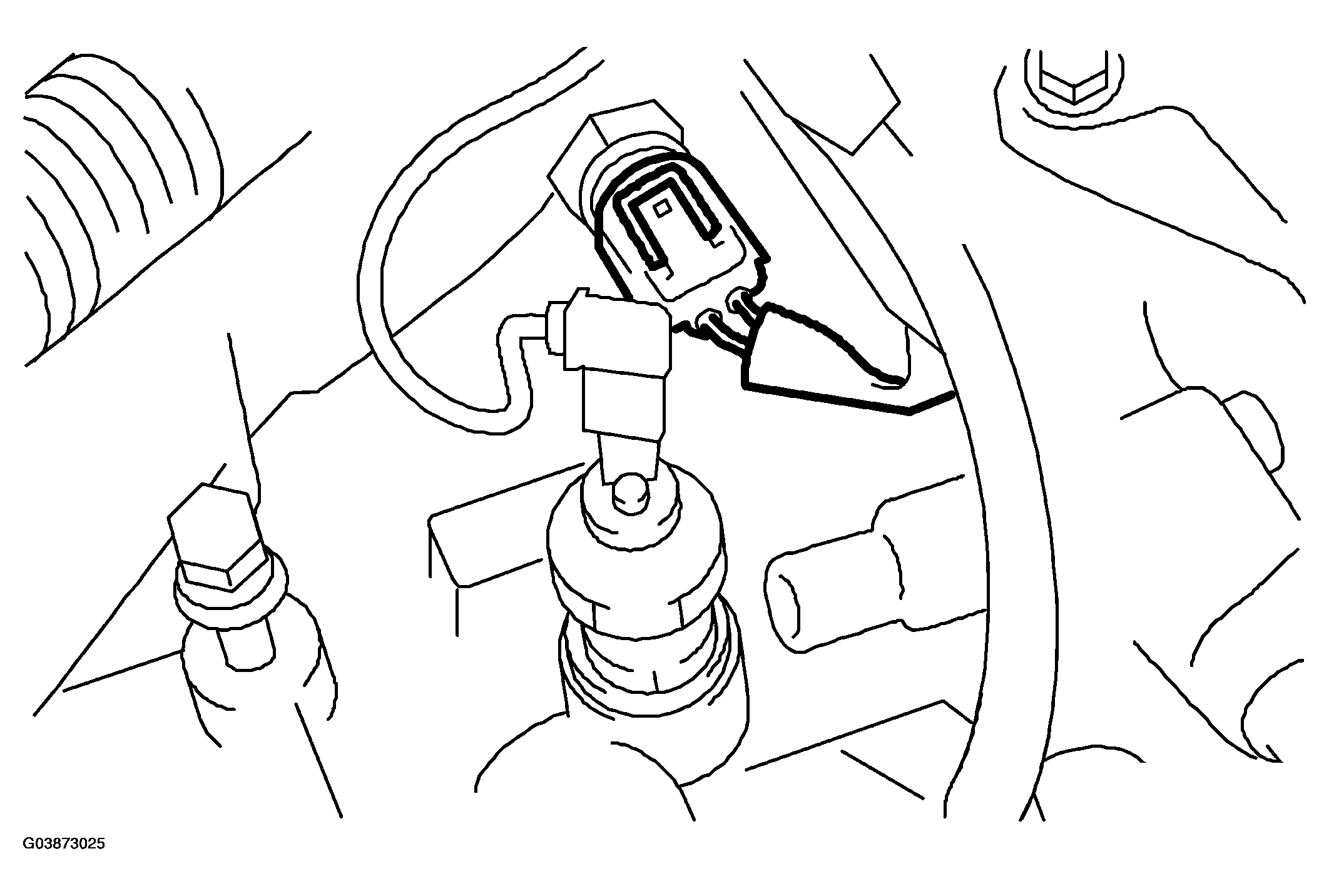

Fig 4: Identifying Engine Coolant Temperature Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

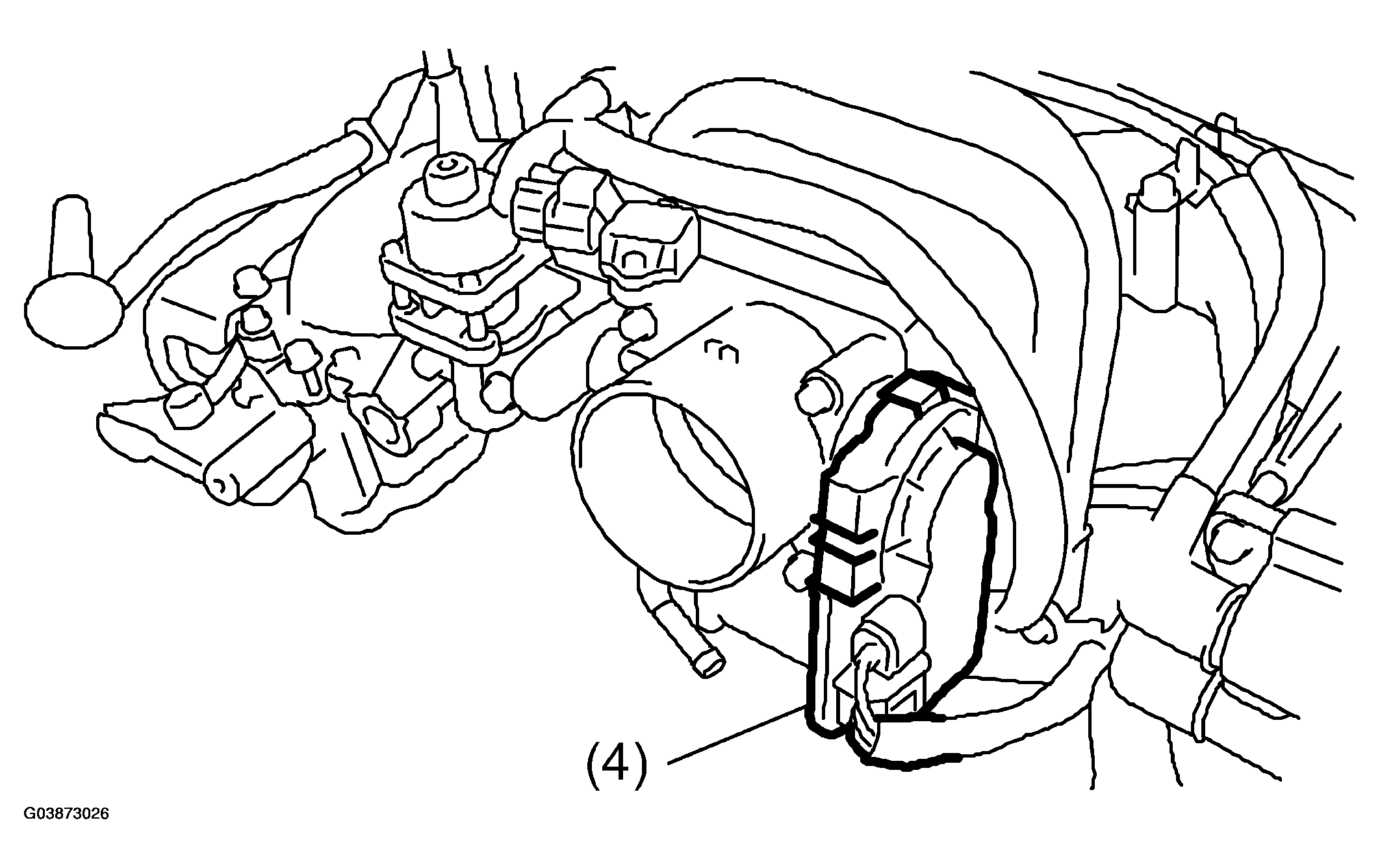

Fig 5: Identifying Throttle Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

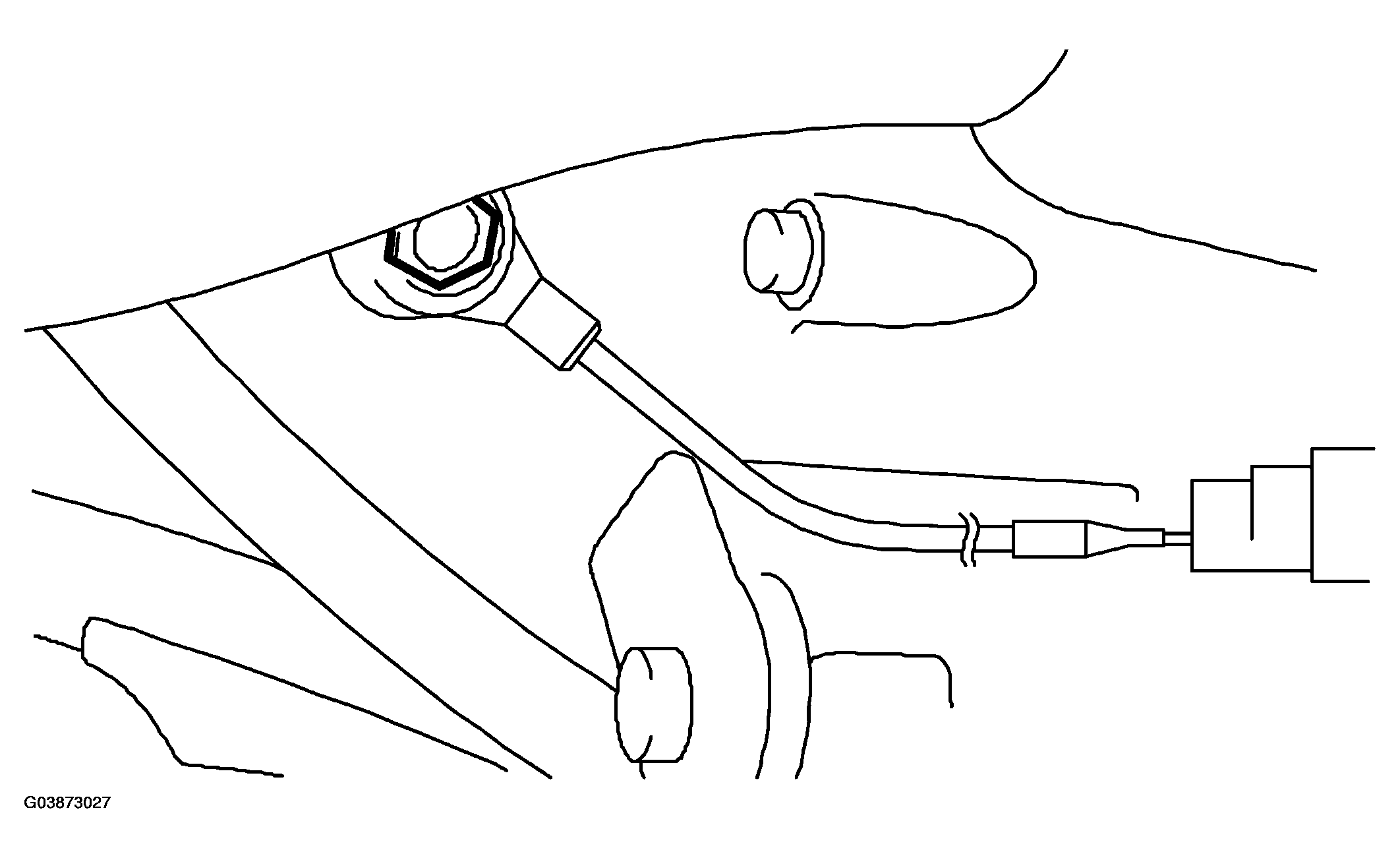

Fig 6: Identifying Knock Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

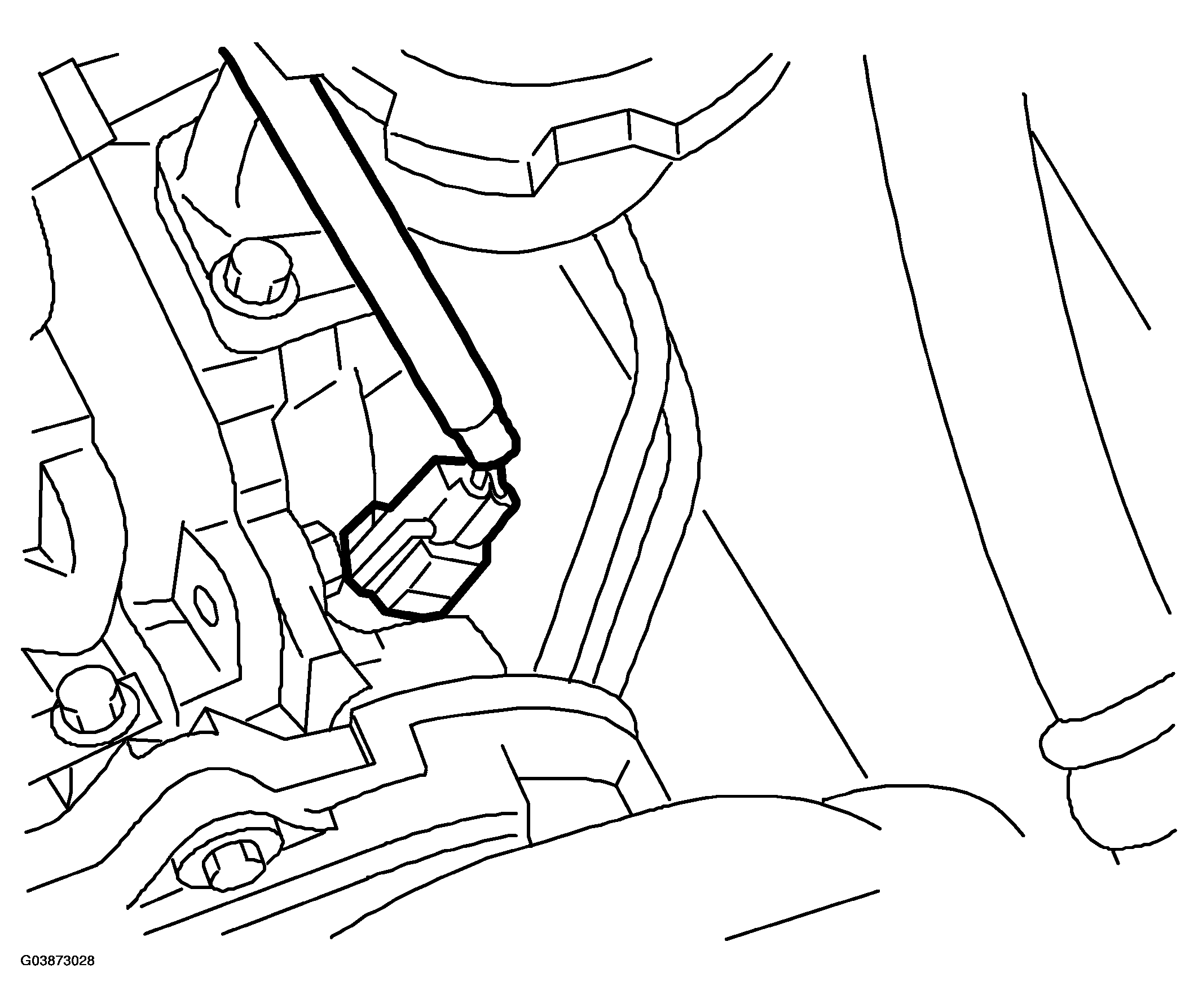

Fig 7: Identifying Camshaft Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

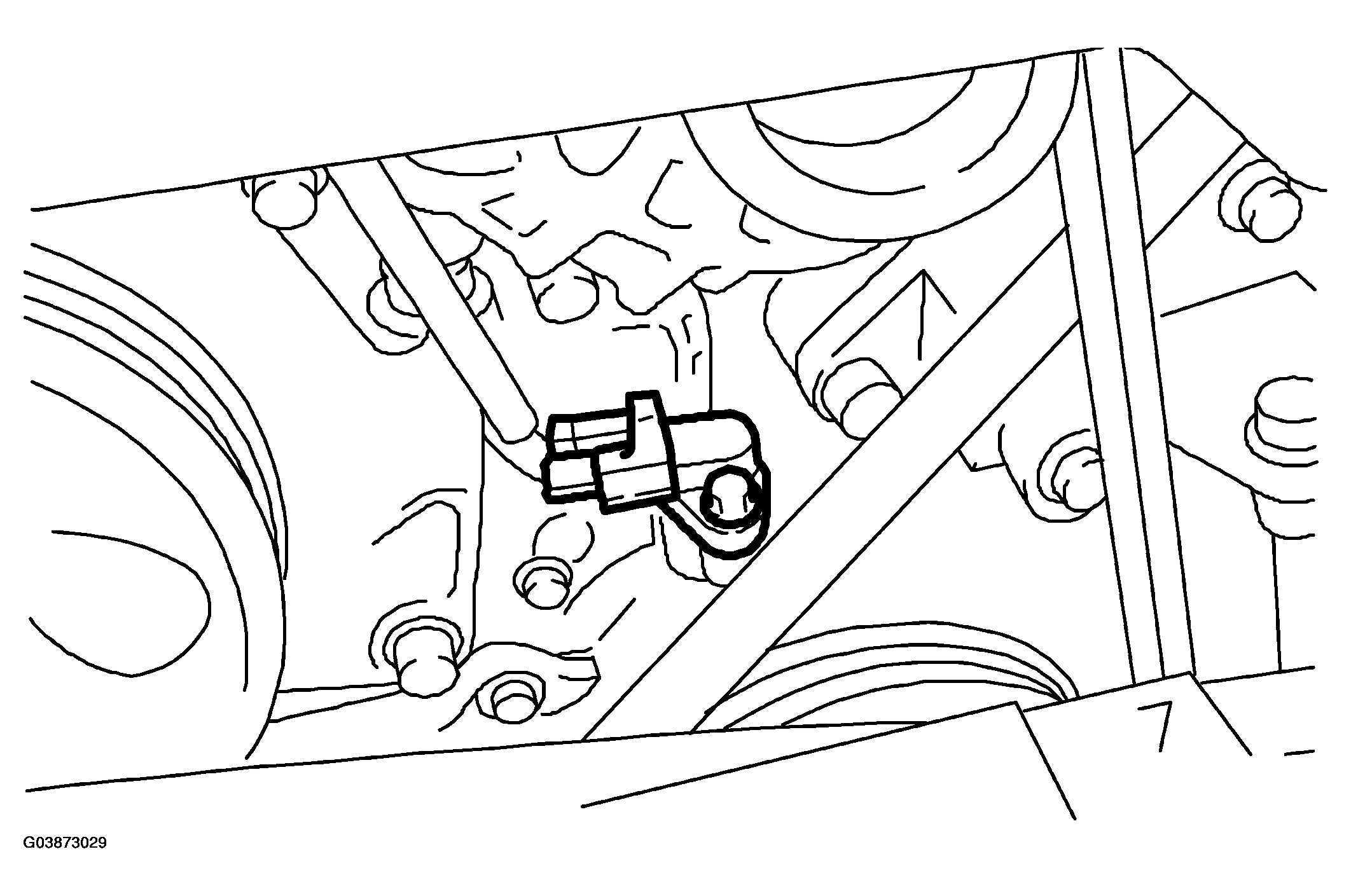

Fig 8: Identifying Crankshaft Position Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

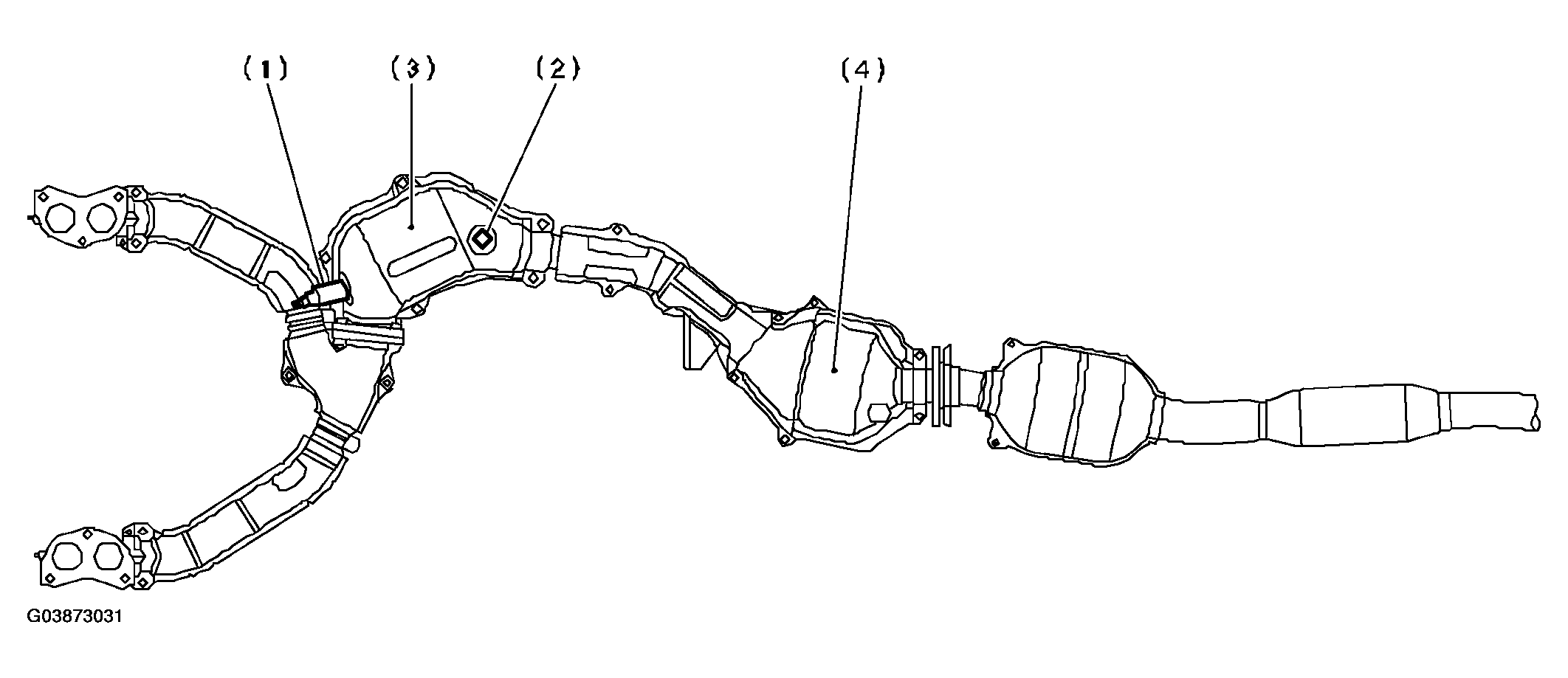

Fig 9: Locating Oxygen Sensors & Catalytic Converter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Front oxygen (A/F) sensor
2. Rear oxygen sensor
3. Front catalytic converter
4. Rear catalytic converter

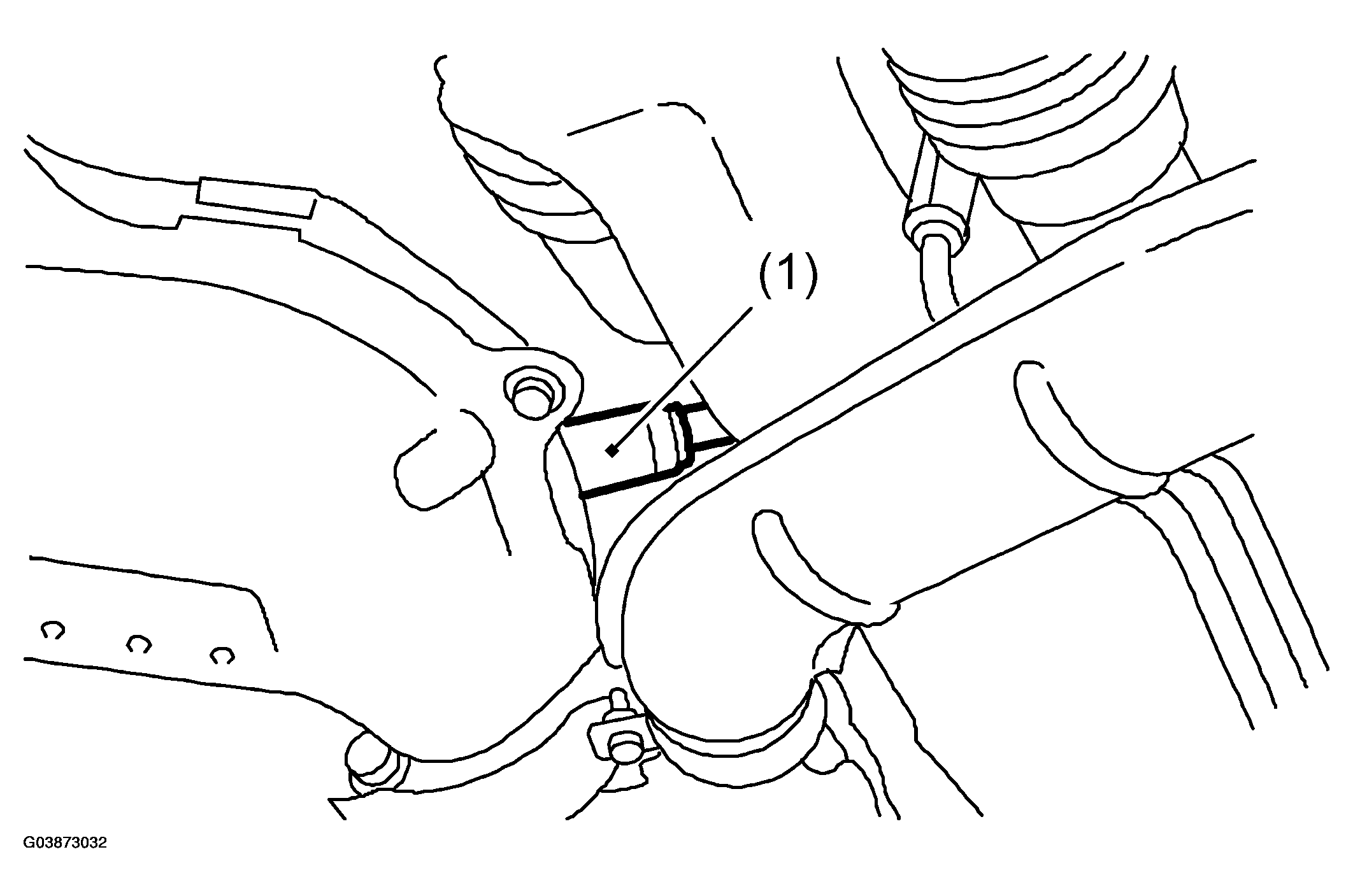

Fig 10: Identifying Front Oxygen (A/F) Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

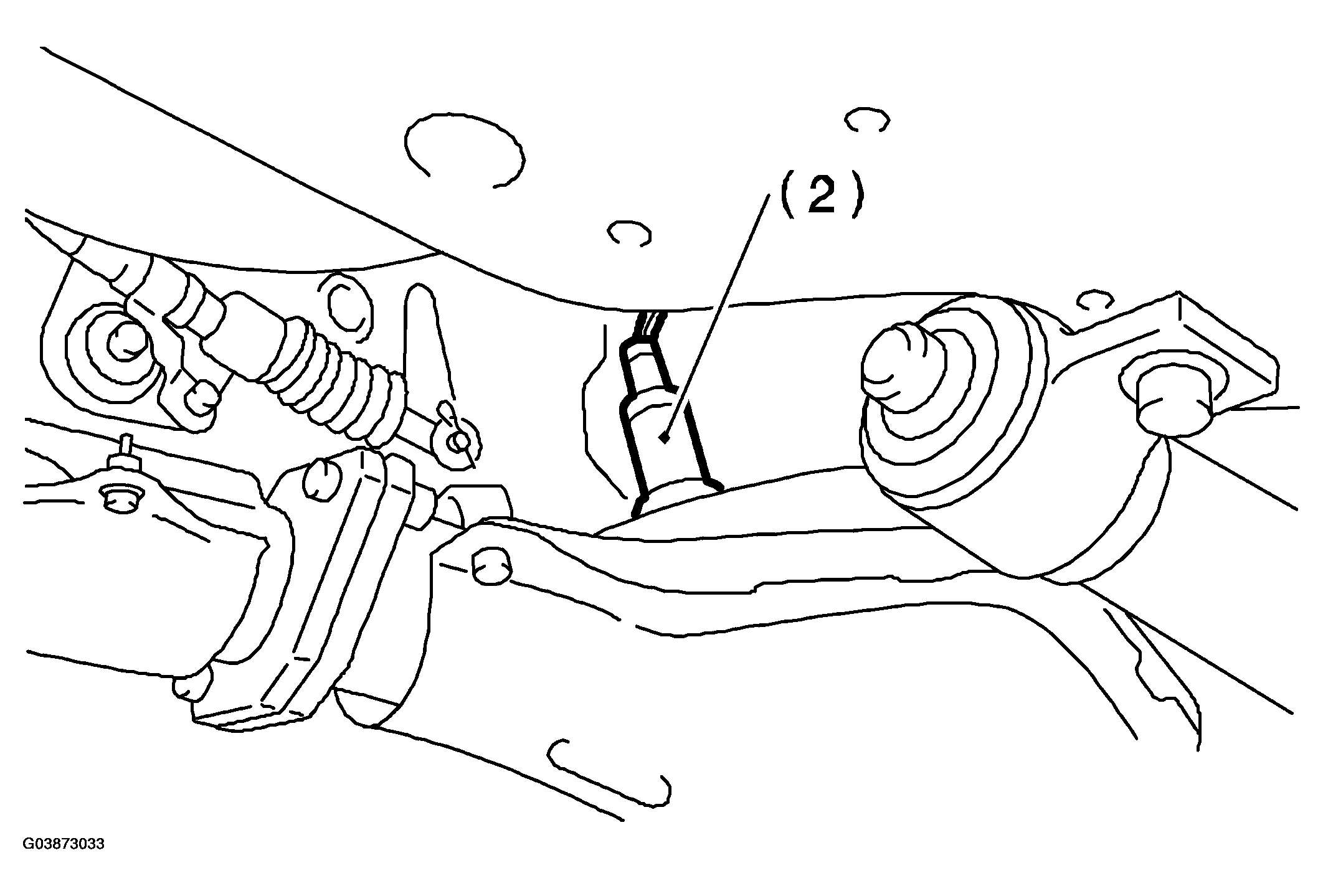

Fig 11: Identifying Rear Oxygen Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

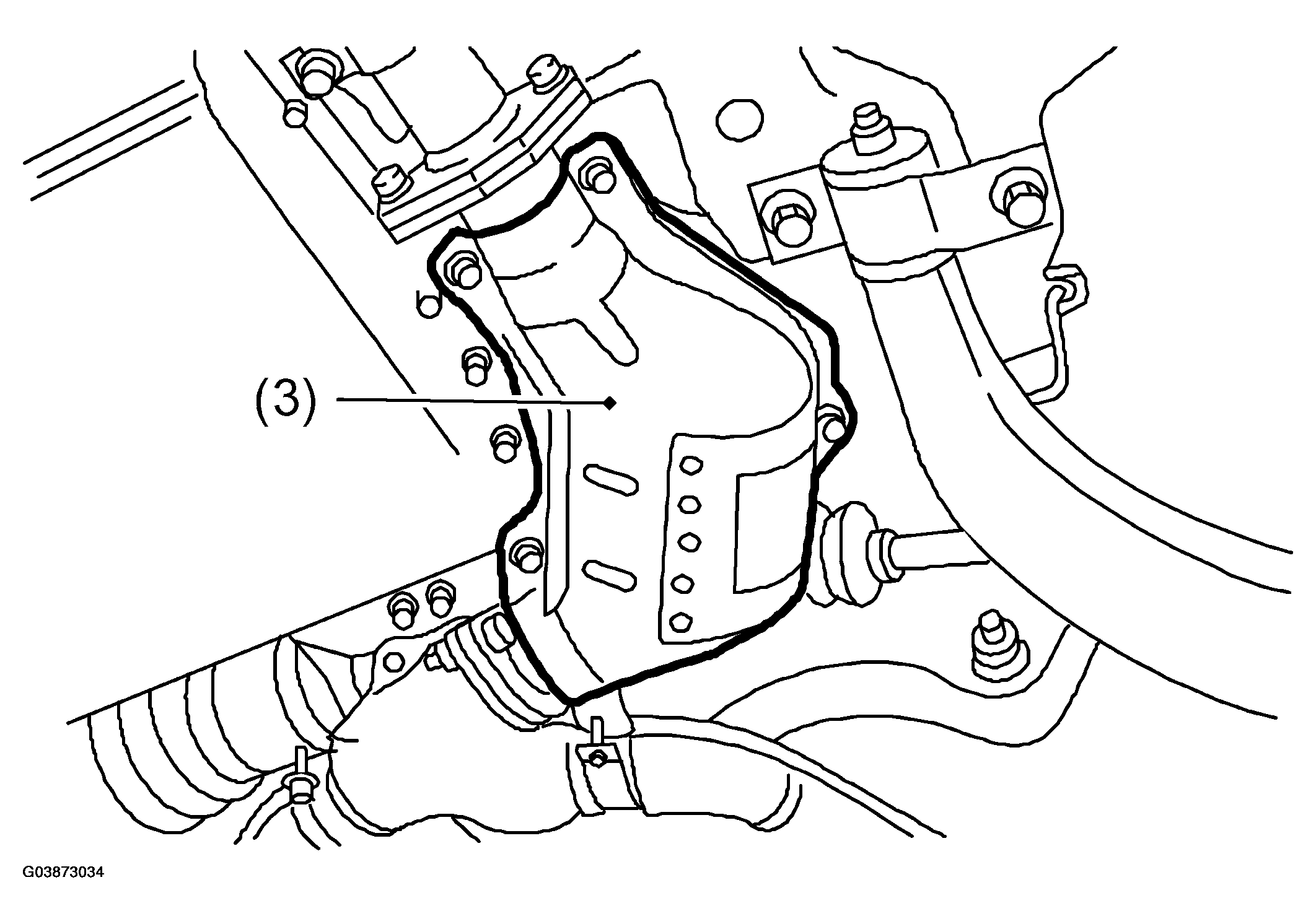

Fig 12: Identifying Front Catalytic Converter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

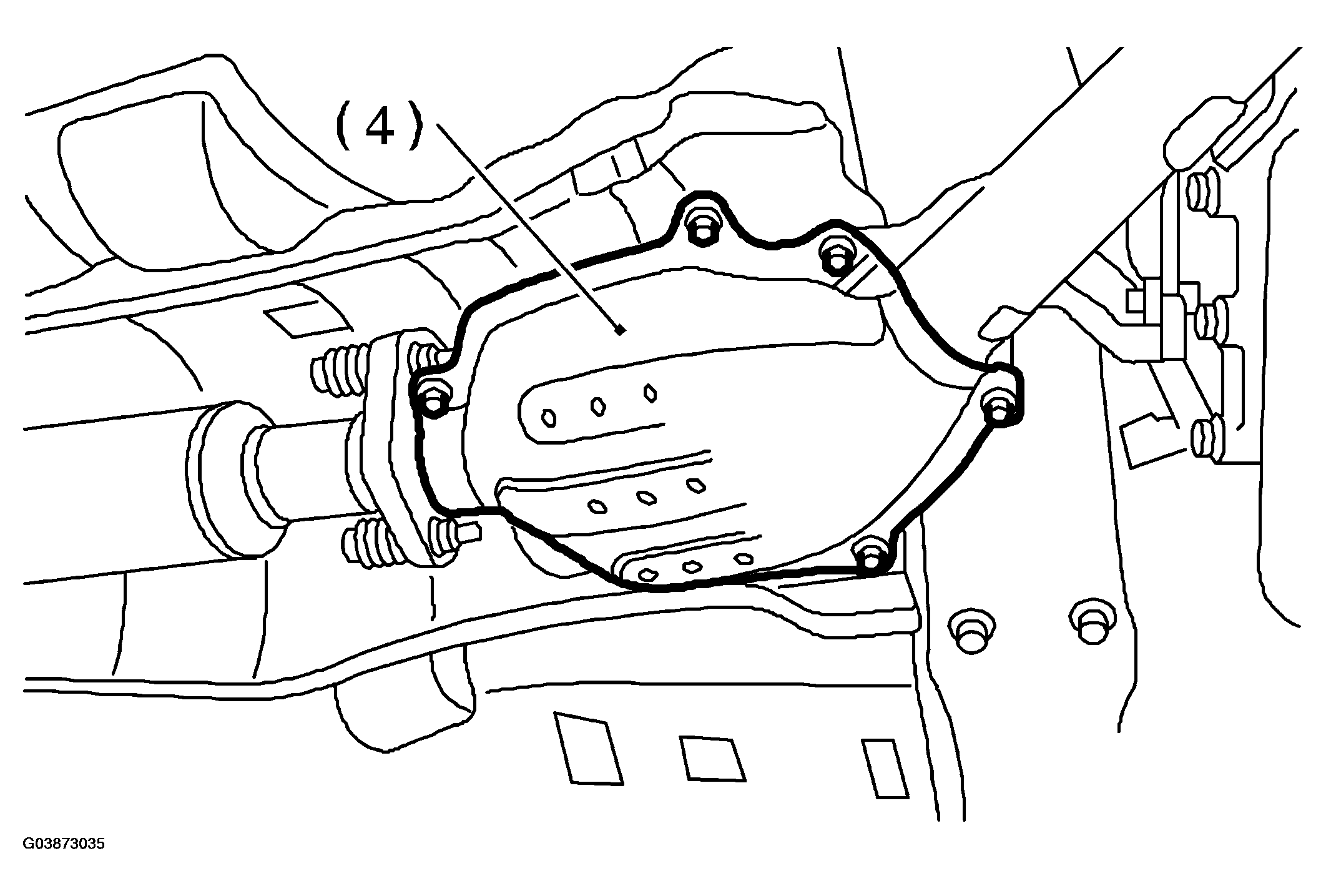

Fig 13: Identifying Rear Catalytic Converter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

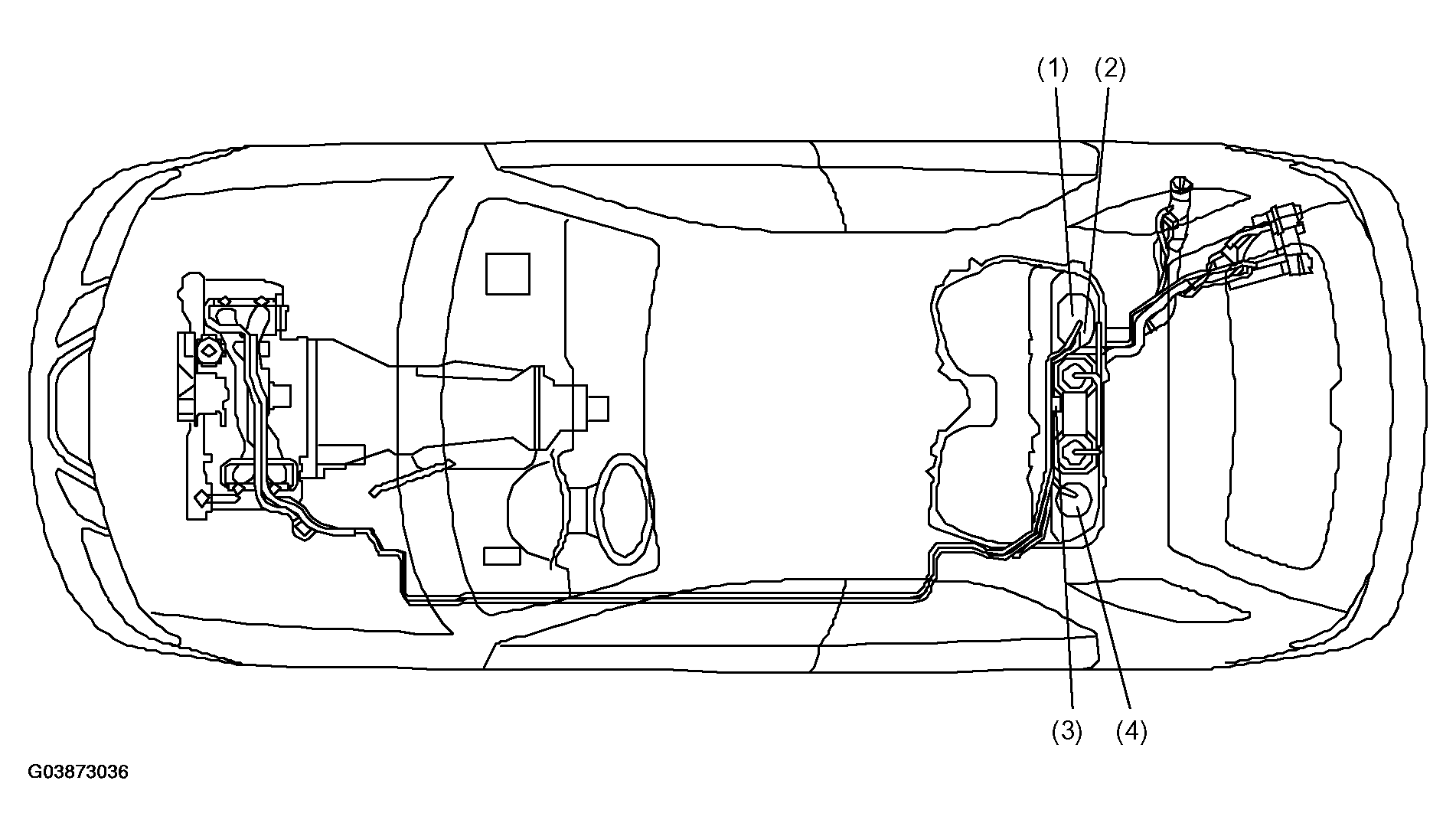

Fig 14: Locating Fuel Level, Fuel Temperature, Fuel Tank Pressure & Fuel Sub Level Sensors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Fuel level sensor
2. Fuel temperature sensor
3. Fuel tank pressure sensor
4. Fuel sub level sensor

Fig 15: Identifying Fuel Level Sensor & Fuel Temperature Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 16: Identifying Fuel Temperature Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

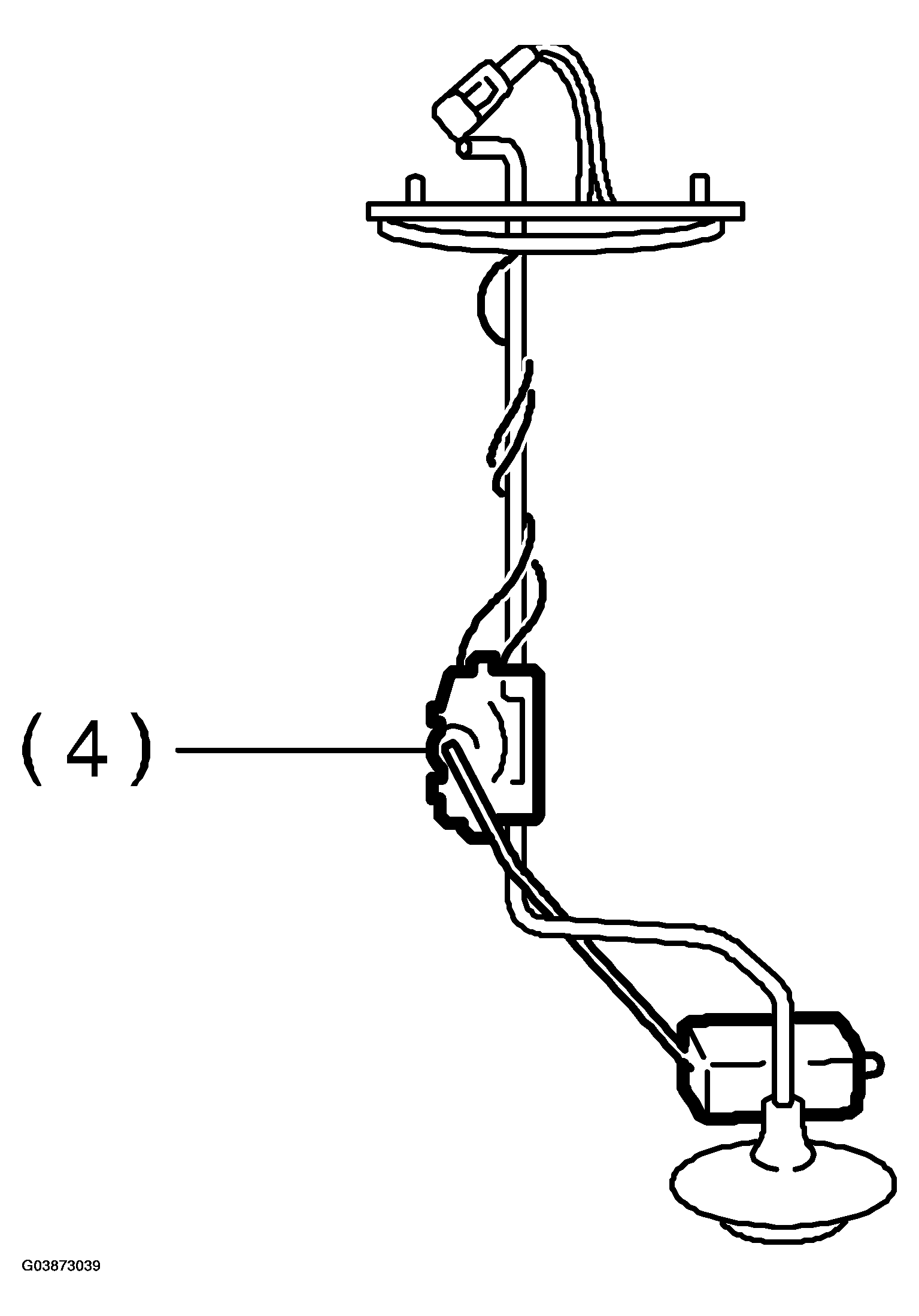

Fig 17: Identifying Fuel Sub Level Sensor

Courtesy of SAAB-SCANIA OF AMERICA, INC.
