To remove
- Open the hood.
- Remove the head restraint supports.
- Fold down the backrest.
- Remove the seat cover.
- Remove the rear lower cover from the front seat.
- Cut the cable tie holding the fixing to the spring mat on the rear of the upholstery.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

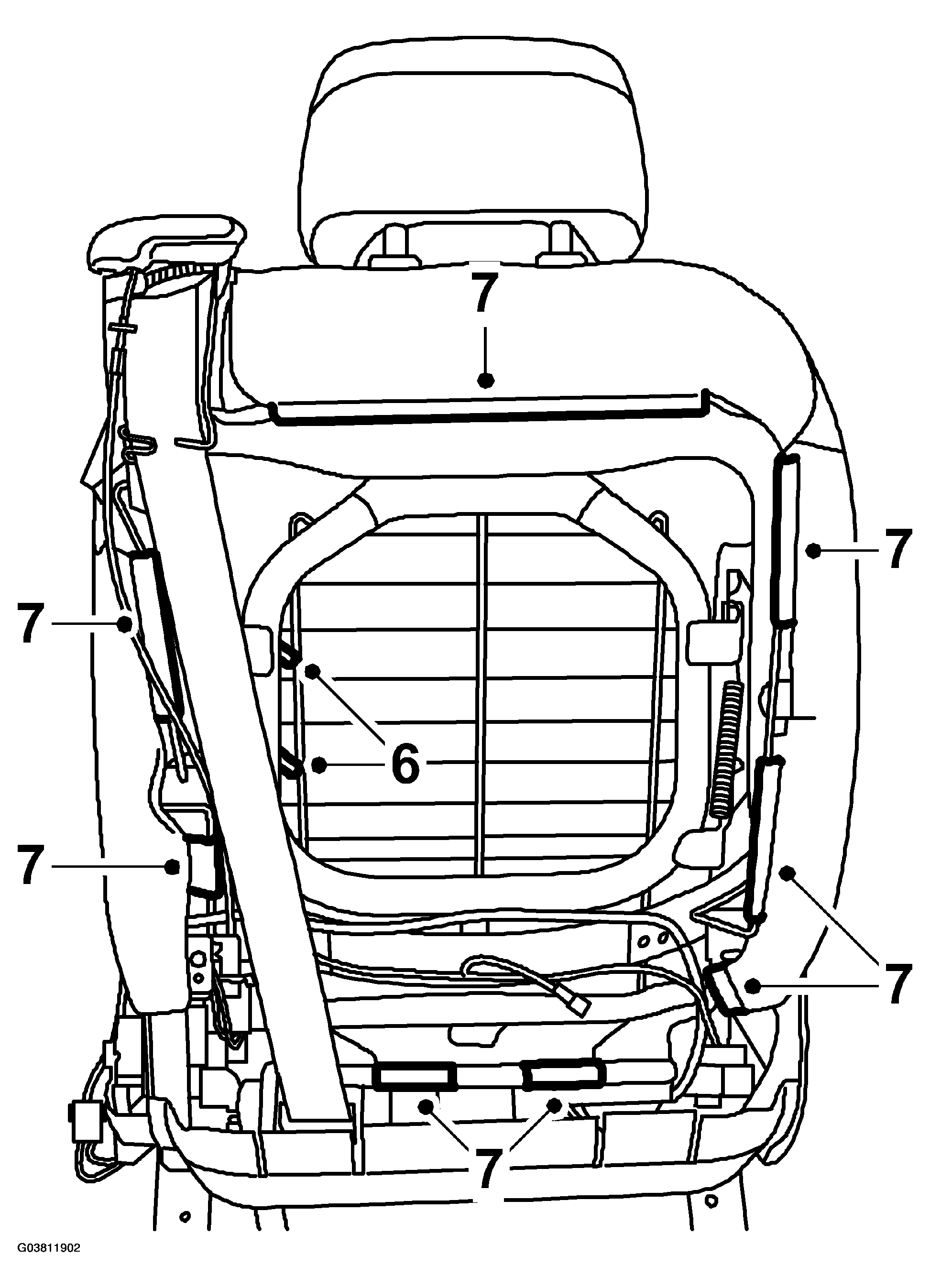

- Remove the trim strips.
- Remove the backrest upholstery and cushion.

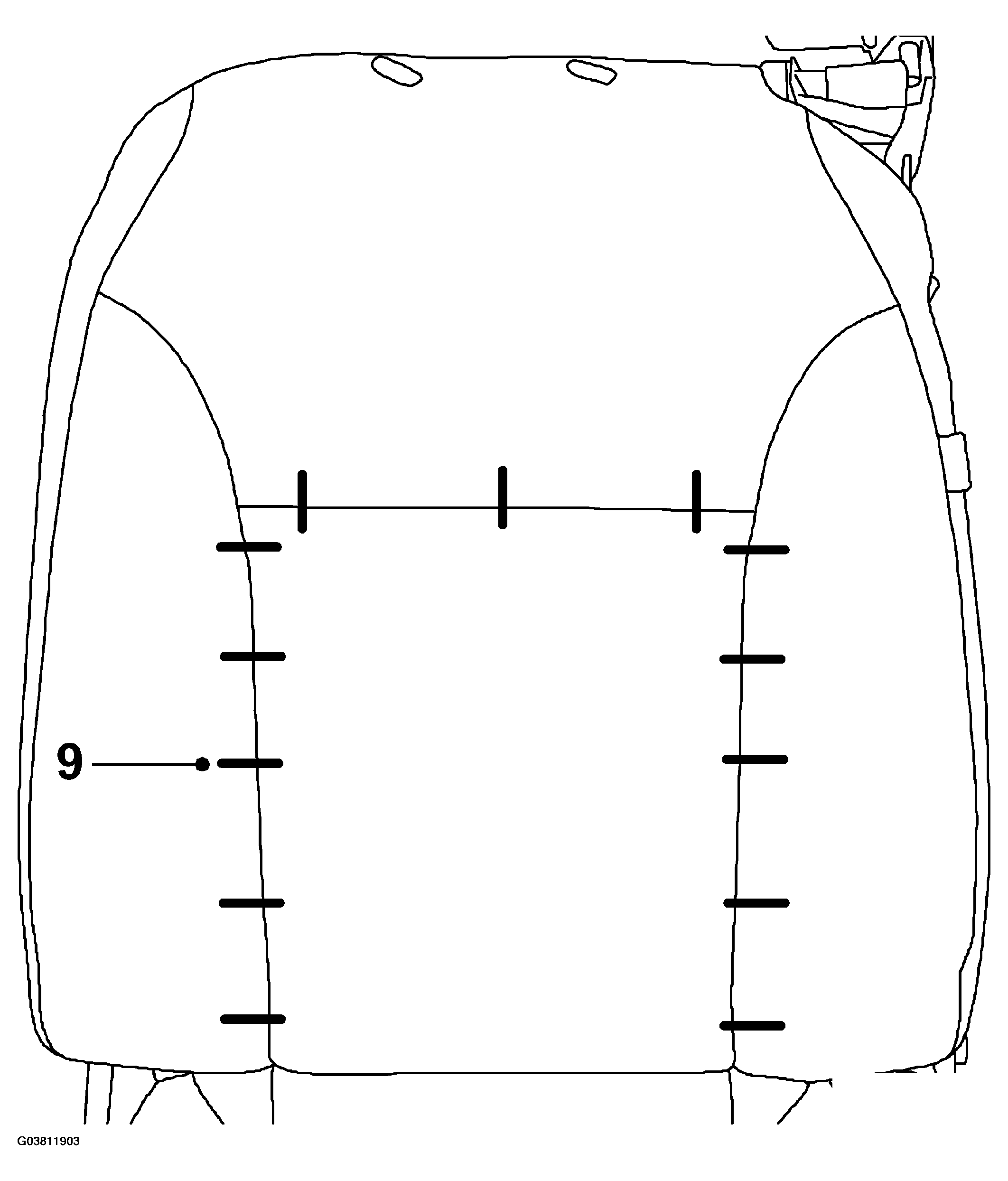

- Remove the fixing clips from the upholstery. Remove the seat trim.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
