To remove

WARNING: This page is about a different variant/trim than selected.
  1. Apply wing covers.
  2. Connect 88 19 096 BLEEDING EQUIPMENT  hose to the bleed nipple on the slave cylinder and draw out the brake fluid from the clutch system.

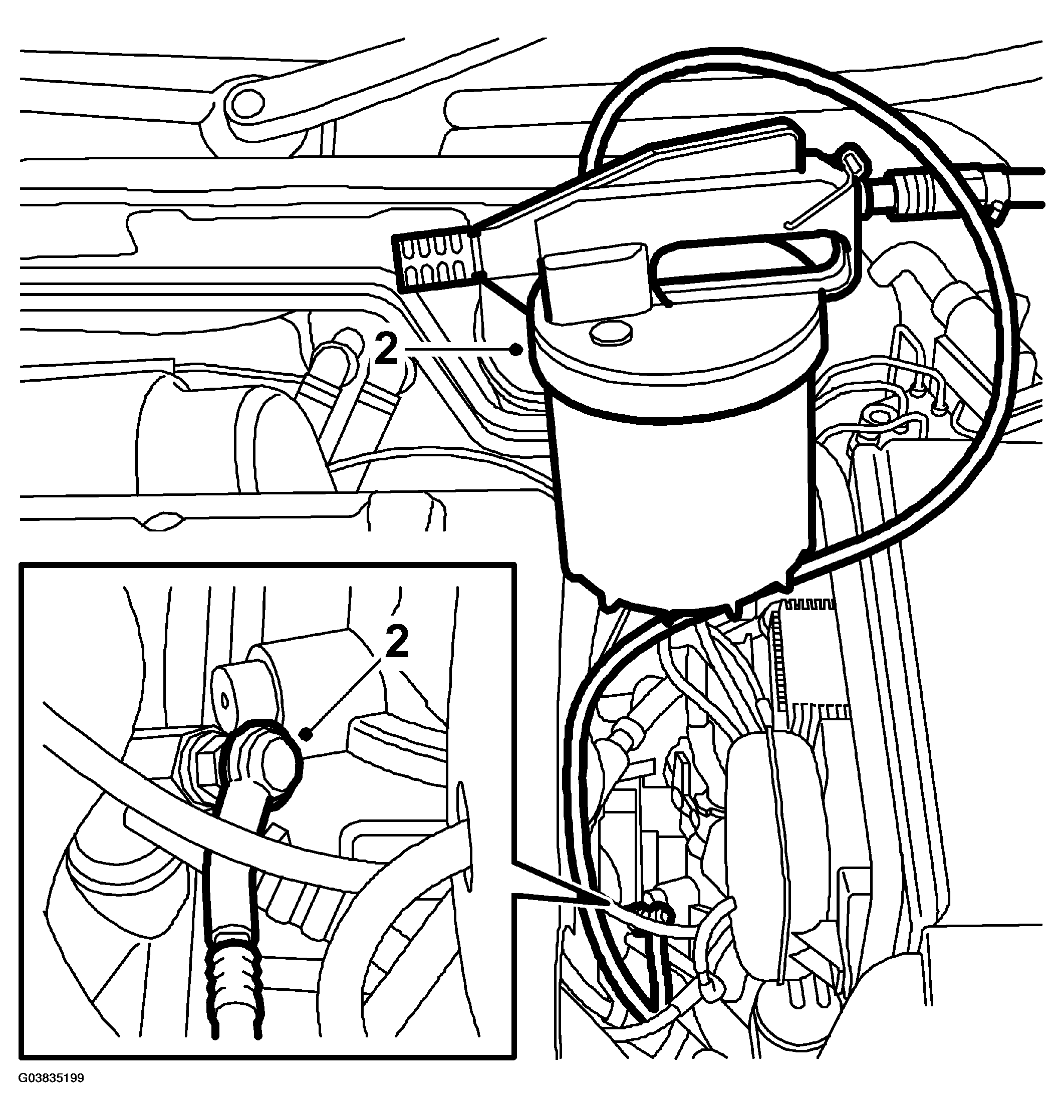

    Fig 1: Illustration For Step 2
    G03835199Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the accumulator from the master cylinder and the hose from the brake fluid reservoir.

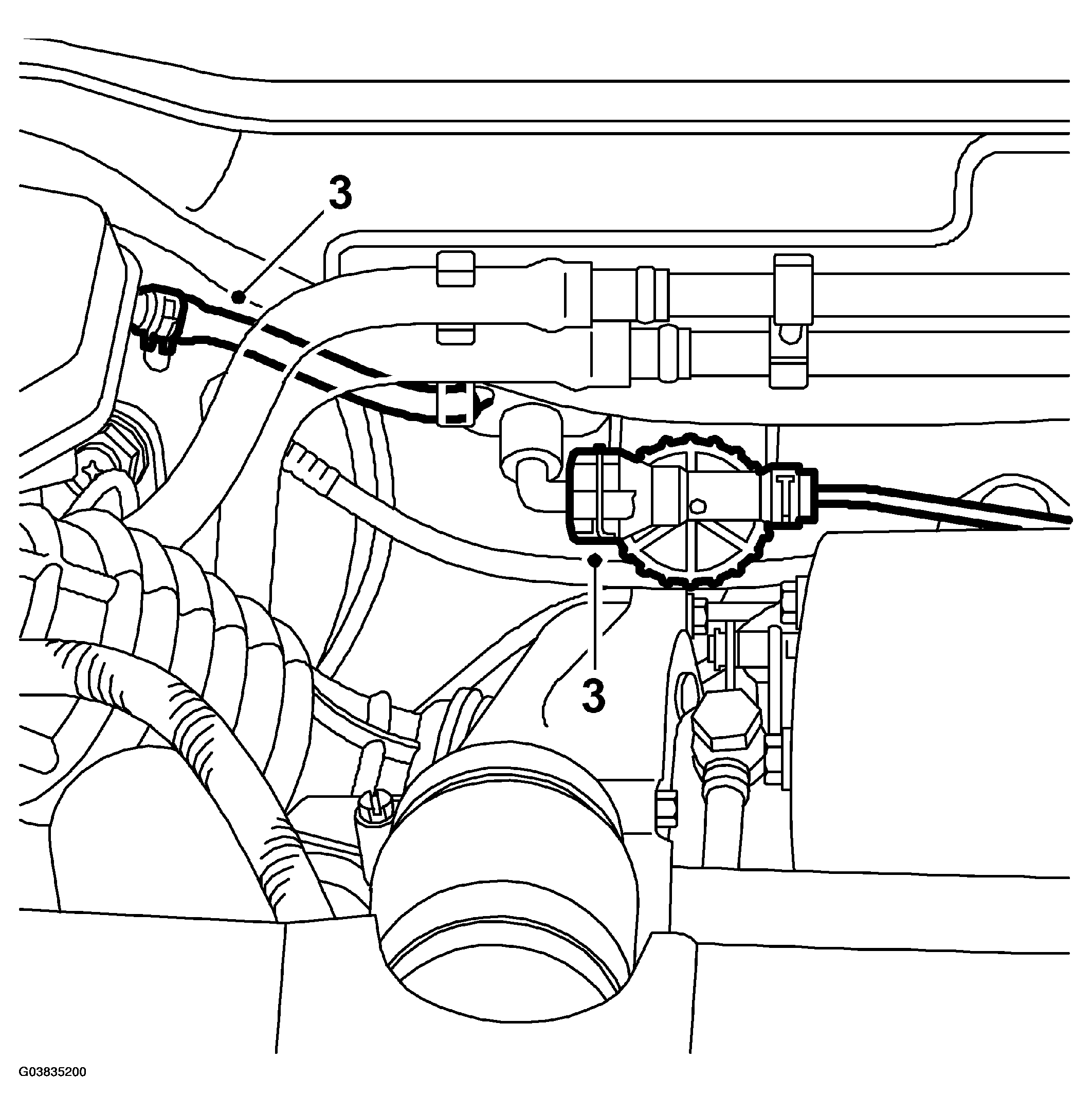

    Fig 2: Illustration For Step 3
    G03835200Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the centre console right-hand front side panel.

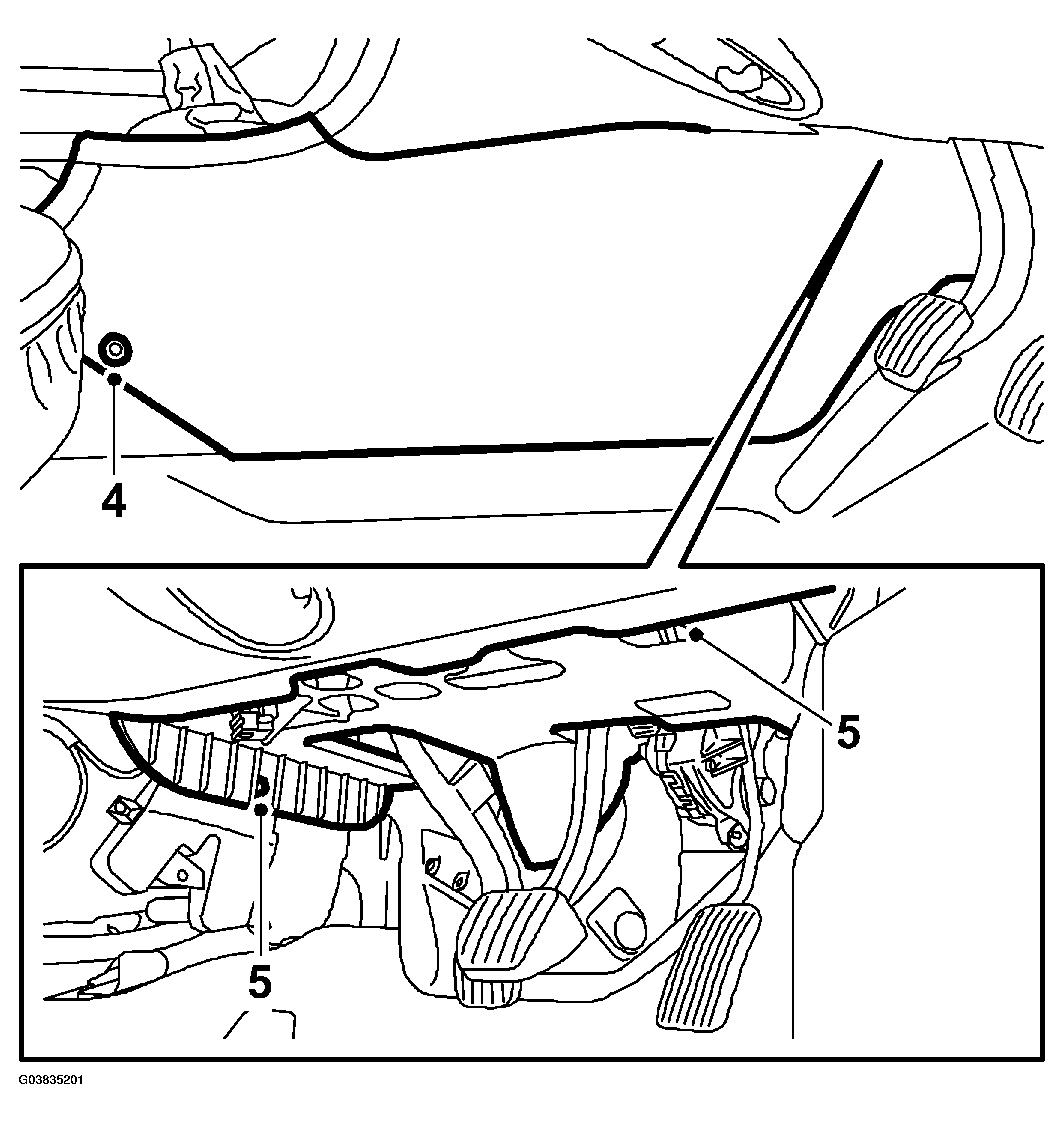

    Fig 3: Illustration For Step 4-5
    G03835201Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the data link connector and the lower dashboard panel.
  6. Remove both main cylinder nuts.

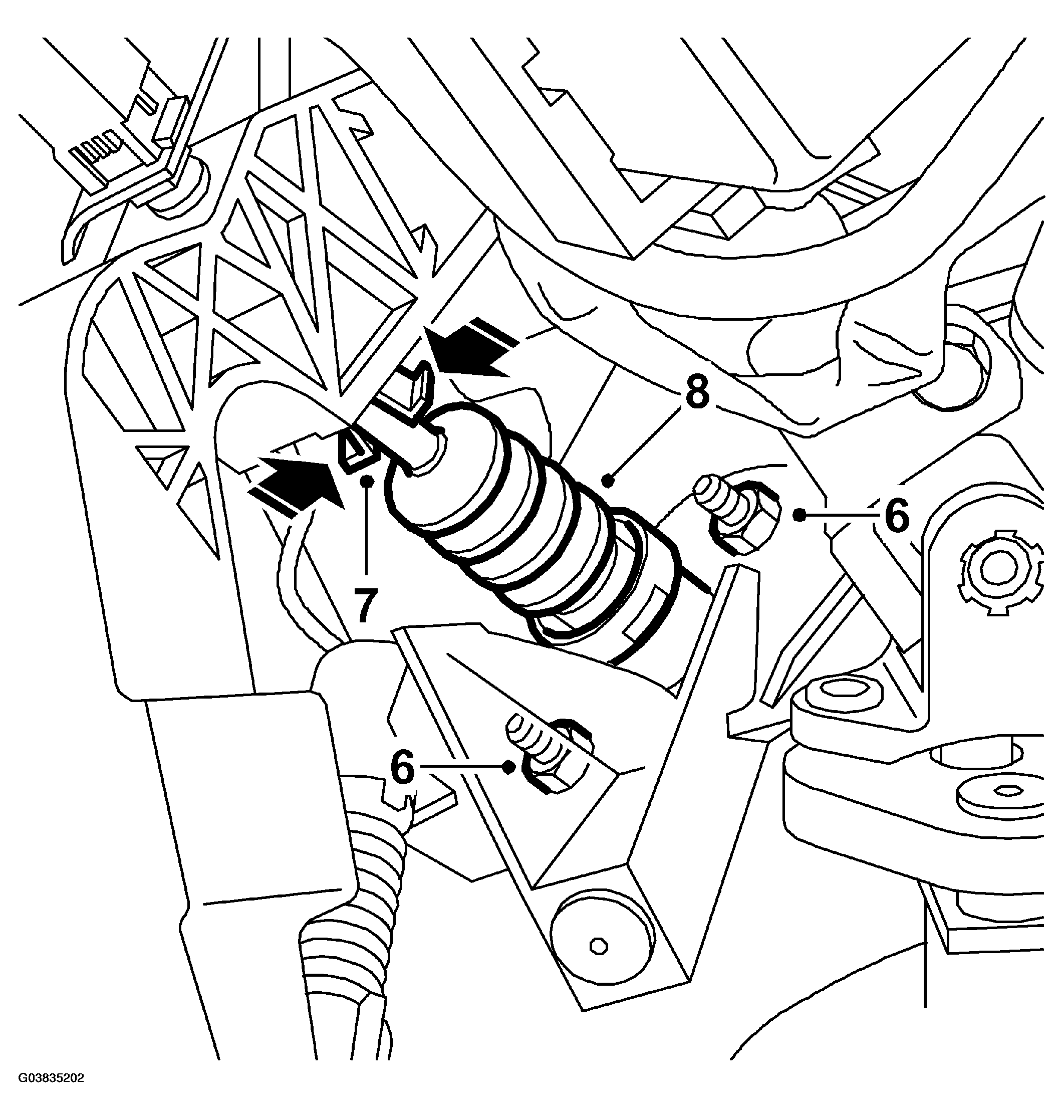

    Fig 4: Illustration For Step 6-8
    G03835202Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the pushrod from the clutch pedal. Use a pair of pliers with bent jaws.
  8. Remove the master cylinder.
