To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Plug in the control module connector.

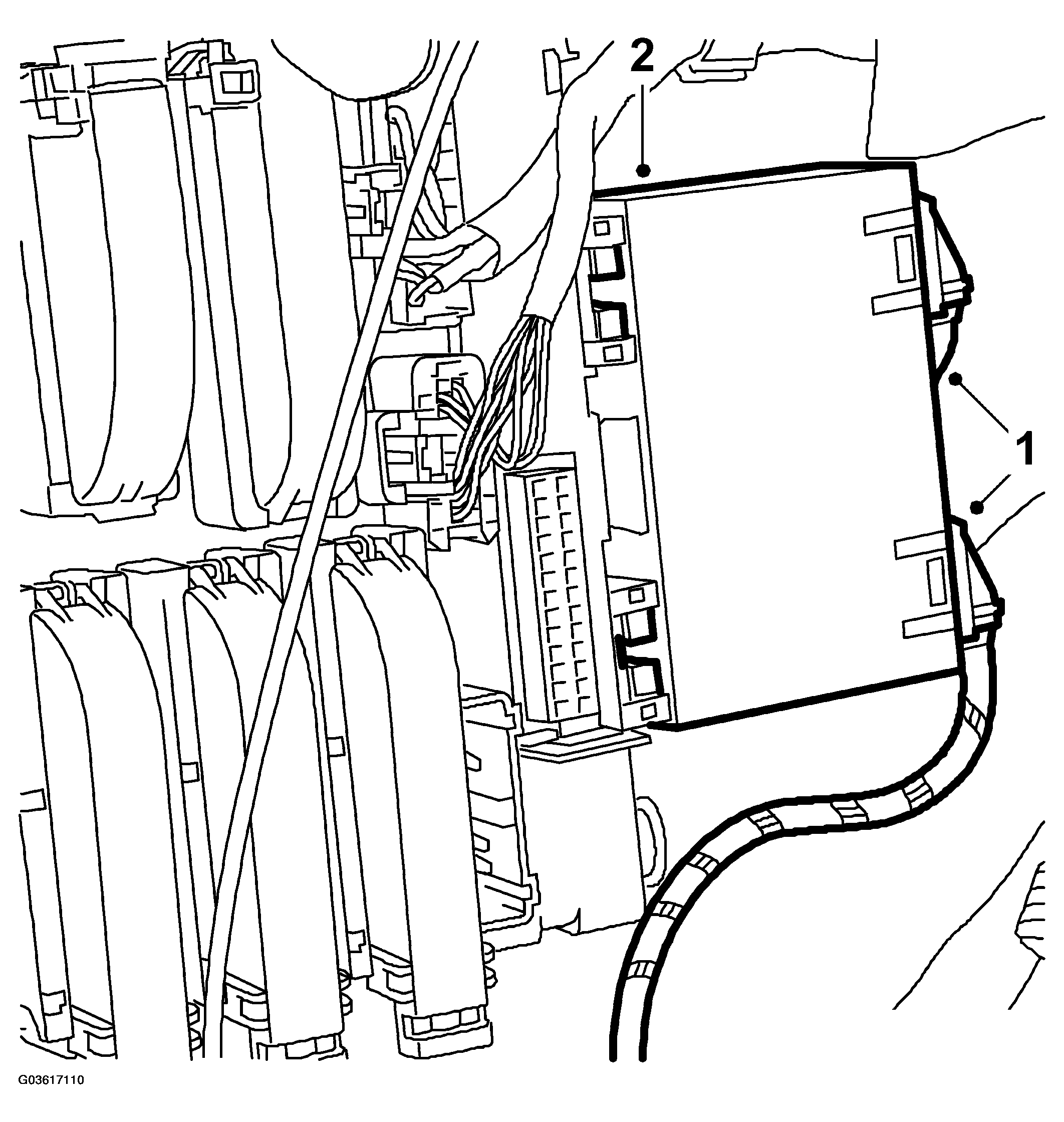

Fig 1: Illustration For Step 1 And 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Press the SPA module onto the main fuse box.
Replace the carpet.
Fit the clips securing the luggage compartment carpet.

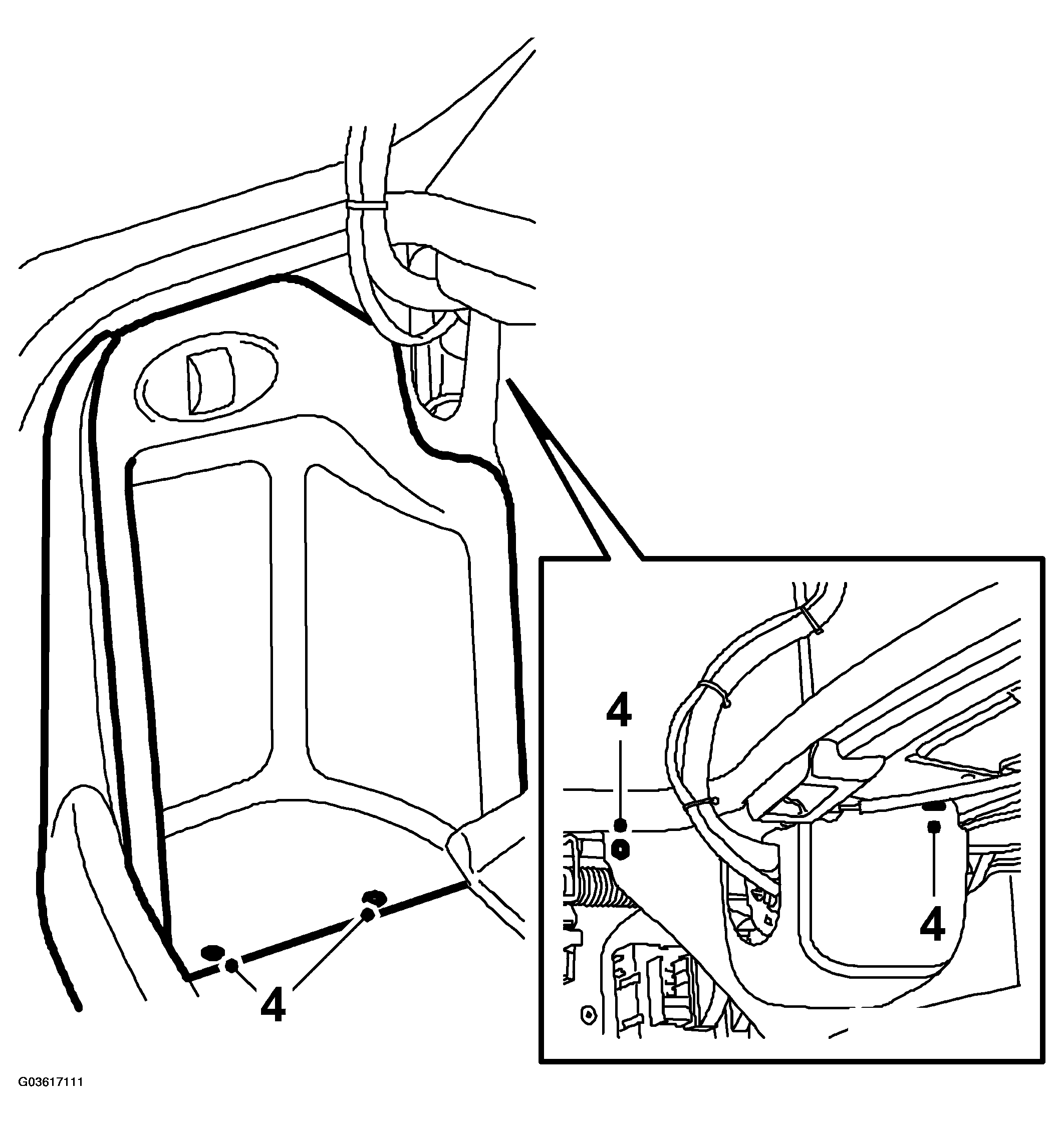

Fig 2: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Close the left-hand hatch in the luggage compartment.

Carry out procedures after changing a control module.
