To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the gasket sits correctly on the new control module.

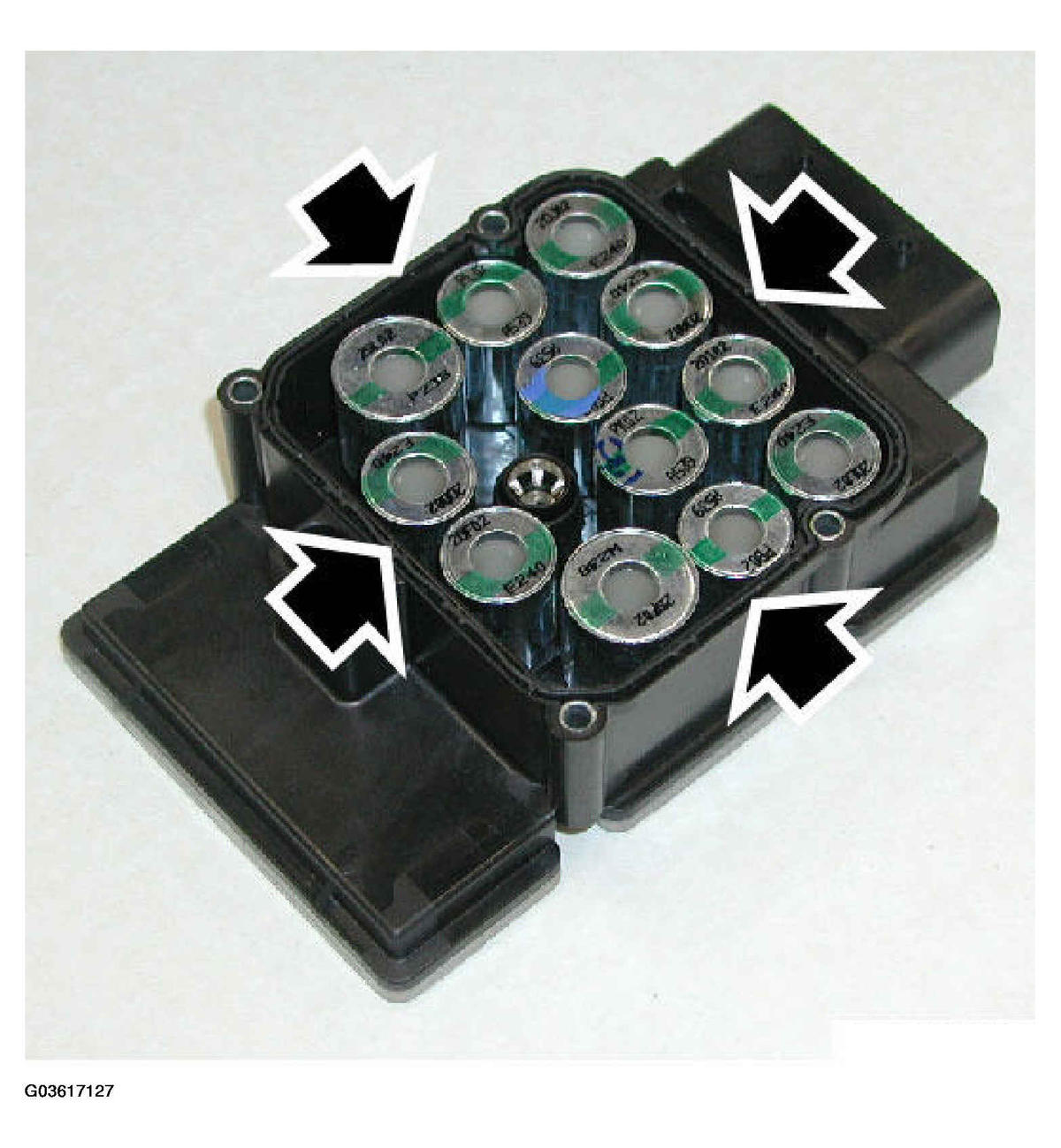

    Fig 1: Identifying Gasket Siting Position
    G03617127Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the inner bottom rear screw and fit the control module to the assembly.

    Fit the bolts.

    Tightening torque 2.5 N.m (1.8 lbf ft)

    NOTE: Tighten the bolt alternately.
  3. Put the assembly in place with the guide pin in the rubber bushing. Make sure the brake pipes are secured in the clips on the MacPherson strut tower.

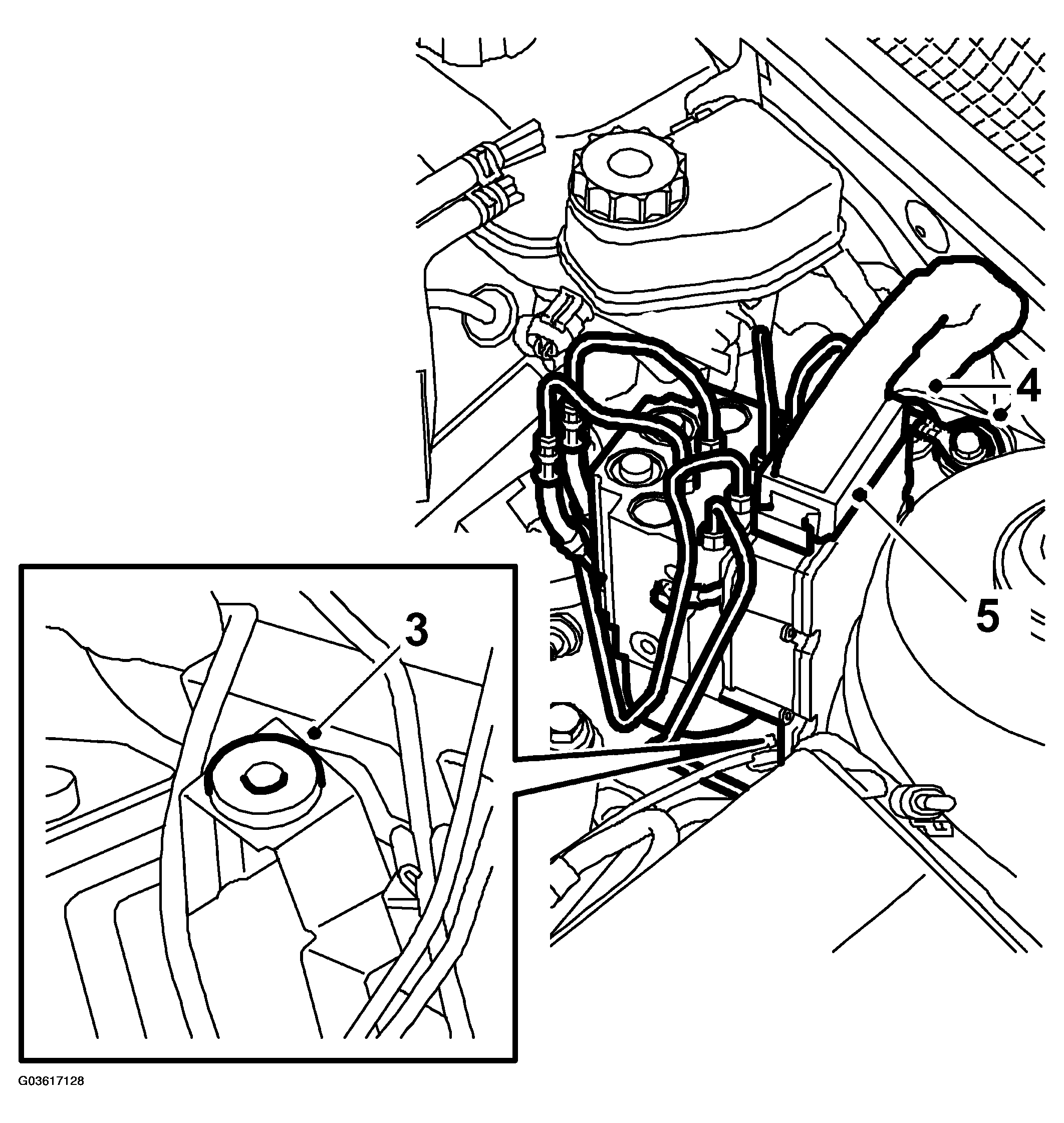

    Fig 2: Illustration For Step 3 To 5
    G03617128Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the bolts and the ground line to the spring strut (on cars with ground line). Make sure the washer is in place under  the cable terminal.

    Tightening torque 25 N.m (18 lbf ft)

    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  5. Attach the connector to the control module.
  6. Refit the battery cover and battery.
  7. Carry out Procedure after disconnecting the battery.
  8. If control module is changed:  Carry out the procedure for changing the control module.
