To remove

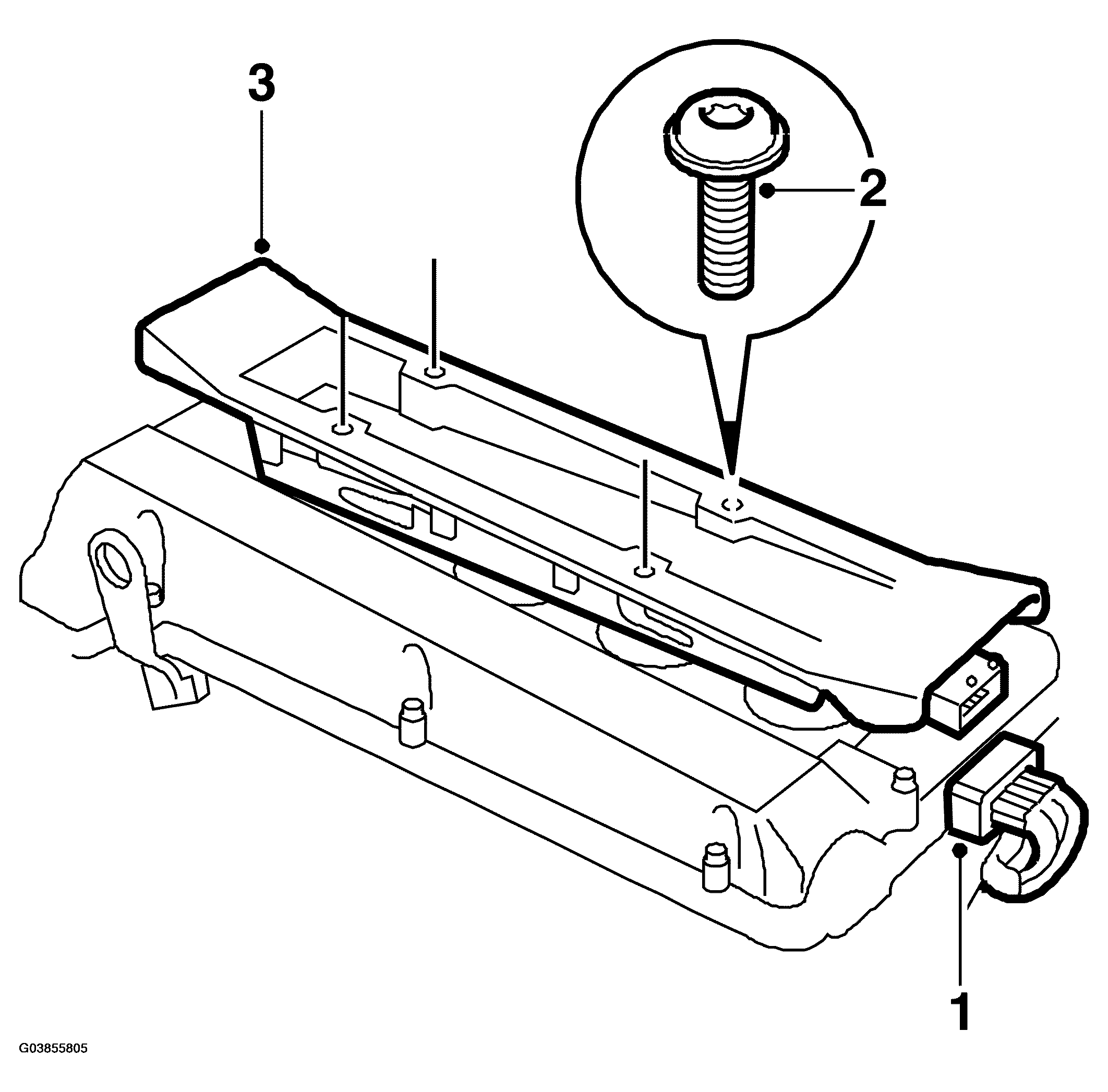

Fig 1: Illustration For Steps 1-3
G03855805Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Unplug the 10-pin ignition discharge module connector.
  2. Remove the 4 screws.
  3. Lift up the module.
