Fuel Pressure Regulator

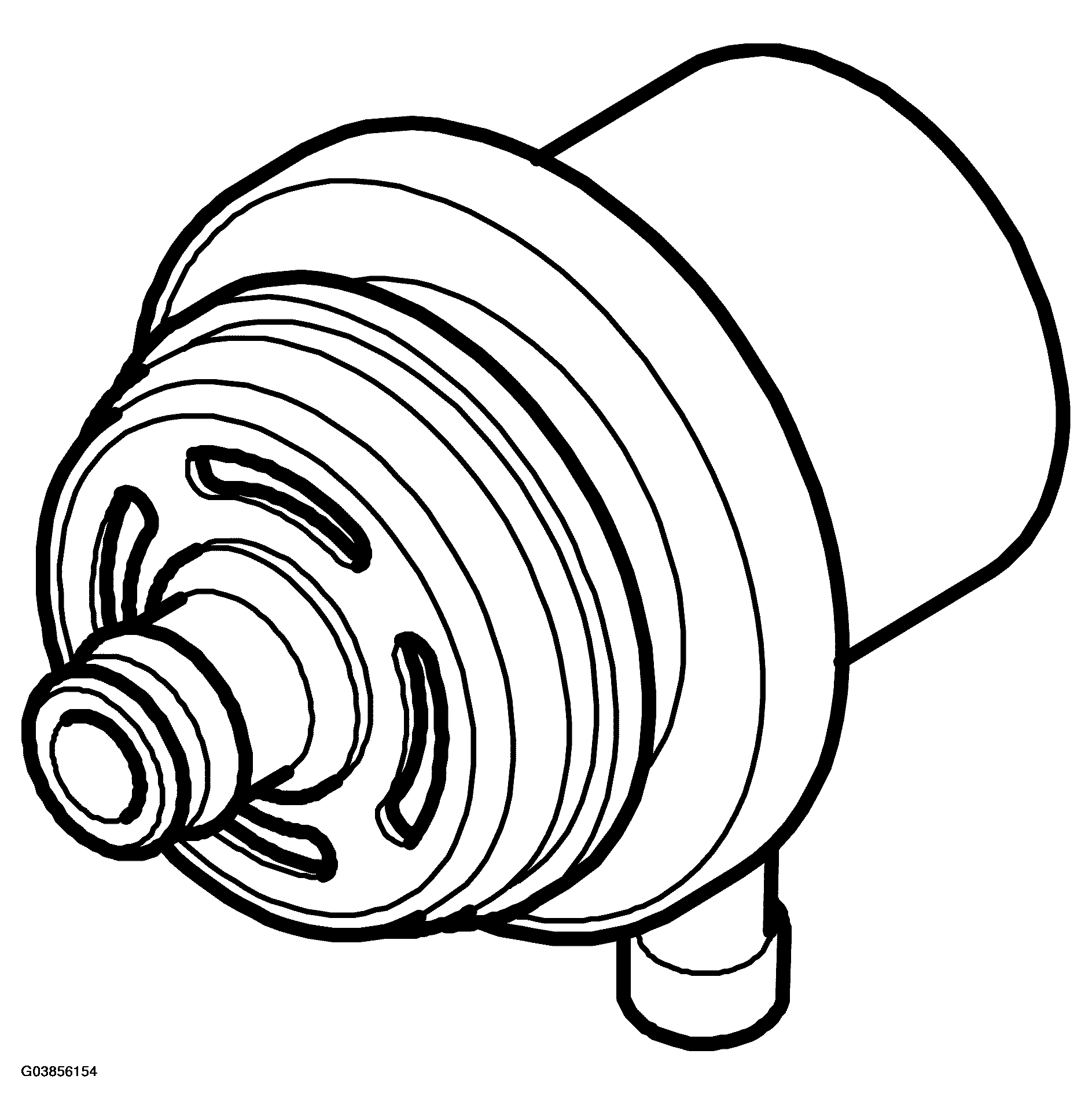

Fig 1: Identifying Fuel Pressure Regulator
G03856154Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE REGULATOR - TECHNICAL DATA

Fuel pressure 3.0+/-0.1 bar
Pressure, air side Connected to intake manifold
