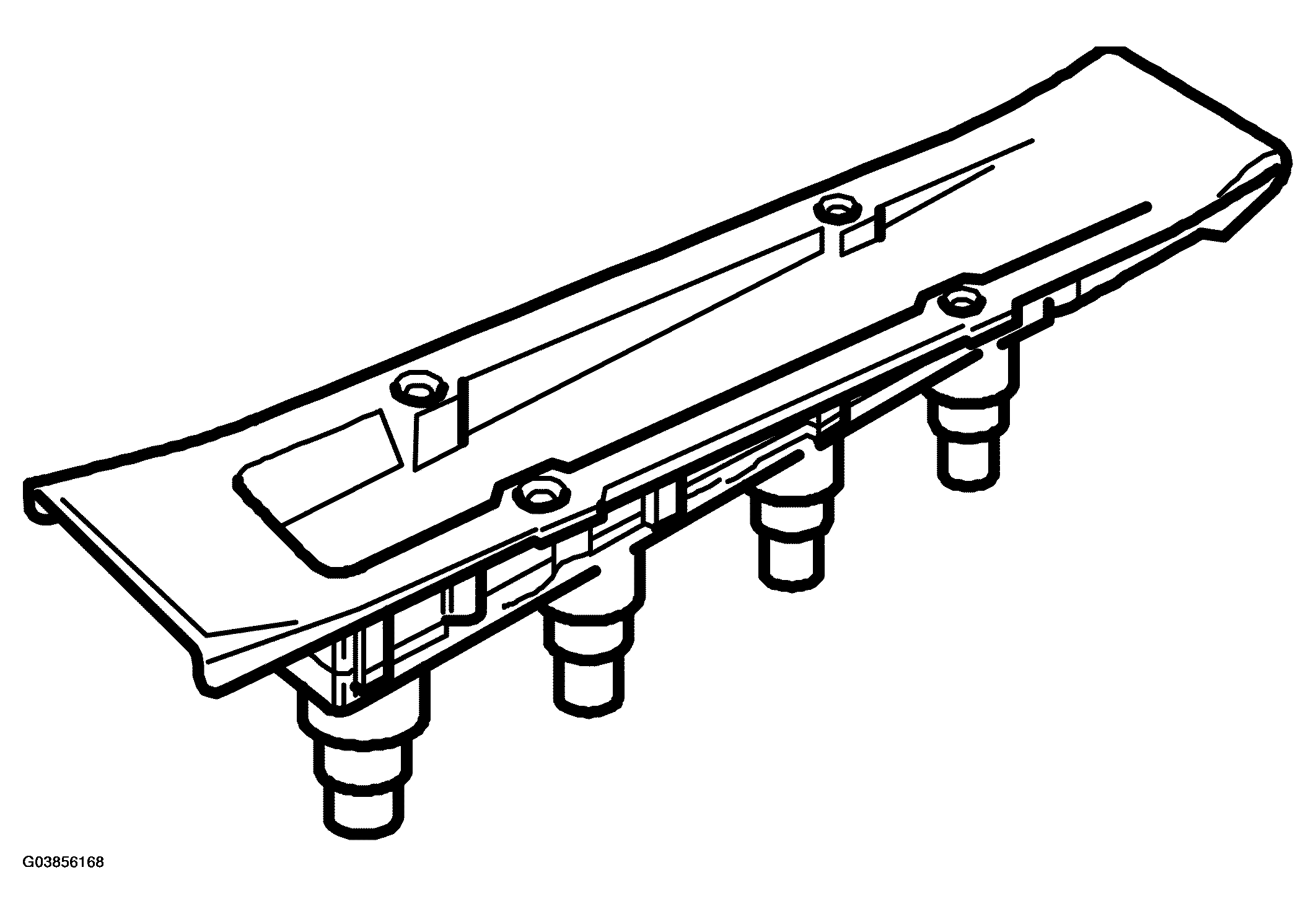

Ignition Discharge Module (346)
IGNITION DISCHARGE MODULE - TECHNICAL DATA
| Location | On camshaft cover | |
| No. of pins | 10 | |
| Power supply | V | 12 |
| Capacitor voltage | V | 400 |
| Ignition voltage, max. | V | 40000 |
| Firing order | 1-3-4-2 | |
| Ionization voltage | V | 80 |
NOTE:
Cars with T7 LEV must be fitted with the TK 3.4 D ignition discharge module only (from MY00) but the new module may be fitted on older models.
