To remove

  1. Remove the battery cover and the battery.

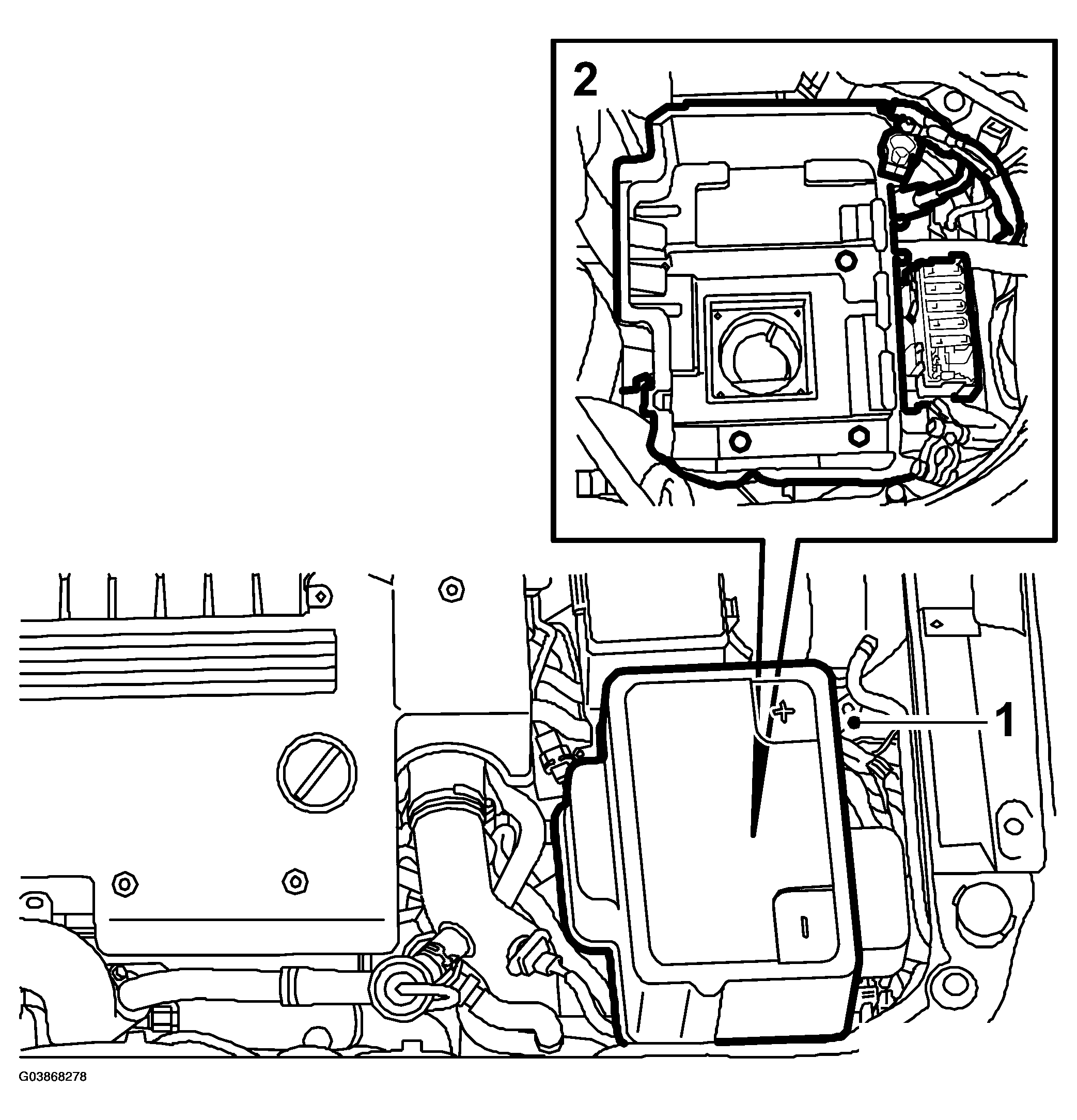

    Fig 1: Illustration For Steps 1-2
    G03868278Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the MAXI fuse holder from the battery tray and place it to one side. Remove the battery tray.
  3. Undo the battery cable bracket.
  4. Clean the area round the sensor. Remove the sensor's retaining bolt.
  5. Remove the sensor.

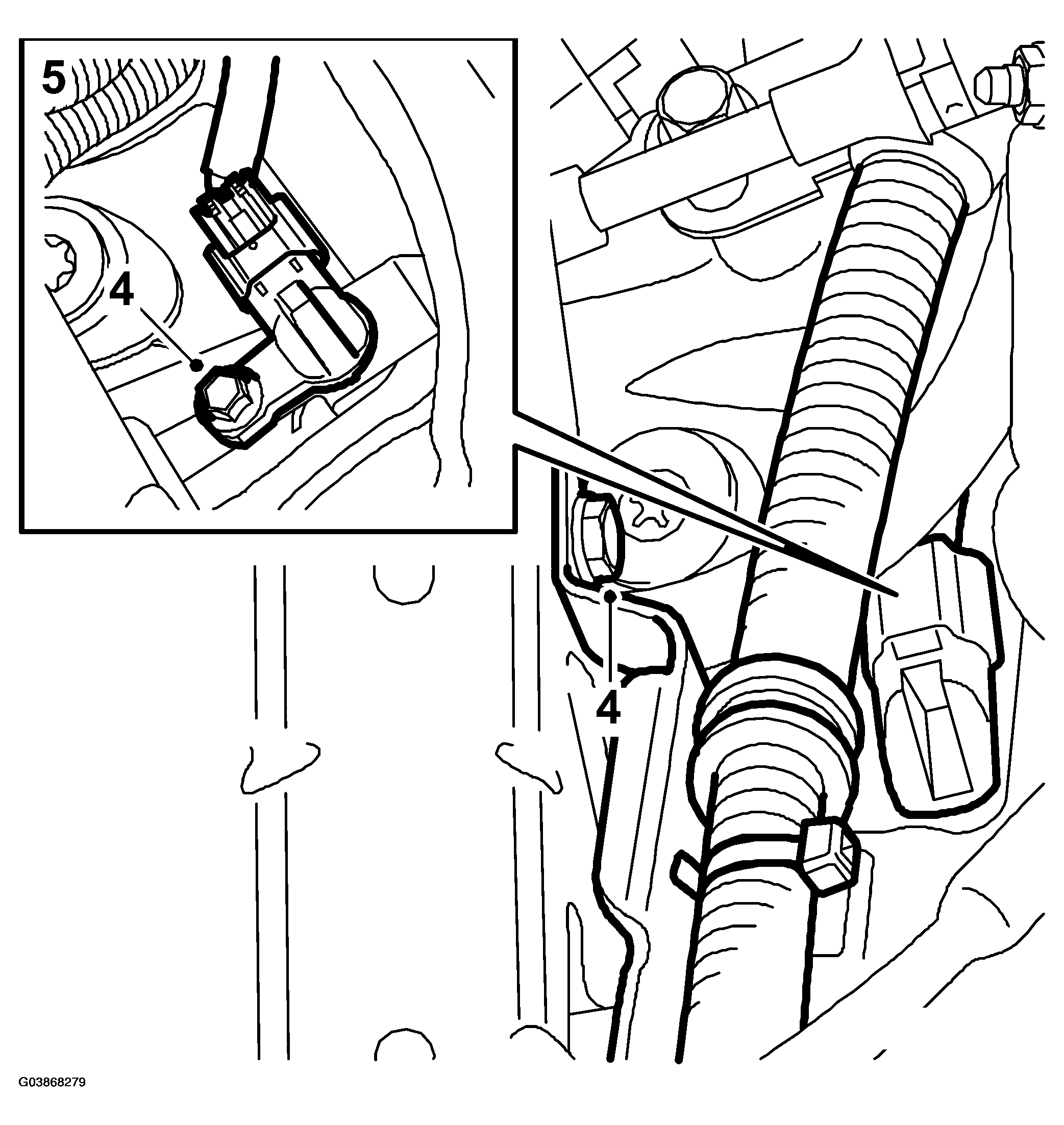

    Fig 2: Illustration For Steps 4-5
    G03868279Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Unplug the connector.
