To remove

  1. Remove the transmission. See COMPLETE TRANSMISSION
  2. Lift out the torque converter.

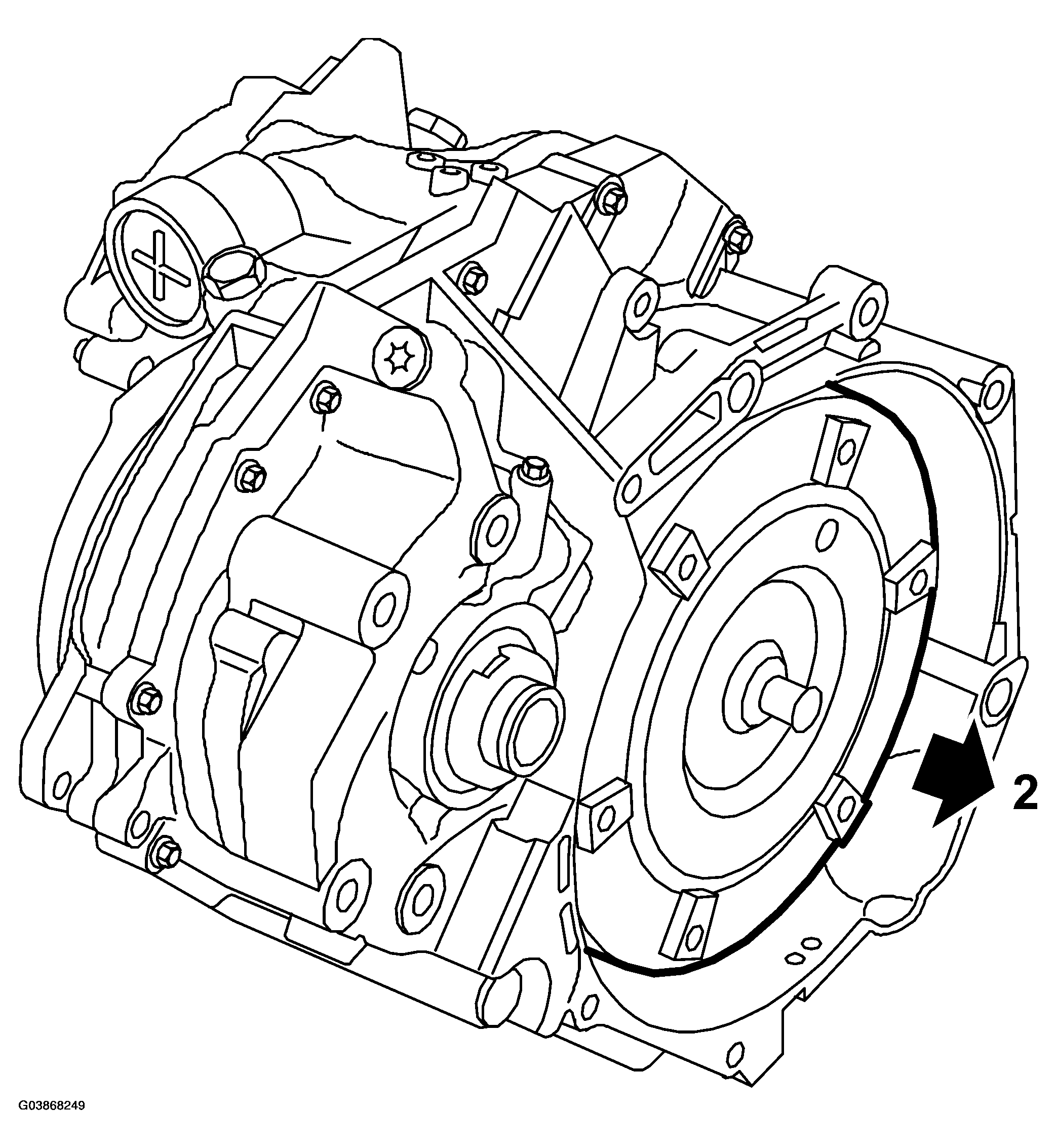

    Fig 1: Illustration For Steps 2
    G03868249Courtesy of SAAB-SCANIA OF AMERICA, INC.
