Sensor, input speed

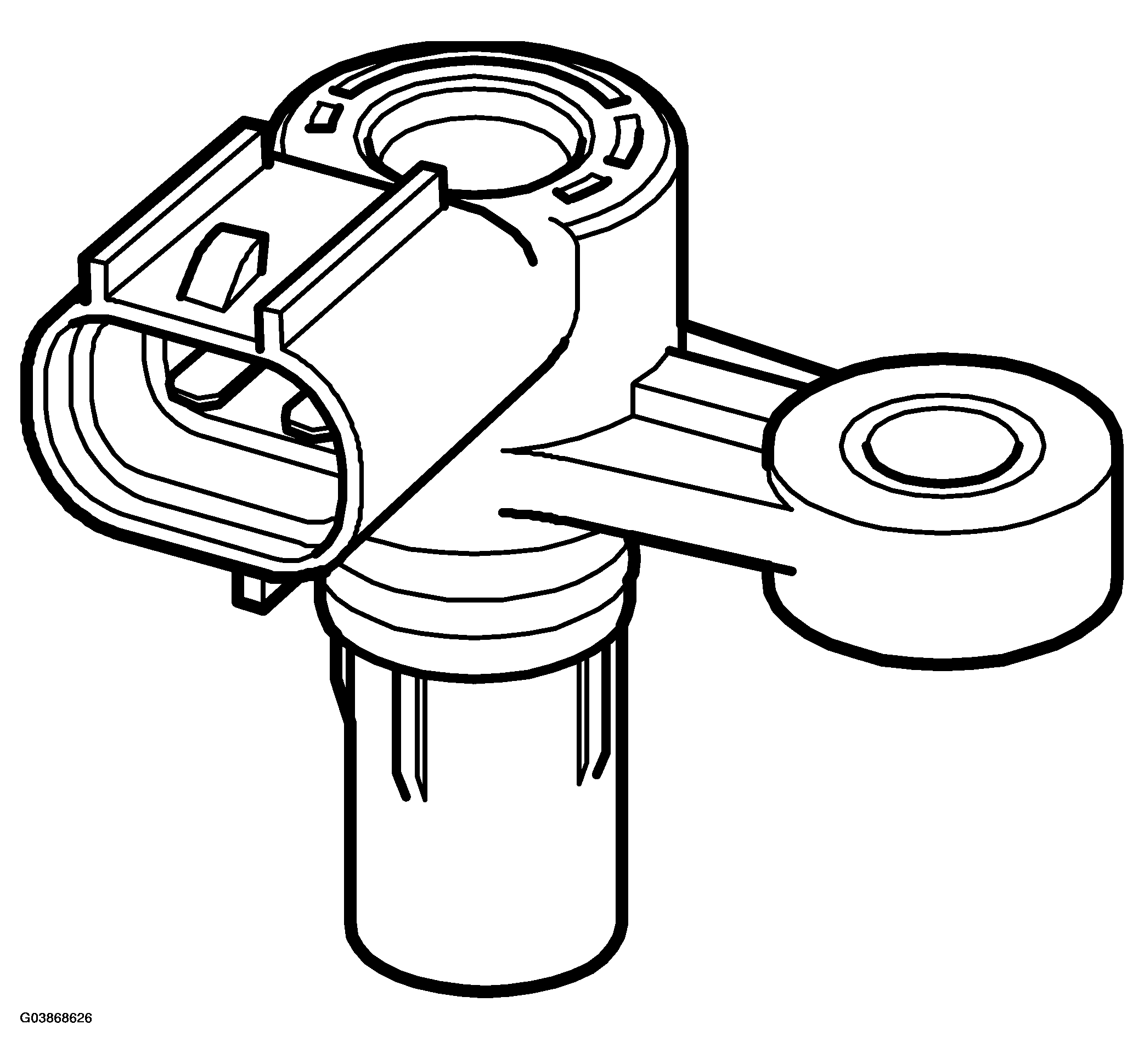

Fig 1: Identifying Sensor, Input/Output Speed
G03868626Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SENSOR TECHNICAL DATA

Location On the transmission casing
Type Hall sensor
Toothed Wheel Number Of Teeth 12
