Sensor, output speed

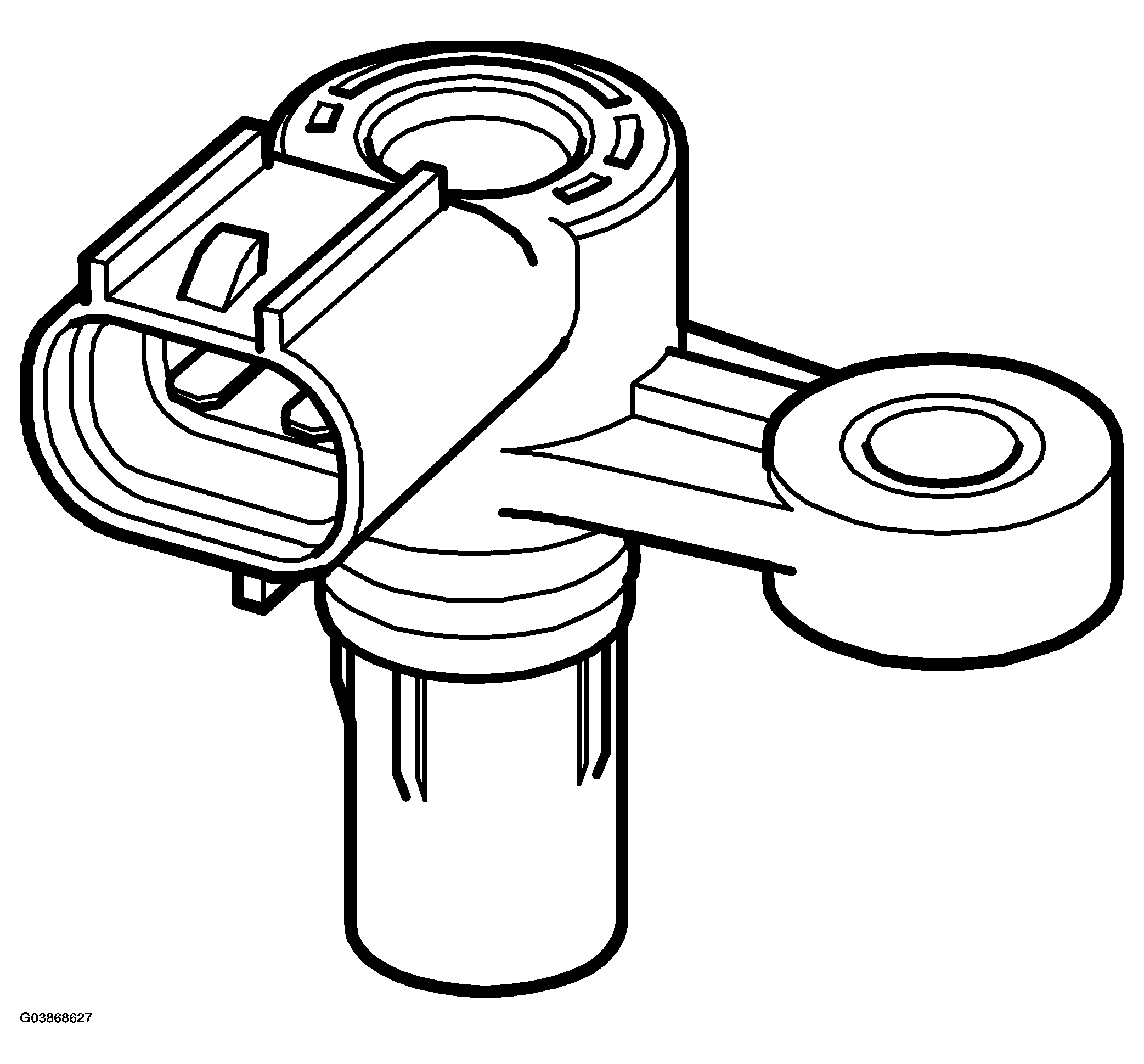

Fig 1: Identifying Output Speed Sensor
G03868627Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SPEED SENSOR TECHNICAL DATA

Location On the transmission casing
Type Hall sensor
Toothed Wheel Number Of Teeth 18
