Control module ground: Notes

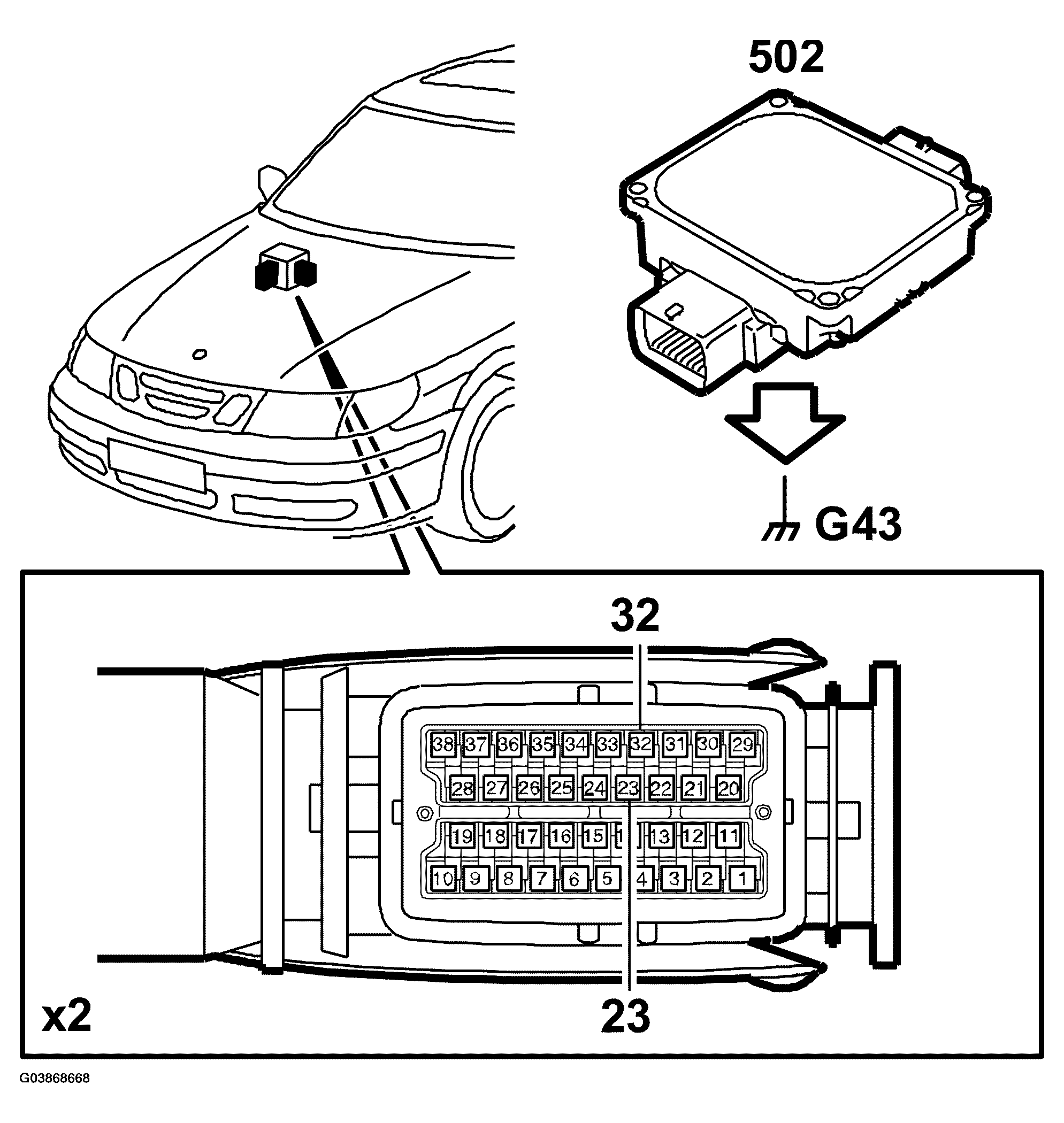

The control module is grounded through pins 32 (A) and 23 (A) to grounding point G43. The grounding points are connected internally.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
