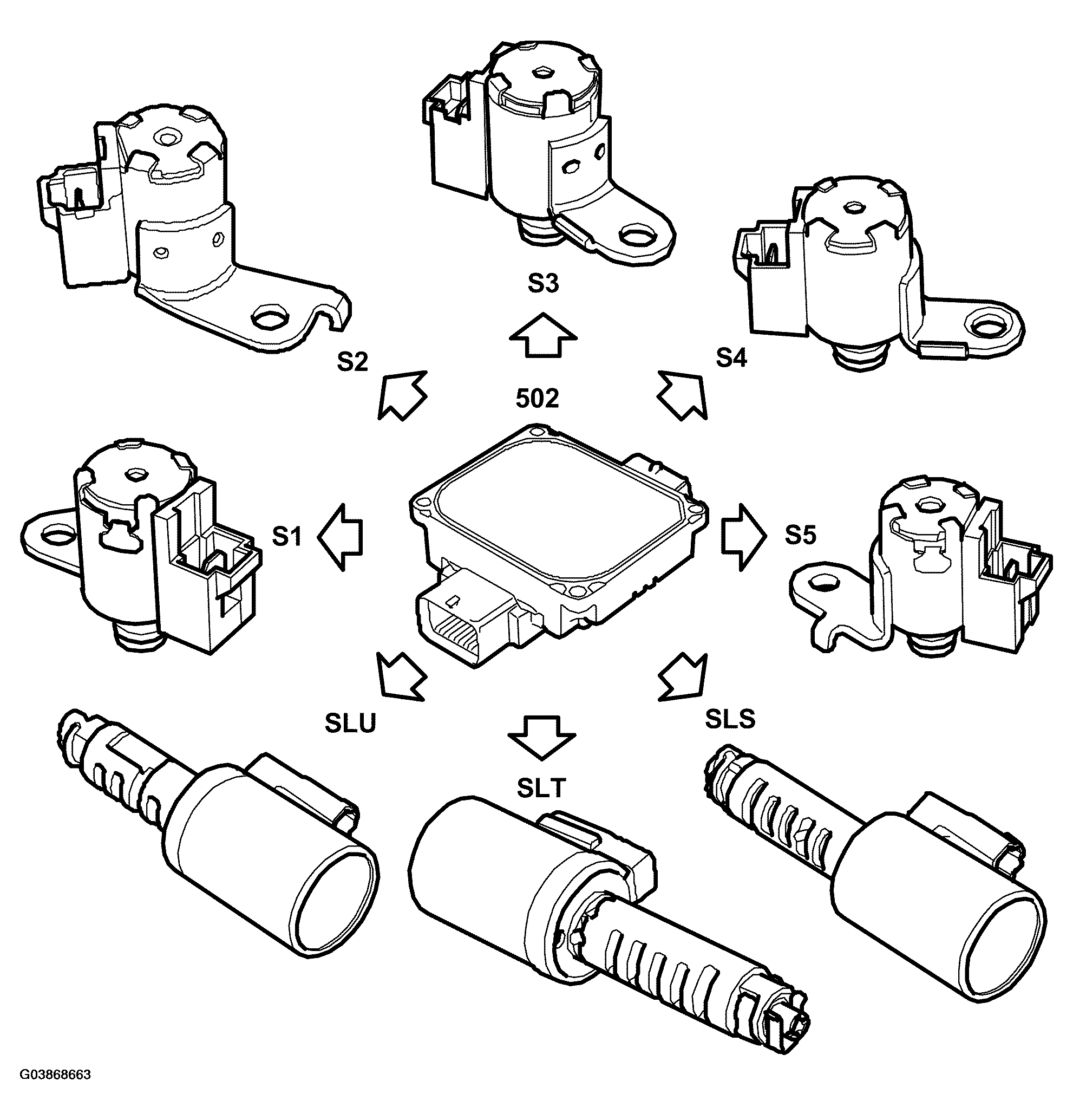

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Solenoid valve S1 for shifting.
- Solenoid valve S2 for shifting.
- Solenoid valve S3 for shifting.
- Solenoid valve S4 for shifting.
- Solenoid valve S5 for shifting.
- Solenoid valve SLU for lock-up.
- Solenoid valve SLT for system pressure.
- Solenoid valve SLS for clutch pressure.
