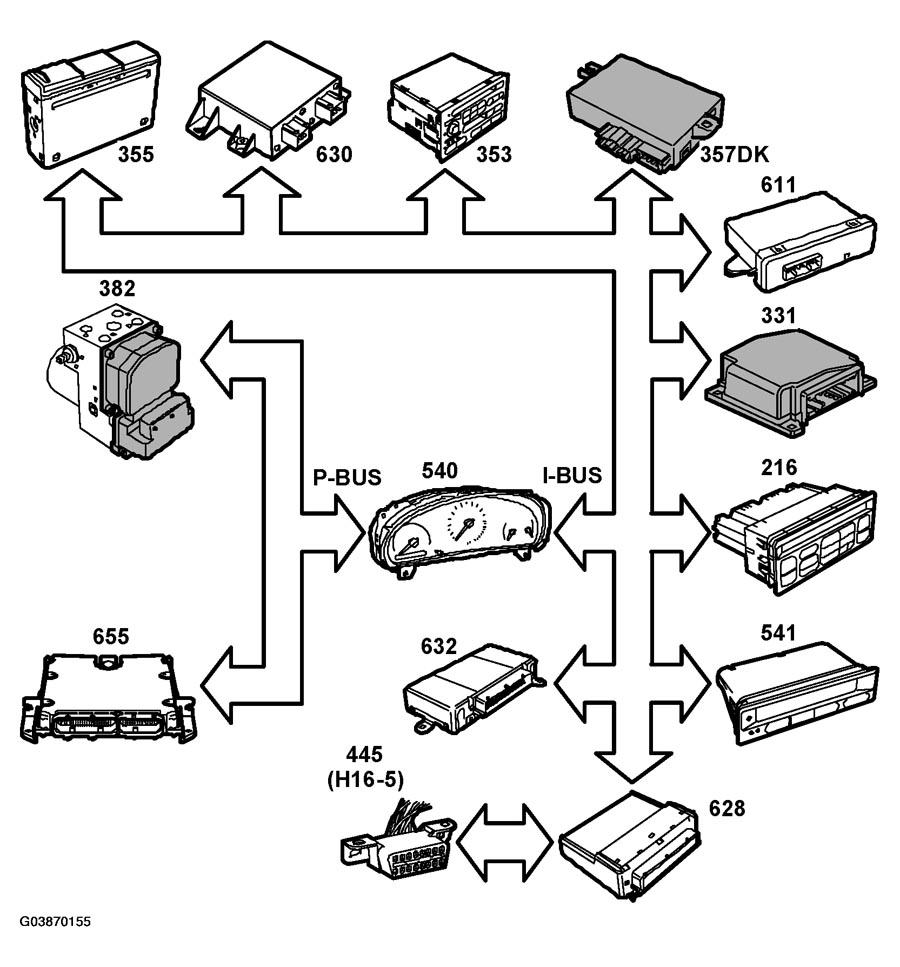

Control Module Outputs, Bus (Diesel)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- A/C (on/off) used by ECM (655)
- A/C Pressure (bar) used by ECM (655)
- Electrical load, used by ECM (655)
- Reverse gear (yes/no), used by PMM (611), ECM (655), SPA (630)
- Marker lights (yes/no) used by SID (541)
- Electrically heated rear window (on/off), used by ACC (216)
- Rear fog light defective (yes/no), used by SID (541)
- Direction indicators LH (on/off), used by MIU (540) and SID (541)
- Direction indicators RH (on/off), used by MIU (540) and SID (541)
- Rear fog light (on/off) used by MIU (540)
- Chime (acoustic information) used by SID (541)
- Ignition +B (on/off) used by Audio (353), TWICE (632)
- Ignition +15 (on/off), used by TWICE (632)
- Ignition +54 (on/off), used by TWICE (632)
- Ignition +50 (on/off) used by ACC (216), TWICE (632)
- VIN (chassis number), used by Audio (353)
- Radiator fan (on/off)
- Battery voltage (6-16V)
- Diagnostics communication
