Technical Description
>>
Windscreen Wipers With Rain Sensor
>>
Description of operation
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Description of operation: Notes

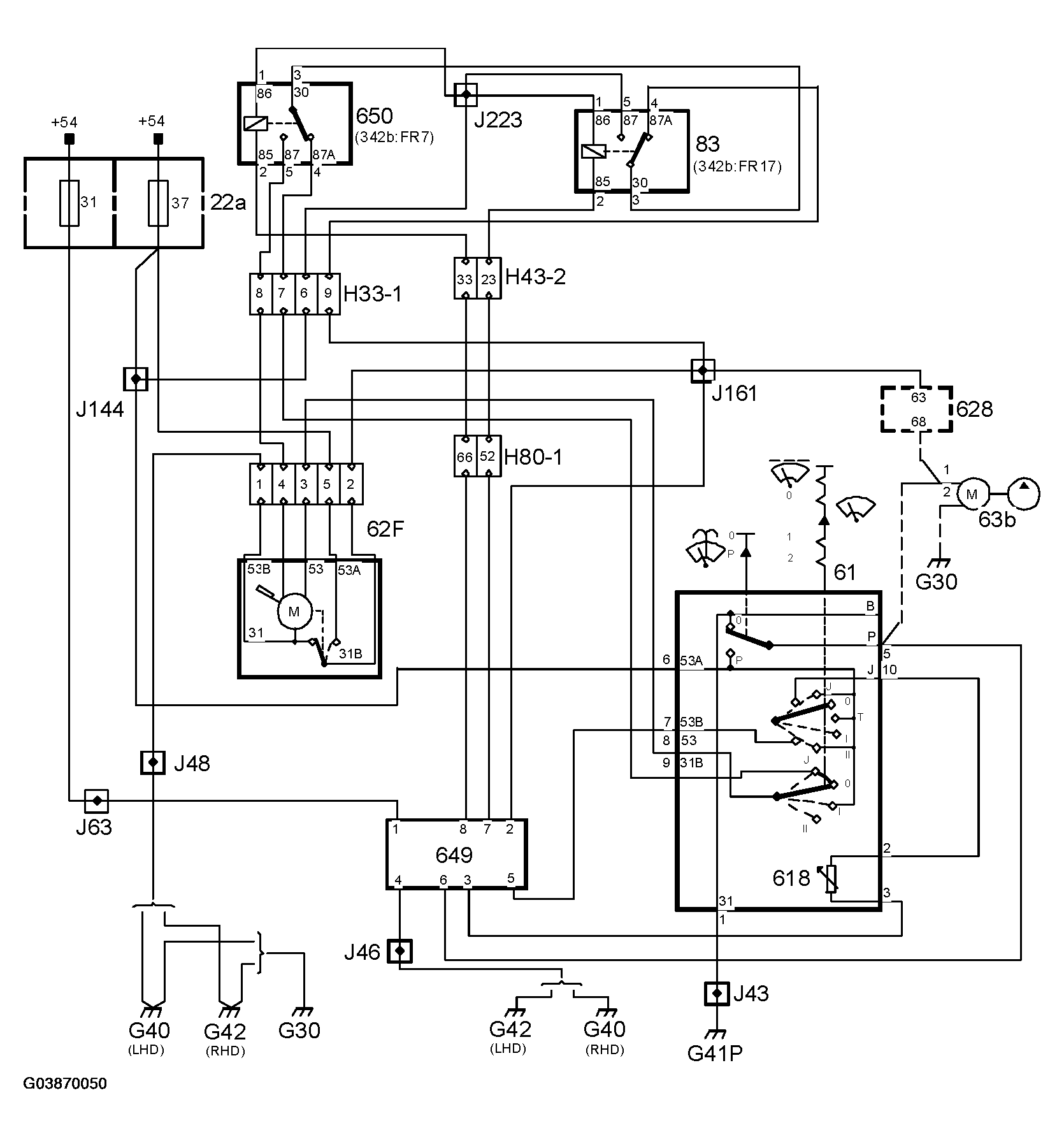

Fig 1: Windscreen Wiper Motor Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
