To Remove

  1. Open the data link connector cover.

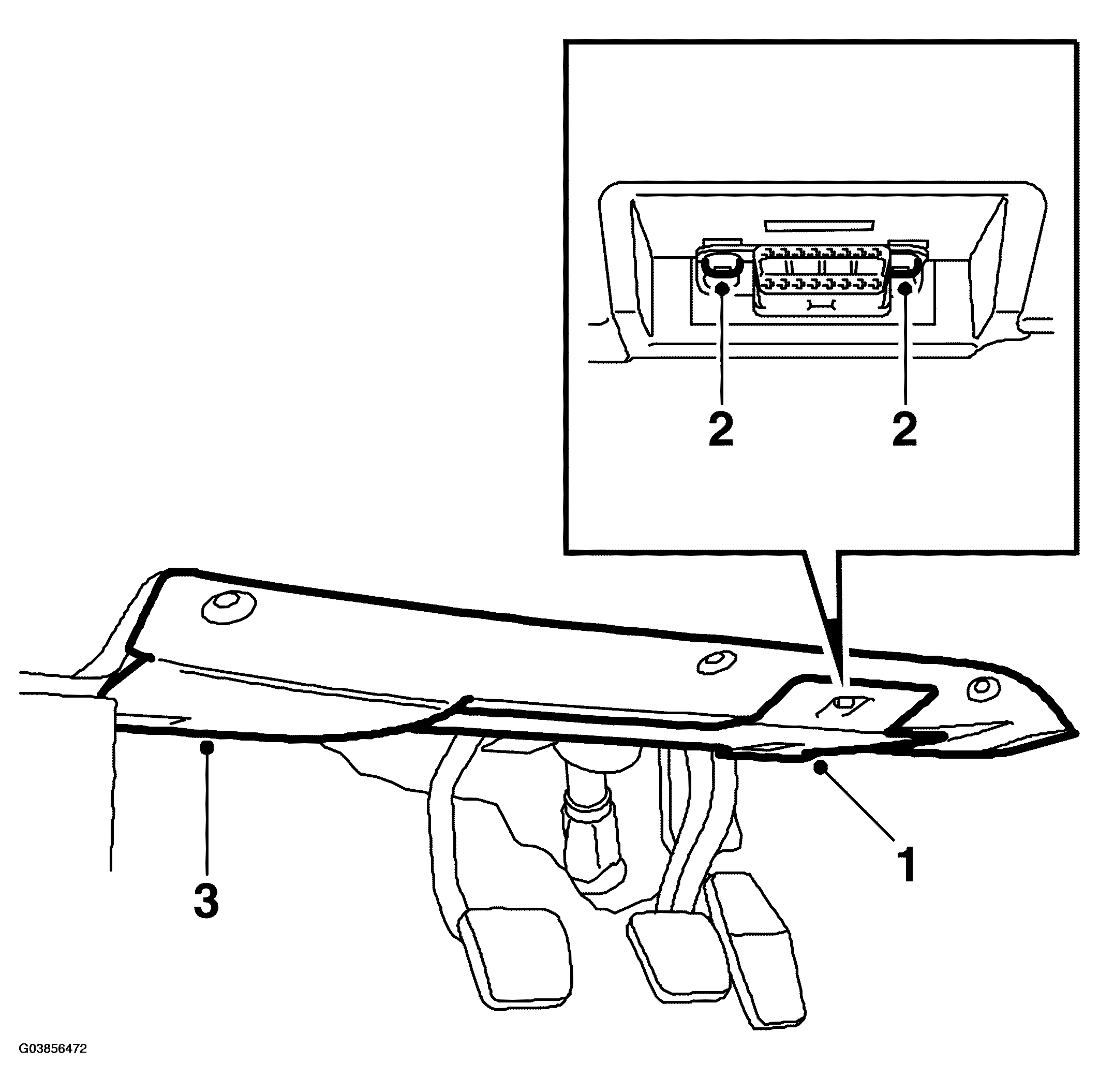

    Fig 1: Illustration For Steps 1-3
    G03856472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screws in the data link connector.
  3. Remove the screws and clip securing the lower panel with air duct.
  4. Unplug the connector for the floor lighting.

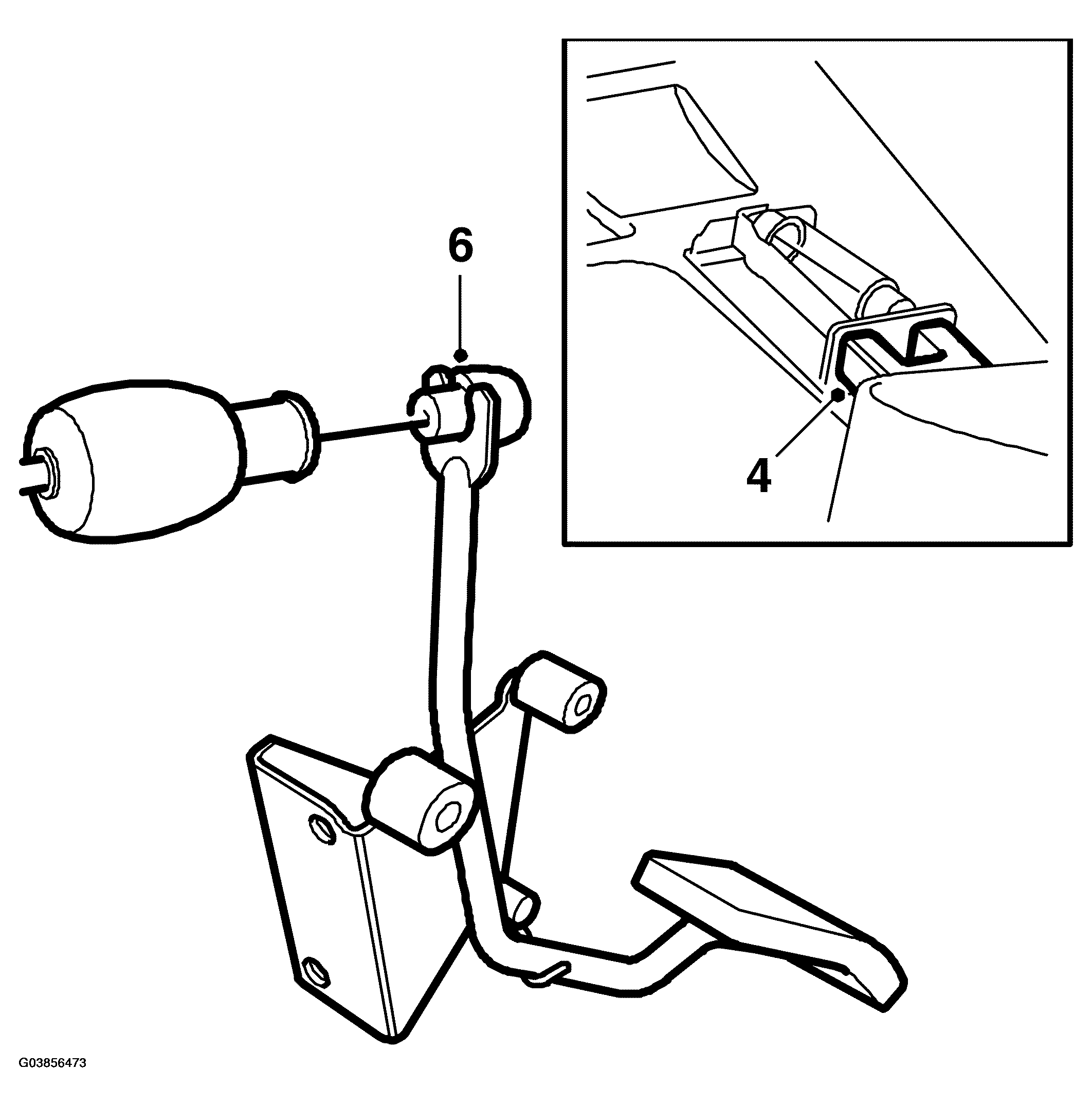

    Fig 2: Illustration For Steps 4 And 6
    G03856473Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift out the lower panel.
  6. Disconnect the throttle cable from the throttle pedal by sliding back the bush and removing it and the cable.
  7. Remove the engine cover by releasing the holders one at a time starting at the oil filler. Remove the cover above the throttle valve.

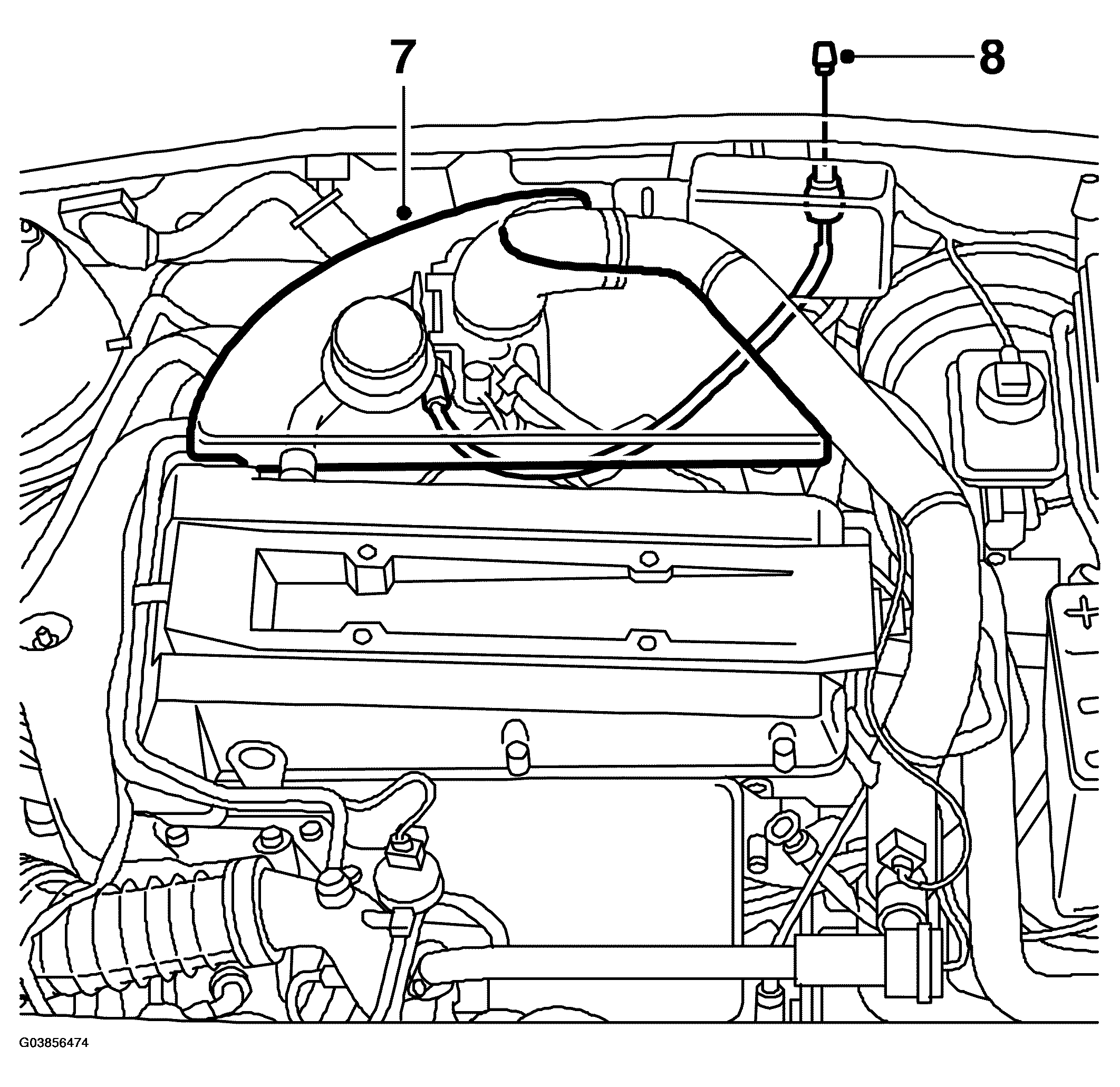

    Fig 3: Illustration For Steps 7 And 8
    G03856474Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Withdraw the cable and its sheathing through the rubber bush in the bulkhead.
  9. Disconnect the throttle cable from the throttle body.

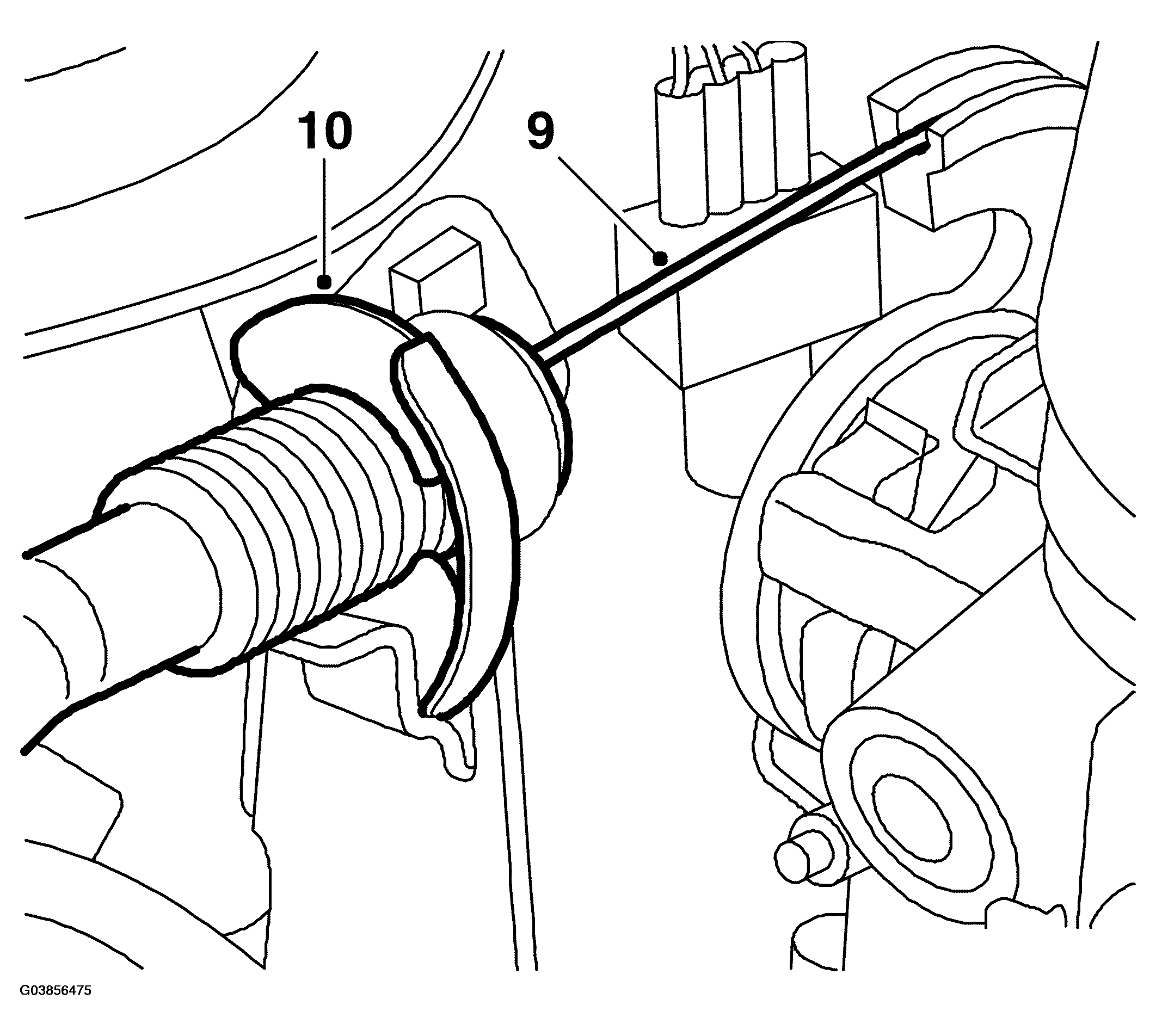

    Fig 4: Illustration For Steps 9 And 10
    G03856475Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Turn the lock clip for the throttle cable adjuster and then pull out the sheathing.
