P0327: Knock Sensor Circuit - Low Input (Bank 1): Notes

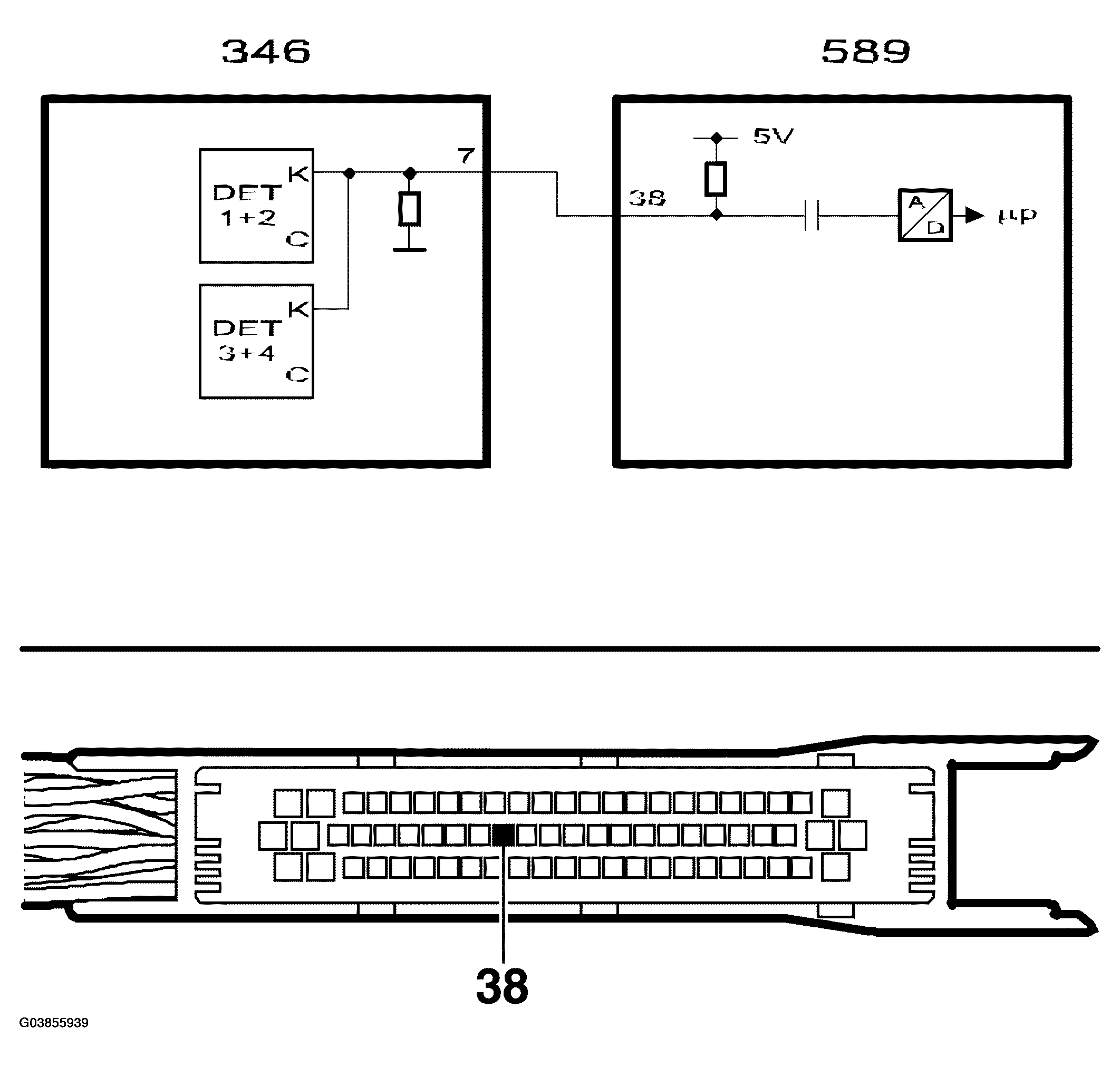

Fig 1: Knock Sensor - Circuit Diagram (Low Input, Bank 1)
G03855939Courtesy of SAAB-SCANIA OF AMERICA, INC.
