P0336: Crankshaft Position Sensor Circuit - Performance Problem: Notes

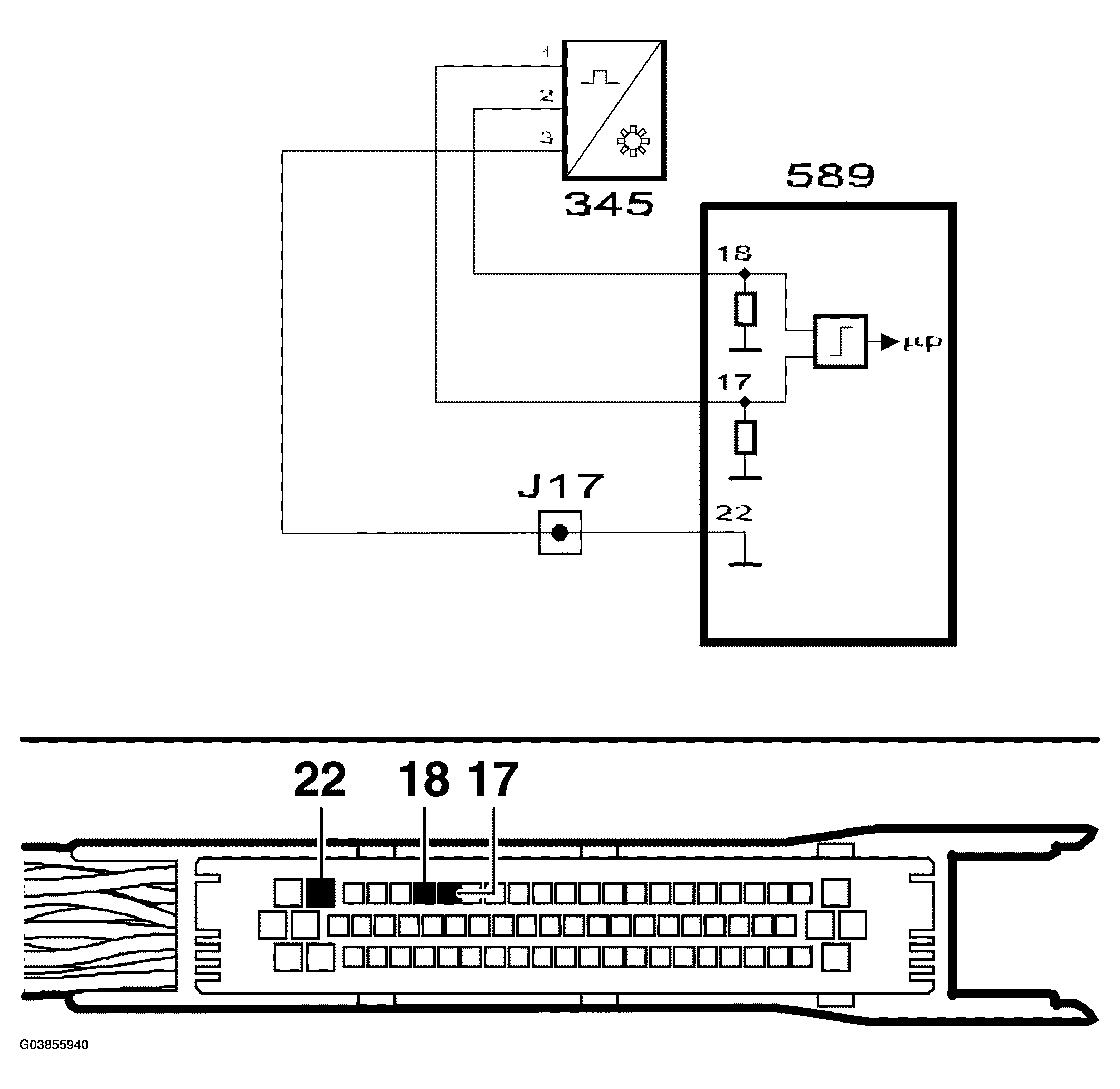

Fig 1: Crankshaft Position Sensor Circuit - Circuit Diagram (Performance Problem)
G03855940Courtesy of SAAB-SCANIA OF AMERICA, INC.
