P1132: O2S Switch Point - Rich (Sensor 1): Notes

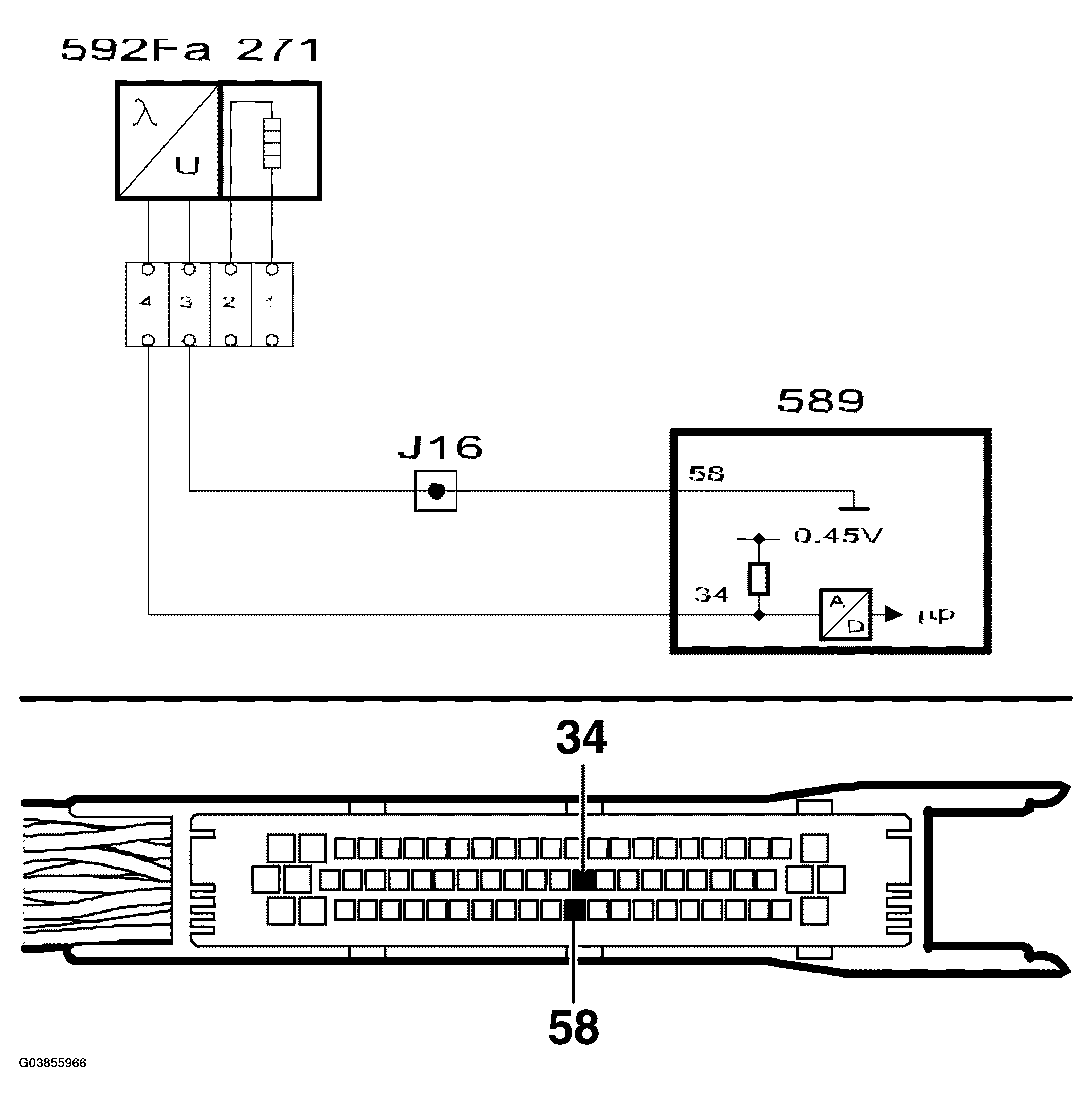

Fig 1: Sensor 1 O2S Switch Point - Circuit Diagram (Rich)
G03855966Courtesy of SAAB-SCANIA OF AMERICA, INC.
