Main Relay (229)

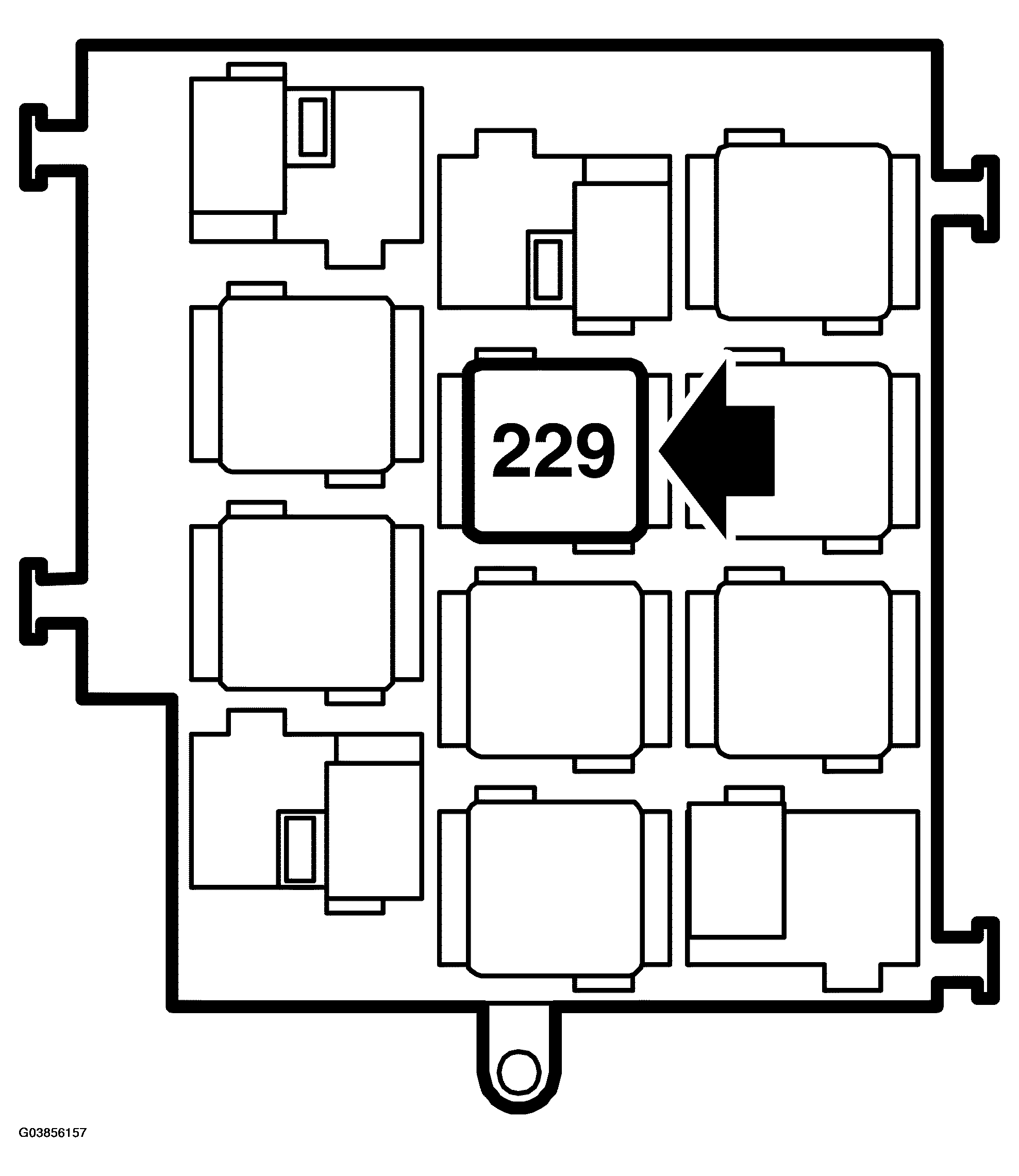

Fig 1: Identifying Main Relay
G03856157Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN RELAY - TECHNICAL DATA

Location   On main relay board in dashboard
Resistance, coil at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
