P0140: O2S Circuit - No Activity Detected (Sensor 2): Notes

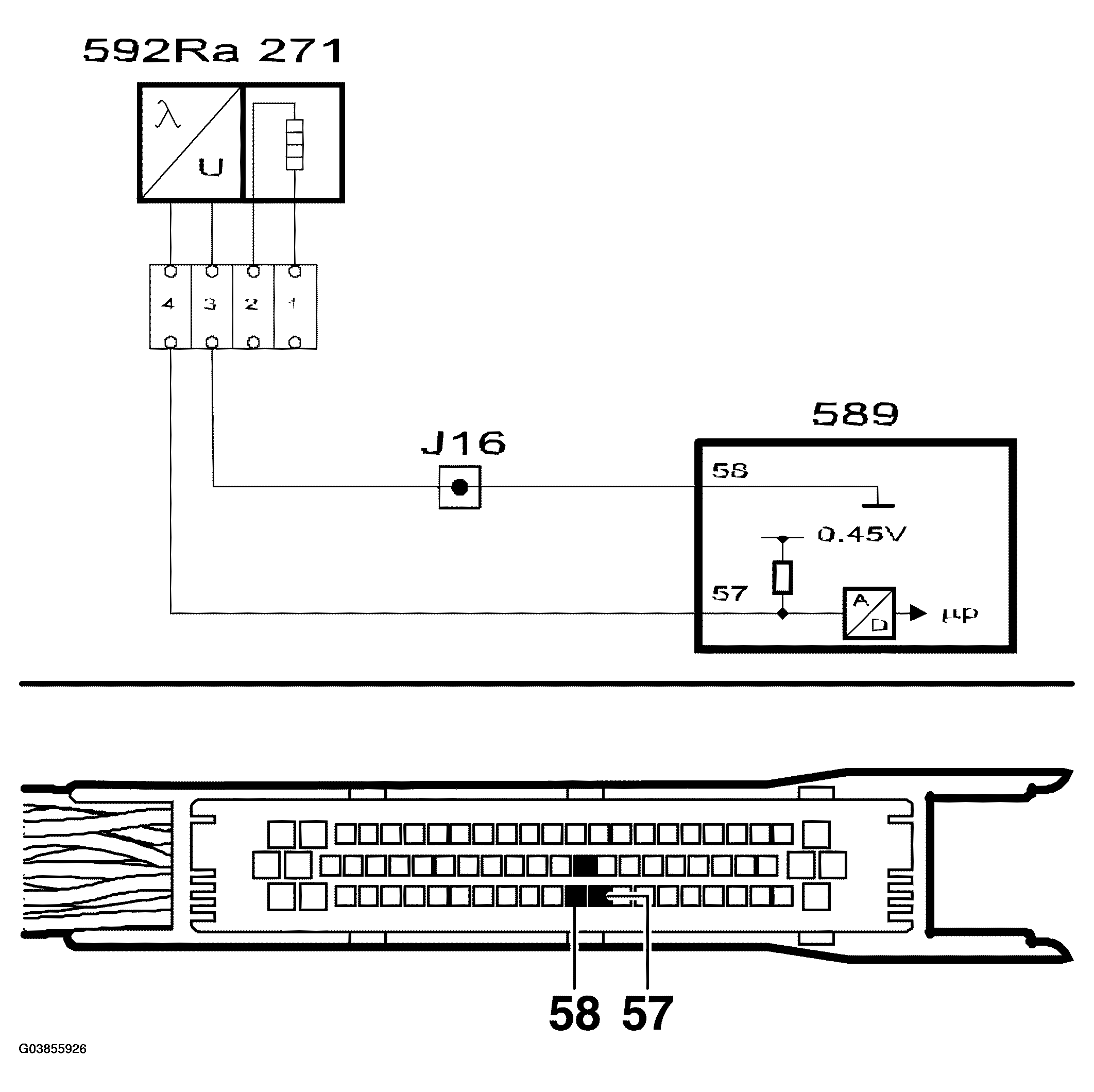

Fig 1: Sensor 2 O2S Circuit - Circuit Diagram (No Activity Detected)
G03855926Courtesy of SAAB-SCANIA OF AMERICA, INC.
