P1491: EVAP Tank Pressure Sensor - Performance Problem & Malfunctioning Fuel Level Sensor: Notes

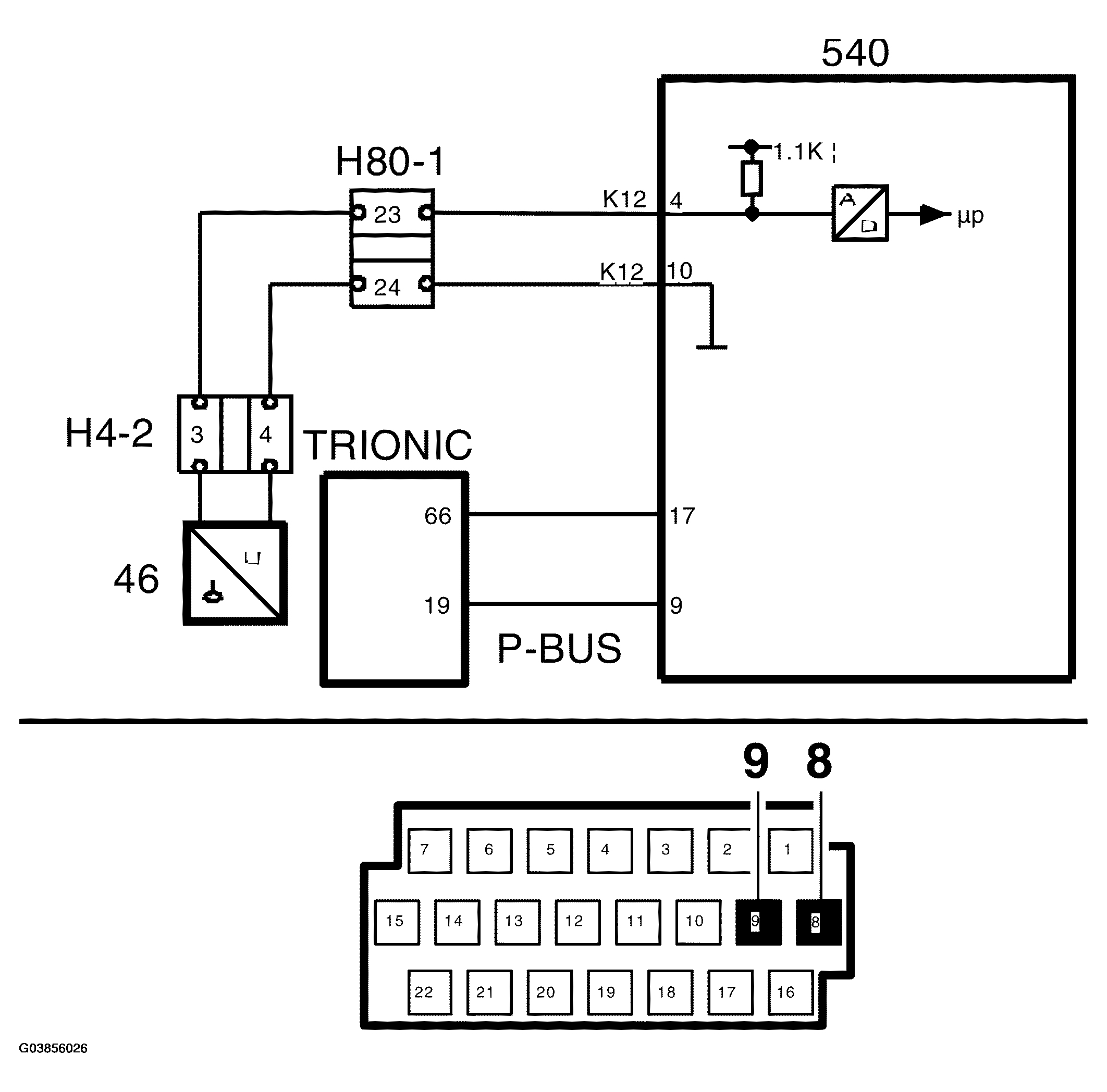

Fig 1: EVAP Tank Pressure Sensor - Circuit Diagram (Performance Problem And Malfunctioning Fuel Level Sensor)
G03856026Courtesy of SAAB-SCANIA OF AMERICA, INC.
