To remove

  1. Raise the car.

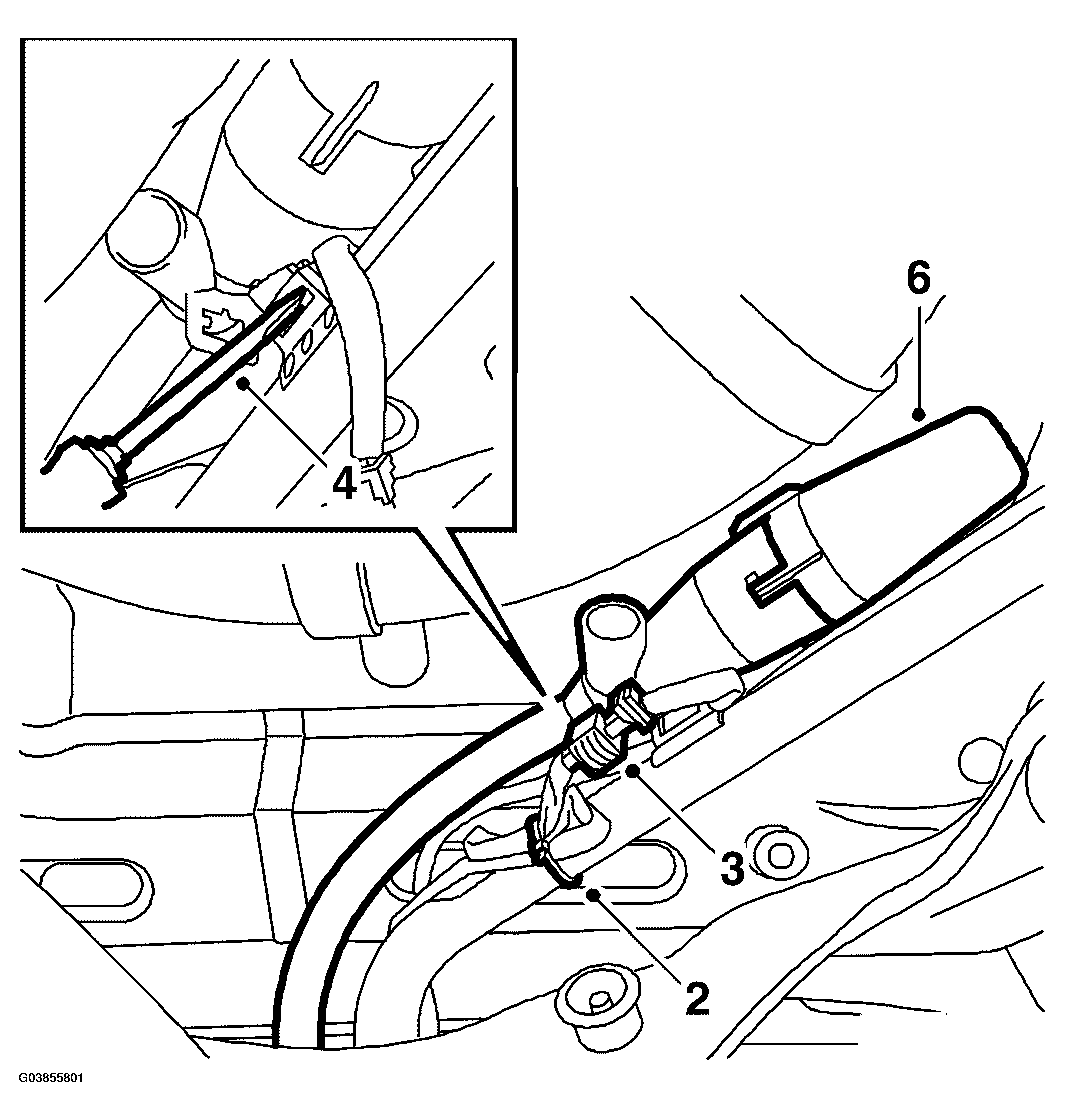

    Fig 1: Illustration For Steps 2-4, 6
    G03855801Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Cut the cable tie.
  3. Unplug and detach the connector to the purge device.
  4. Detach the purge device from the filler pipe bracket with a screwdriver.
  5. Clean the purge device.
  6. Remove the top cover over the shut-off valve.
  7. Unplug the connector from the shut-off valve and remove the washer.

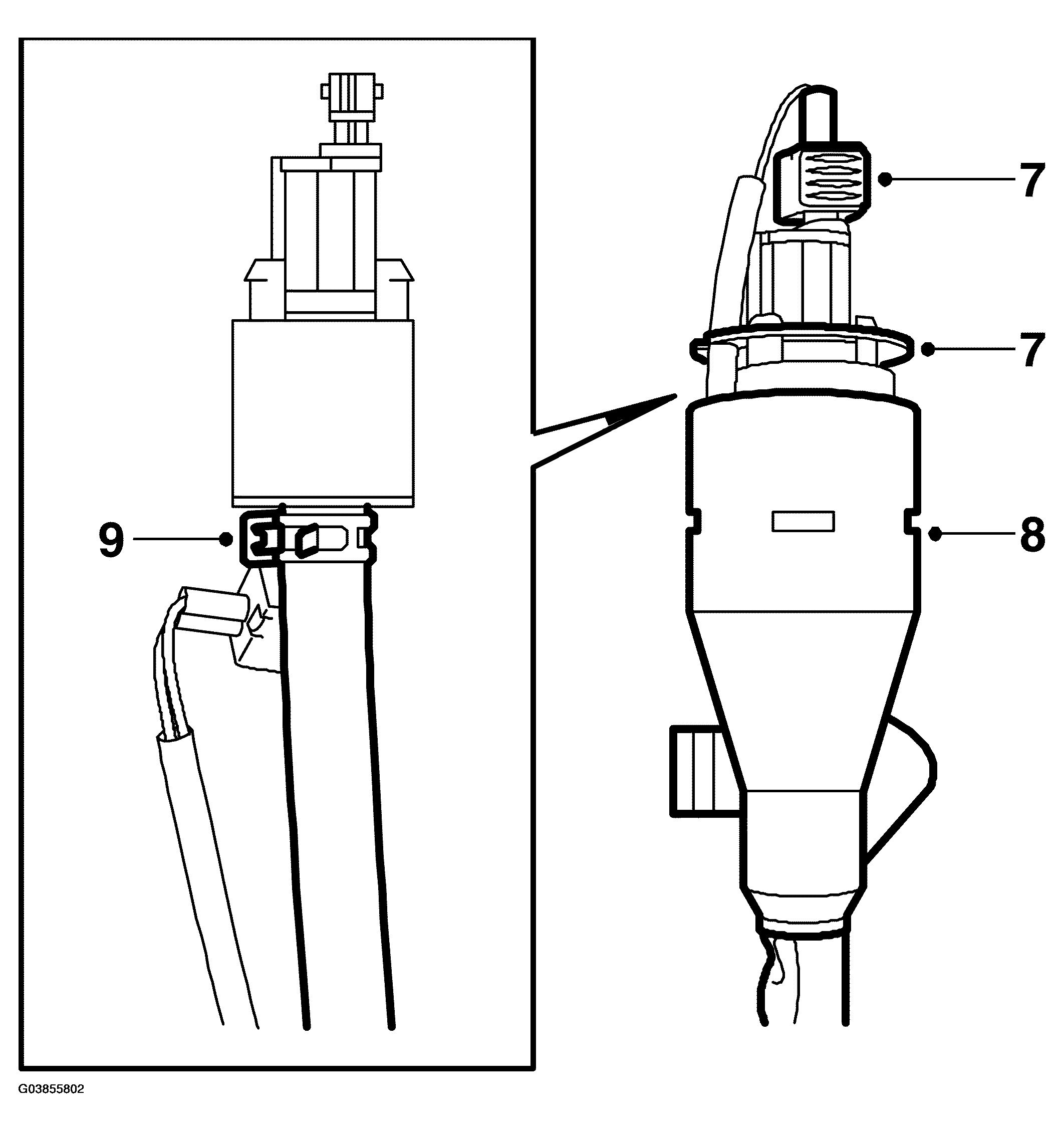

    Fig 2: Illustration For Steps 7-9
    G03855802Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Move the cover along the hose so that the hose clip is accessible.
  9. Remove the valve by undoing its hose connection.
