To Remove

  1. Remove the upper engine cover.

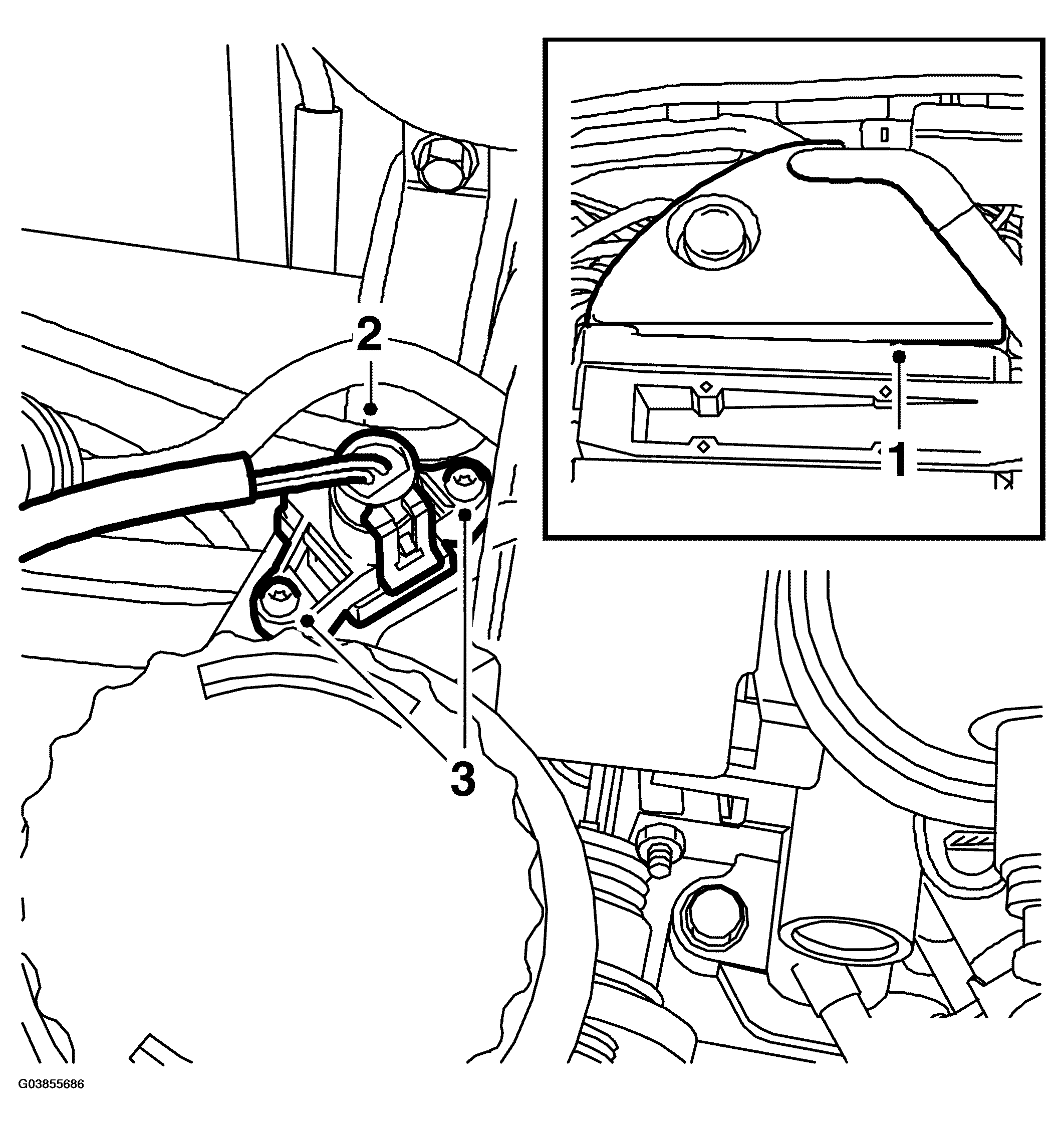

    Fig 1: Illustration For Steps 1-3
    G03855686Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector.
  3. Remove the sensor.
